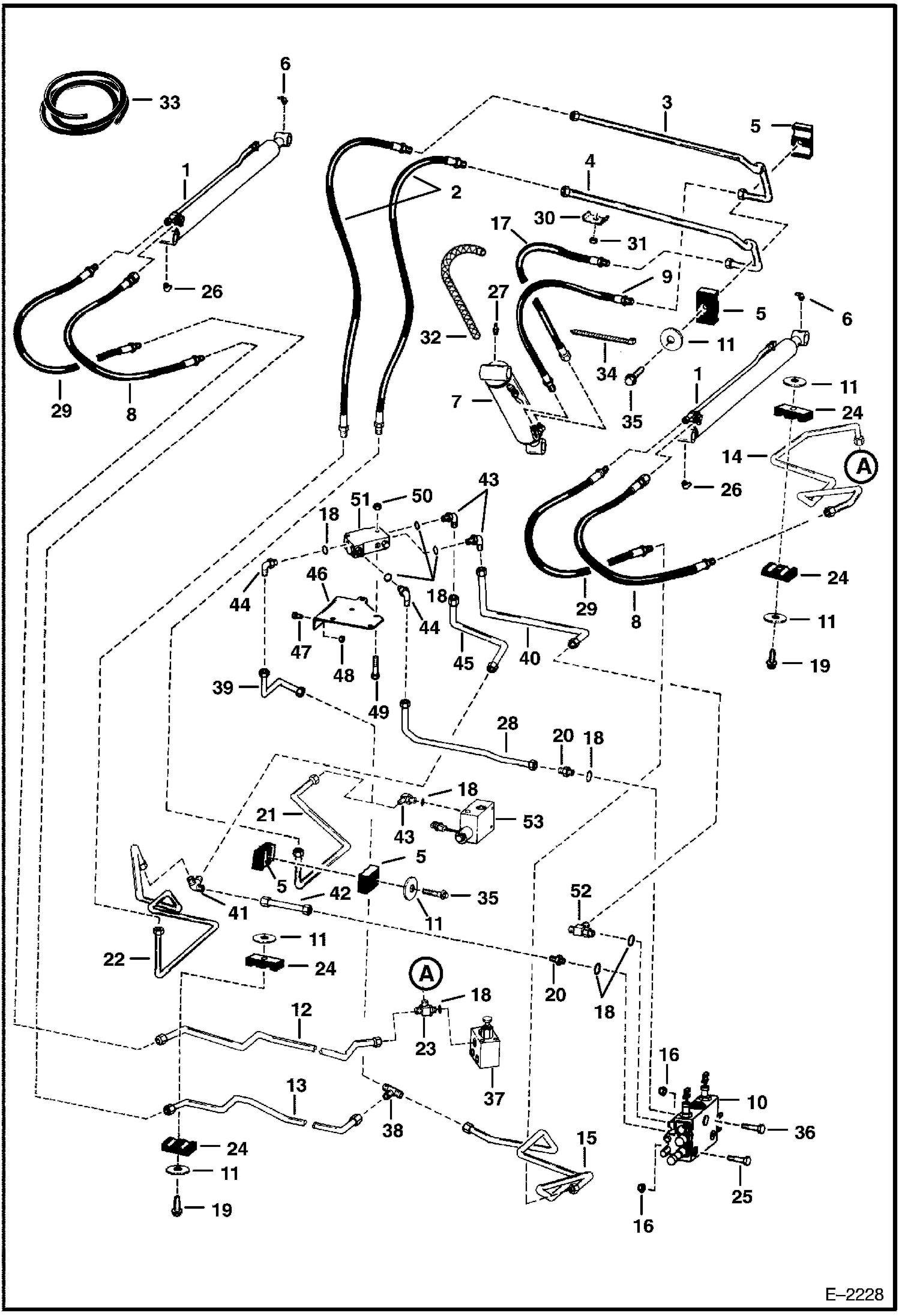

Запчасти Bobcat 700s HYDRAULIC CIRCUITRY (W/Bucket Positioning Valve) (S/N 512727420 & Below, 508694508 & Below, 511476001 & Above) HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ TS1097 LIFT

2

6577669

HOSE

3

6727840

TUBE Was 6703608 - A

4

6727841

TUBE Was 6703609 - A

5

6701893

CLAMP

6

12H15

FITTING, GREASE 5

7

See Illustration TILT CYLINDER/ TS1127 TILT

8

6577671

HOSE, HYD ASSY

9

6704335

HOSE

10

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2229

11

872229

WASHER

12

6706523

TUBE

13

6704836

TUBE

14

6706522

TUBE

15

6706526

TUBE

16

85D5

NUT 5

17

6704336

HOSE

18

79K10

O RING 10

19

84G3732

BOLT

20

15K7

FITTING W/Ref. 18

21

6706528

TUBE

22

6706527

TUBE

23

6578183

TEE W/Ref. 18

24

6701892

CLAMP

25

17C532

BOLT 5

26

11H15

GREASE FITTING

27

10H25

FITTING, GREASE 5

28

6704837

TUBE

29

6718954

HOSE Was 6578808 - A

30

6502203

CLAMP

31

59D6

NUT

32

COVER NLA - 18'' (457,2 mm) long - Order Ref. 33

33

6656155

HOSE COVER bulk - sold per foot

34

6610510

TIE

35

84G3724

BOLT

36

17C540

BOLT

37

6664850

VALVE See Illustration TILT LOCK VALVE/ C3387 See Illustration LIFT & TILT CONTROL SYSTEM/ E2225 - lift lock

38

10K6

FITTING

39

6705068

TUBE

40

6704840

TUBE

41

6705070

TEE

42

6705069

TUBE

43

17K7

ELBOW W/Ref. 18

44

784568

ELBOW W/Ref. 18 - Was 6634982 - A

45

6704839

TUBE

46

6704833

BRACKET

47

35C412

BOLT

48

55D4

NUT

49

35C540

BOLT Was 35C000536B - B

50

57D5

NUT

51

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 NLA - Order 6673959 valve - If loader is not equipped with an on/off switch, also order 6647784 plug, 79K8 O-ring, 6647785 spring, & 6647783 loa

52

21K7

TEE W/Ref. 18

53

6664849

VALVE See Illustration LIFT LOCK VALVE/ C3386 See Illustration LIFT & TILT CONTROL SYSTEM/ E2225 TILT LOCK
