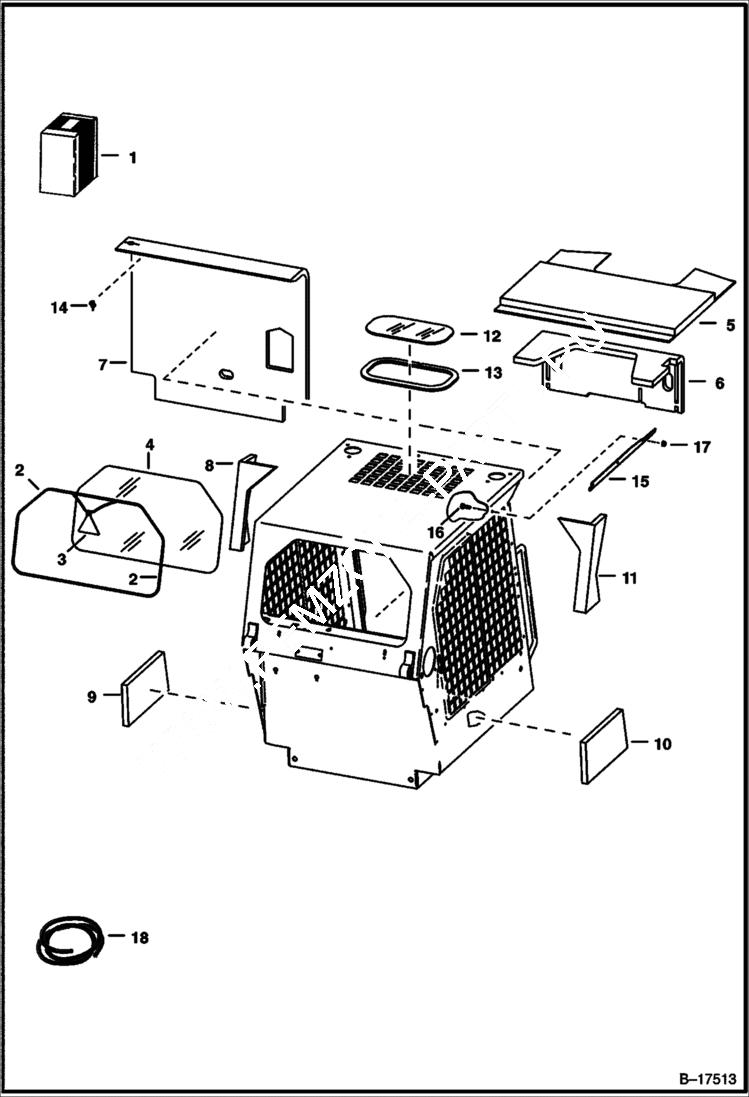

Запчасти Bobcat 700s SOUND OPTION (90 Decibels) ACCESSORIES & OPTIONS

1

SOUND KIT SALES - Ref. 18 - 17

2

EXTRUSION NLA - 81.5 in. (2070 mm) long - Order Ref. 18

2

CORD NLA - 81.5 in. (2070 mm) long - Order Ref. 18 - Also Order Ref. 3 (6731478 exit tag)

3

6731478

EXIT TAG Was 6559515 - A

4

WIND.REAR NLA - Order 6729730 window - Also Order 2134mm (84'') of 6675387 seal and 6554149 cord - Was 6701651 - A

5

6706155

INSULATION cab top

6

6706277

INSULATION control panel

7

6708682

INSULATION cab back

8

6715098

INSULATION cab back - L.H. - Was 6706156 - A

9

6703451

INSULATION cab back

10

6703452

INSULATION cab back

11

6715097

INSULATION cab back - R.H. - Was 6706157 - A

12

6705735

WINDOW top

13

6664351

SEAL Use W/cab headliner

13

6665012

SEAL Use W/O cab headliner

14

6664310

CLIP

15

6703159

TRACK RH

15

6703160

TRACK LH

16

35C410

BOLT 5

17

83D4

NUT 10

18

6665568

EXTRUSION bulk - sold per foot - Was 6658352 - B

18

6554149

CORD, BULK/FT bulk - sold per foot
