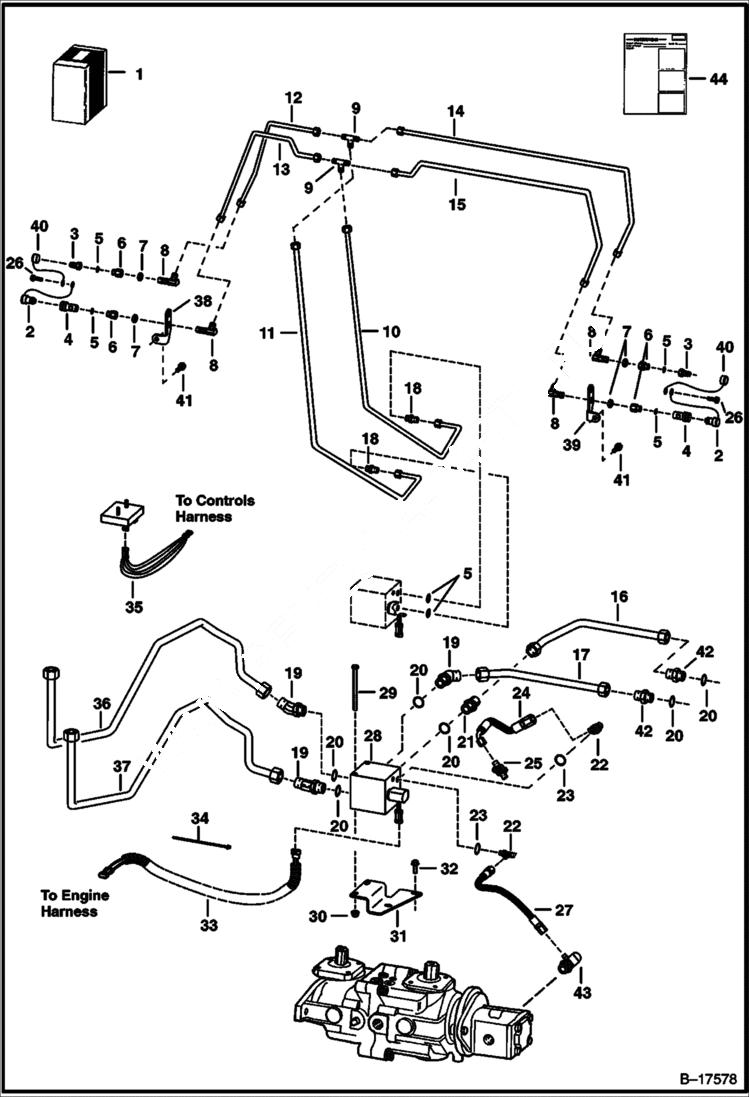

Запчасти Bobcat 700s REAR AUXILIARY ACCESSORIES & OPTIONS

1

KIT SALES - Ref. 2 - 40 & 44

2

6630487

PLUG

3

6648969

QUICK COUPLER male

4

6648967

QUICK COUPLER female

4

6655795

SEAL KIT

5

79K6

O RING 10

6

6706633

ADAPTER W/Ref. 5

7

86F5

NUT

8

88F5

ELBOW W/Ref. 5

9

10K5

TEE

10

6707873

TUBE

11

6707874

TUBE

12

6707870

TUBE

13

6707869

TUBE

14

6707872

TUBE

15

6707871

TUBE

16

6706531

TUBE

17

6706530

TUBE

18

15K5

FITTING W/Ref. 5

19

18K8

FTG W/Ref. 20

20

79K12

O RING 10

21

15K8

FITTING W/Ref. 20

22

17K3

ELBOW W/Ref. 23

23

79K4

O RING 10

24

6706786

HOSE

25

6578209

TEE cross

26

84G3712

BOLT 5 existing - relocate from transmission cover

27

6707411

HOSE

28

6649686

VALVE See Illustration REAR AUXILIARY VALVE/ B12959

29

17C680

BOLT

30

83D6

NUT 5

31

6706548

MOUNT

32

84G3716

SCREW 5

33

6704203

HARNESS

34

6610510

TIE

35

6704114

HARNESS

36

6707889

TUBE

37

6710871

TUBE See Illustration AUXILIARY HYDRAULICS/ B17532 Connects to Ref. 1 - Was 6707888 - A

38

6707822

MOUNT

39

6707823

MOUNT

40

6630486

CAP

41

84G3712

BOLT 5

42

15K8

FITTING existing - W/Ref. 20

43

6704693

TEE See Illustration HYDROSTATIC CIRCUITRY/ E2164 EXISTING - CROSS

44

6724061

INSTRUCTIONS
