Запчасти Bobcat 700s SEAT & SEAT BAR MAIN FRAME

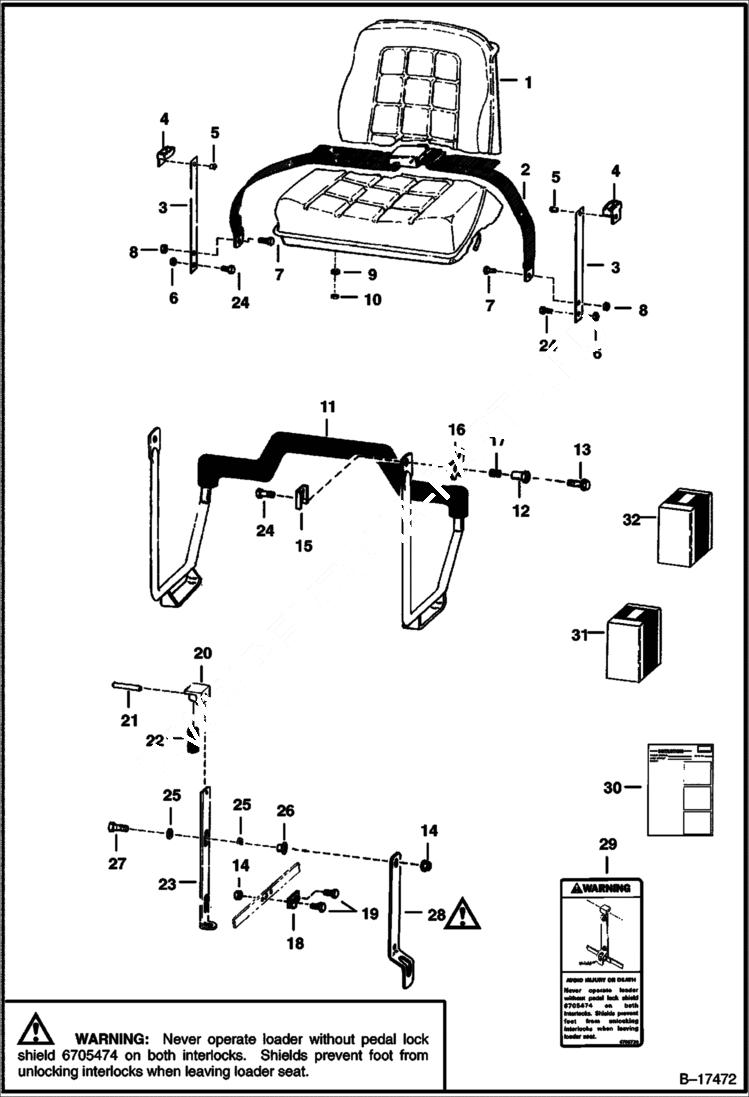

Схема запчастей Bobcat 700s - SEAT & SEAT BAR MAIN FRAME

Артикул

Название

Примечание

Количество

1

SEAT See Illustration SEAT/ B14720

2

SEAT BELT NLA - Order Ref. 32 - Was 6564774 - A

2

SEAT BELT NLA - Order 6675074 seat belt & (2) of 6725373 spring plate - Was 6667875 - A

2

SEAT BELT NLA - W/guides - Order 6675074 seat belt & (2) of 6725373 spring plate - Was 6725403 - A

3

GUIDE ASSY. NLA - W/Ref. 4 & 5 - 13.75'' (349,25 mm) long - Use W/Ref. 2 (NLA/6564774 Seat Belt) - Was 6565354 - A

3

SEAT BELT NLA - W/Ref. 4 & 5 - 12.25'' (311,2 mm) long - Use W/Ref. 2 (NLA/6667875 Seat Belt) - Order 6711908 Spring Plate, Ref. 4 & (2) of Ref. 5 - Was 6711907 - A

3

6711908

SPRING PLATE Use W/Ref. 2 (6725403 Seat Belt)

4

GUIDE NLA - Order 6703703 - Was 6565355

5

6630207

RIVET 5

6

85D6

NUT, 5

7

17C716

BOLT

8

85D7

NUT

9

4E5

WASHER

10

61D5

NUT

11

6706324

SEAT BAR Was 6703301 - A

12

6568742

BUSHING

13

35C608

BOLT

14

83D6

NUT 5

15

6563557

WASHER

16

6563313

RETAINER

17

6704453

SPRING Was 6578252 - C

18

6563151

LINK

19

17C616

BOLT 5

20

6563148

BLOCK, SPRING

21

14J2512

PIN 5

22

6702430

SPRING, COMPRESSION Was 6563149 - C

23

6578150

LOCK Was 6563150 - A

24

17C612

BOLT 5

25

6700170

WASHER plastic - Was 6563152 - D

26

6559479

NUT

27

6705489

BOLT

28

6705474

LOCK SHIELD Never operate loader without pedal lock shield on both interlocks ... SEE WARNING PREVIOUS PAGE

29

6705720

DECAL Was 6705488 - D

30

6722392

INSTRUCTIONS For Ref. 28

31

6706796

KIT See Illustration SEAT BAR KIT/ C3341 gas spring seat bar

32

KIT NLA - seat belt - W/Ref. 2 & 3 - Order Ref. 2 (6725403 Seat Belt) - Was 6713061 - A
