Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

6701897

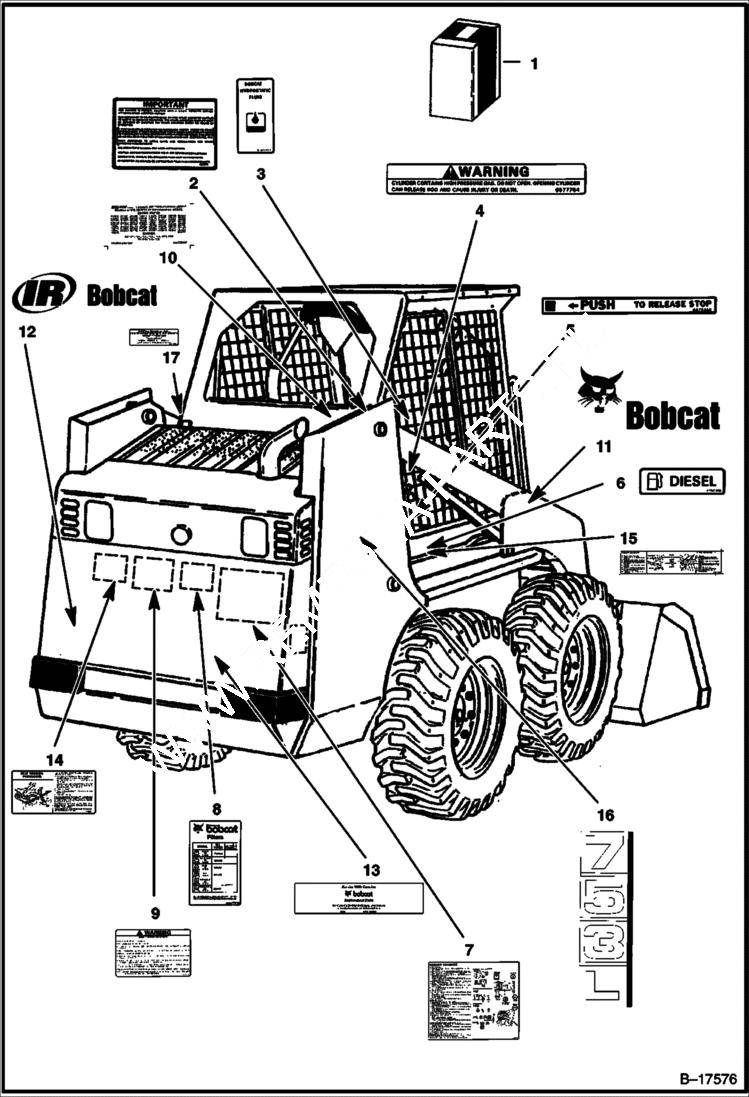

KIT See Illustration DECALS/ B17575 DECAL - REF. 2-15 ON THIS PAGE & REF. 2-16

2

6560573

DECAL spark arrestor

3

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

4

6577754

DECAL, WARNING 5 gas spring

5

6578368

DECAL, OPERATION push to release stop

6

6700388

DECAL diesel

7

6708212

DECAL service - Was 6578218 - A

8

6709781

DECAL filters - Was 6700237 - A

9

6579511

DECAL warning

10

DECAL NLA - patent - Was 6557224 - C

11

6727309

DECAL, LOGO RH RH - Was 6702826 - A

11

6727308

DECAL, LOGO BOBCAT LH - W/Bobcat head - Was 6702827 - A

12

DECAL NLA - Bobcat Logo - Was 6727307 - A

13

6565200

DECAL, FILTER

14

6705220

DECAL belt tension - for fixed idler

14

6709030

DECAL belt tension - spring loaded idler - Was 6711905 - B,D

15

6706558

DECAL, OPERATION lift arm support

16

6706851

DECAL model no. - 753L - R.H. - Not in Kit

17

6708929

DECAL, COOLANT propylene glycol
