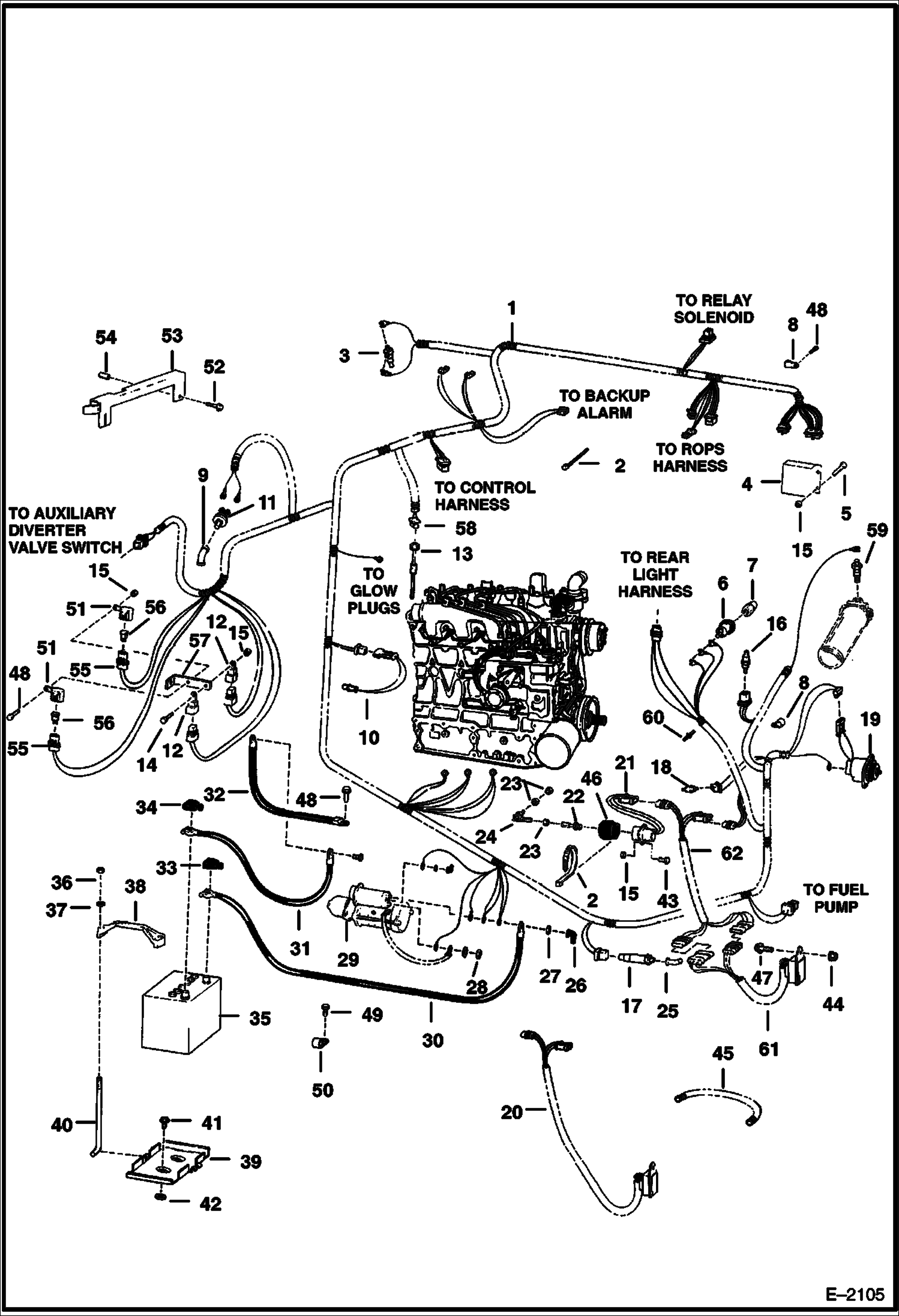

Запчасти Bobcat 700s ENGINE ELECTRICAL CIRCUITRY (W/B.O.S.S. Option) ELECTRICAL SYSTEM

1

6705751

HARNESS, ENG engine - W/Ref. 51, 55 & 56

2

6610510

TIE

3

6648326

SWITCH coolant level

4

BOSS NLA - initialized - Order 6666916 BOSS - Was 6661214 - A

4

6666916

BOSS not initialized - Was 6722444 - A

4

6666918

BOSS backup - Was 6661110 - A

5

10C412

BOLT

6

6661518

SENSOR hyd. chg. press. - Was 6665033 - B,D

7

6563922

SNUBBER W/Filter

7

6563920

FILTER

8

30H50

CLIP

9

6725502

ELBOW Was 23F000001B - A

10

6684037

SENSOR r.p.m. - Was 6679853 - A

11

6660316

SWITCH vacuum

12

6651975

SWITCH magnetic

13

SENSOR NLA - fuel - W/ O-ring

13

7216451

SENSOR, FUEL W/gasket - Was 6680453 - A

13

79K14

O RING 10

13

6717579

GASKET

14

45G1212

BOLT

15

50D12

NUT

16

6654200

SENSOR hydro. temp

17

6660204

SENSOR eng. oil pressure

18

6654201

SENSOR eng. temp.

19

ALTERNATOR See Illustration ALTERNATOR/ C3312

20

TIMER NLA - Order Ref. 62 - Was 6661372 - A

21

6681513

SOLENOID fuel shut off - Was 6667993 - A

22

6578366

BALL JOINT

23

62D4

NUT

24

6578363

ROD END swivel

25

6707040

ELBOW Was 26F000001B - B

26

6560172

COVER

27

4DM10

NUT

28

4DM5

NUT

29

STARTER See Illustration STARTER/ D2119

30

6564991

CABLE pos. - W/30 in. (762 mm) of Ref. 45

31

6562905

CABLE ground

32

6565170

CABLE neg

33

2356058

BOOT

34

6599652

BOOT

35

6665032

BATTERY, DRY 700 AMP Was 6665031 - A

35

6630153

BATTERY CAP

36

59D5

NUT 5

37

25E15

WASHER

38

6569203

CLAMP

39

6712536

PAN Was 6577809 - A

40

6576280

BOLT

41

84G3716

SCREW 5

42

6555455

WASHER

43

17C408

BOLT

44

83D5

NUT 5

45

6563505

CONDUIT bulk - Sold Per Foot

46

6664286

BOOT Also Order Ref. 2

47

35C516

BOLT 10

48

84G3712

BOLT 5

49

1CM1220

BOLT

50

30H48

CLIP

51

6657306

CAP, FUSE

52

35C624

BOLT

53

6700464

COVER harness

54

6700416

SPACER

55

6657305

HOLDER fuse

56

6702444

FUSE 25A 5

57

6702650

MOUNT

58

6646383

CONNECTOR fuel sender

58

6632946

TERMINAL female

59

6660260

SWITCH See Illustration HYDROSTATIC OIL FILTER/ C2818 FILTER

60

3675725

DIODE

61

6669415

TIMER, SOLENOID

61

6702444

FUSE 25A 5 25 amp Was 6670808 - A

62

6713879

HARNESS 16'' (406,4 mm) long
