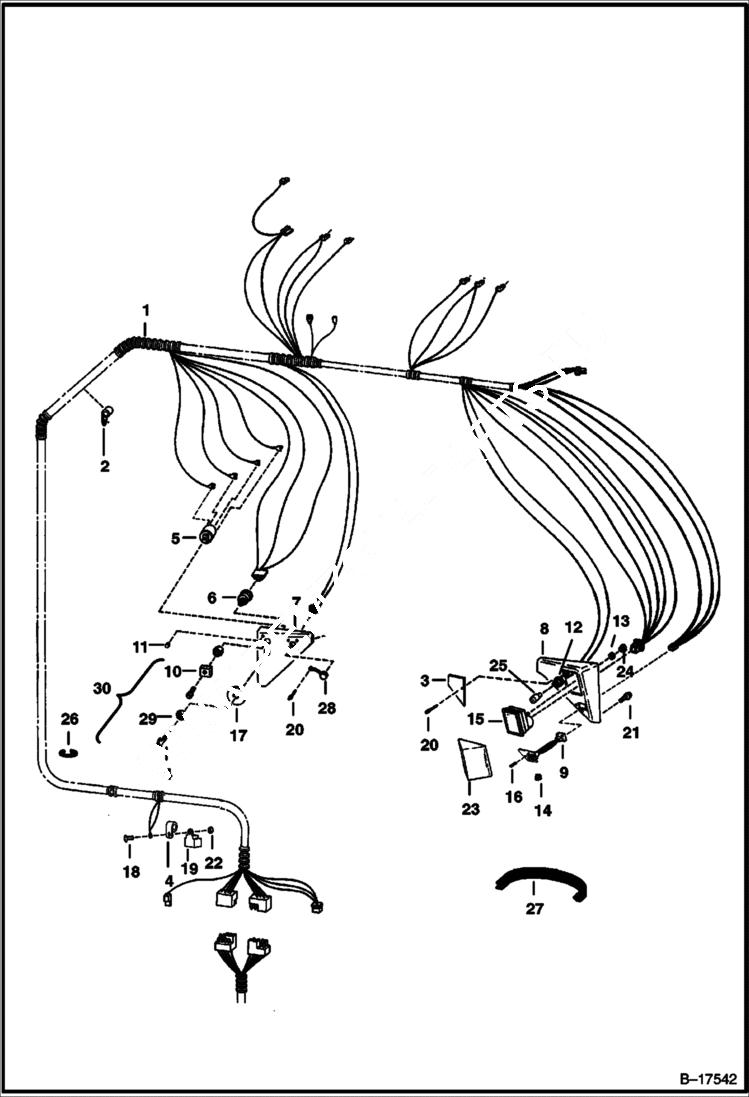

Запчасти Bobcat 700s CAB ELECTRICAL CIRCUITRY (W/B.O.S.S. Option) ELECTRICAL SYSTEM

1

6705136

HARNESS

2

30H54

CLIP

3

6702678

PLATE service codes

4

6512809

KEY For Ref. 5 (NLA/6519592 Switch)

4

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

4

6693241

KEY 10 ignition - single key W/O ring

5

SWITCH See BTI289 NLA - ignition - W/Ref. 4 & 29 - Order Ref. 30 - Was 6519592 - A

5

6665606

SWITCH ignition

6

6512808

SWITCH W/Ref. 10

7

6702608

PANEL L.H.

8

6702660

PANEL R.H.

9

6667903

SWITCH, AUX aux. controls - Was 6700603 - A

10

6599781

KNOB light switch

11

6660955

PLUG

12

6649331

SOCKET light - W/ 6 in. leads

13

17E8

WASHER

14

6660594

BUTTON on/off

15

DISPLAY LCD monitor - mounted w/nuts - NLA - order 7131641 kit - Was 6665923 - A

15

7131641

KIT, DISPLAY LCD LCD monitor - screw mounted - includes screws, display & instructions

15

LCD monitor NLA - LCD monitor mounted w/screws

15

6691063

SCREW

15

6904890

INSTRUCTIONS

16

6669225

BOLT Was 58G000408B - A

17

PLATE NLA - brake start - For Ref. 5 (NLA/6519592 Switch) - Order Ref. 30 - Was 6702263 - A

17

6709028

PLATE brake start - For Ref. 5 (6665606 Switch)

18

10C412

BOLT

19

6651975

SWITCH magnetic

20

6704892

RIVET

21

6702642

SCREW

22

61D4

NUT 5

23

6700487

SHIELD snap in place

24

12D8

NUT

25

6578357

BULB

26

MOULDING NLA - 6 in. (152,4 mm) long - Order Ref. 27

27

6630138

MOULDING bulk - Sold Per Foot

28

6651703

CAP

29

6598721

NUT W/Ref. 5 (NLA/6519592 Switch)

29

6674202

NUT W/Ref. 5 (6665606 Switch)

30

6724282

SWITCH KIT Ref. 4, 5 & 17
