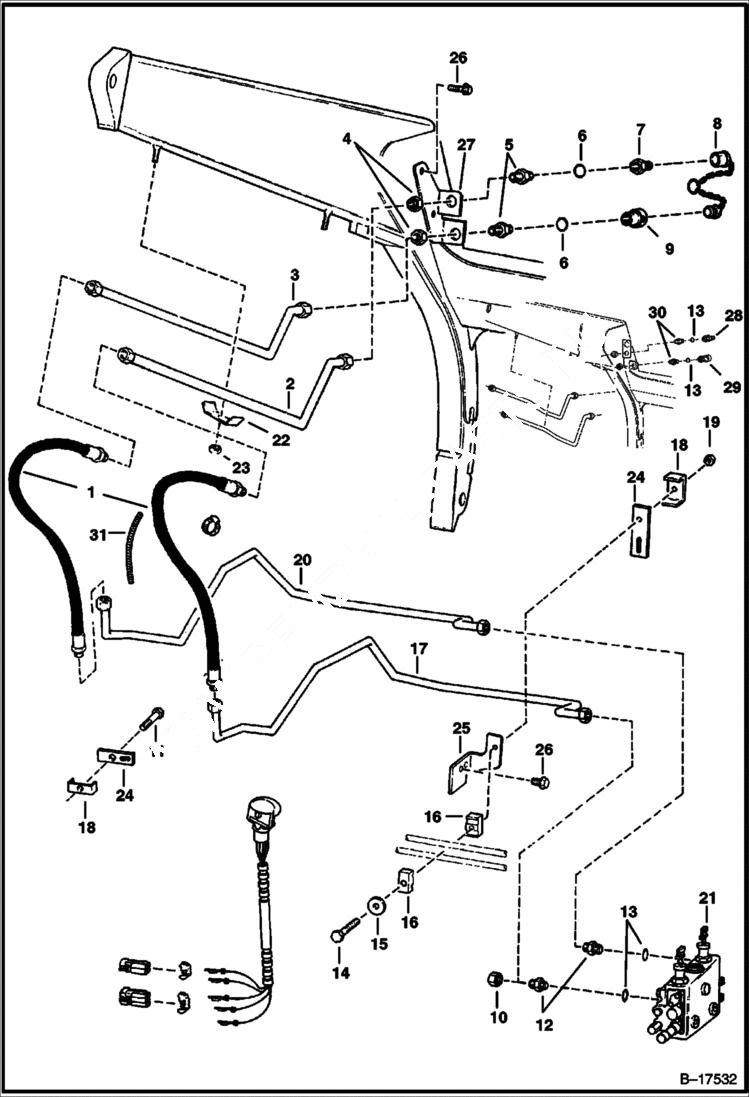

Запчасти Bobcat 700s AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

HOSE NLA - Order 6729155 Hose - Was 6707214 - A

1

6729155

HOSE W/Ref. 31 - Was 6714595 - A

2

6706832

TUBE

3

6706833

TUBE

4

86F7

LOCK NUT

5

45K7

CONNECTR W/Ref. 6

6

79K10

O RING 10

7

6598757

COUPLER, POPPET MALE straight

8

6513709

CAP PLUG Assy. (Rubber)

8

6515167

PLUG Steel

8

6515168

CAP Steel

9

6598758

COUPLER, POPPET FEMALE straight

9

48K16

O RING 10

9

6665430

BACKUP RING

10

36K8

CAP Use W/O front aux. option

11

84G3732

BOLT

12

15K8

FITTING W/Ref. 13

13

79K12

O RING 10

14

17C548

BOLT

15

872229

WASHER

16

6592506

CLAMP

17

6707175

TUBE

18

6568476

CLAMP

19

85D5

NUT 5

20

6710164

TUBE Was 6707174 - A

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17533

22

6502203

CLAMP

23

85D6

NUT, 5

24

6702548

PAD

25

6704619

MOUNT

26

84G3112

BOLT 5

27

6705700

MOUNT

28

6674688

COUPLER, FF MALE straight - Was 6667808 - A

28

6679841

SEAL Was 6672026 - A

29

6667807

COUPLER Female - flush face

30

6711625

FITTING W/Ref. 13

31

6643249

CONDUIT 1'' (25,4 mm) ID - bulk - sold per foot
