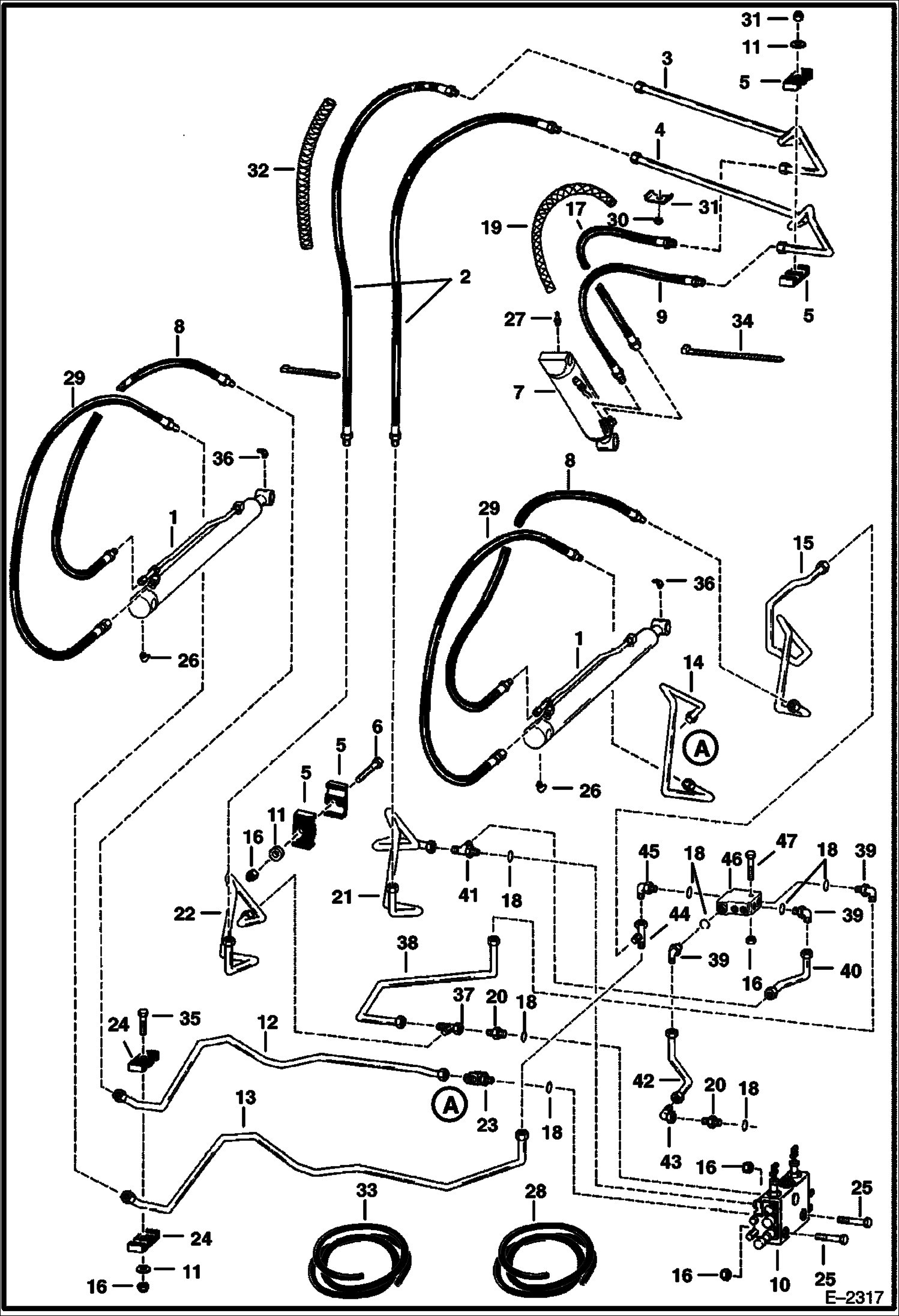

Запчасти Bobcat 700s HYDRAULIC CIRCUITRY (W/Bucket Positioning Valve) HYDRAULIC SYSTEM

1

6589259

CYLINDER See Illustration LIFT CYLINDER/ TS1097 LIFT

2

6708498

HOSE

3

6706835

TUBE

4

6706834

TUBE

5

6701893

CLAMP

6

17C540

BOLT

7

CYLINDER See Illustration TILT CYLINDER/ TS1098A See Illustration TILT CYLINDER/ TS1098 TILT

8

6718954

HOSE Was 6578808 - A

9

6704335

HOSE

10

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17533

11

872229

WASHER

12

6707197

TUBE

13

6707382

TUBE

14

6707452

TUBE

15

6707381

TUBE

16

85D5

NUT 5

17

6704336

HOSE

18

79K10

O RING 10

19

COVER NLA - Order Ref. 28 - 18 in. (457,2 mm) long

20

15K7

FITTING W/Ref. 18

21

6707476

TUBE

22

6707477

TUBE

23

6578183

TEE W/Ref. 18

24

6701892

CLAMP

25

17C532

BOLT 5

26

11H15

GREASE FITTING

27

10H25

FITTING, GREASE 5

28

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

29

6577671

HOSE, HYD ASSY

30

6502203

CLAMP

31

59D6

NUT

32

COVER NLA - Order Ref. 33 - 30 in. (762 mm) long

33

6705749

SHIELD 1.85 in. (47 mm) I.D. - bulk - Sold Per Foot

34

6610510

TIE

35

84G3728

BOLT

36

12H15

FITTING, GREASE 5

37

13K7

FITTING

38

6579931

TUBE

39

17K7

ELBOW W/Ref. 18

40

6579929

TUBE

41

21K7

TEE W/Ref. 18

42

6579930

TUBE

43

11K7

ADAPTER

44

13K6

TEE

45

784568

ELBOW

46

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 NLA- Order 6673959 valve- - If loader is not equipped with an on/off switch also order 6647784 plug, 79K8 O-ring, 6647785 spring, & 6647783 load

47

17C536

BOLT
