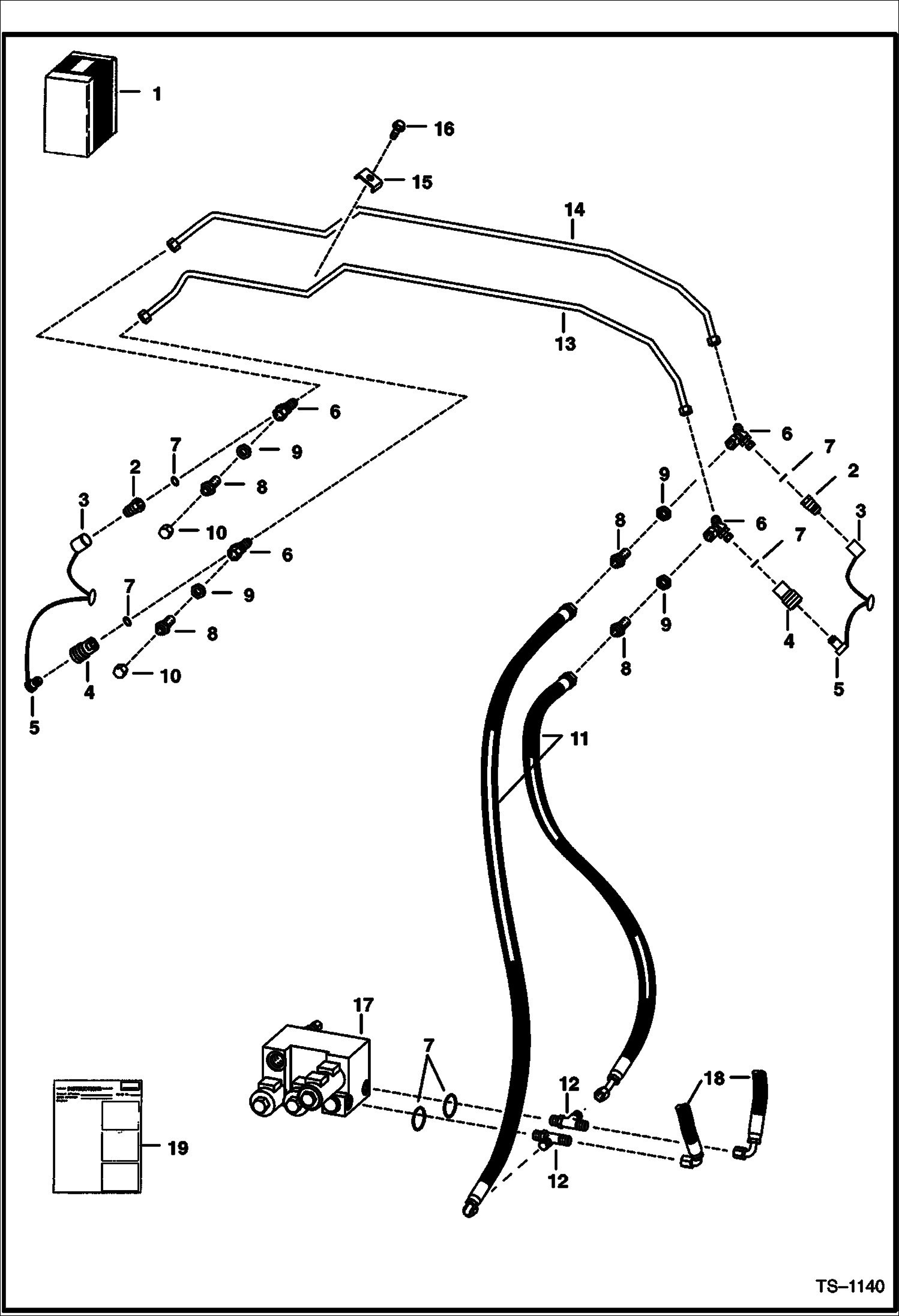

Запчасти Bobcat 700s REAR AUXILIARY (High Horsepower Hydraulics) ACCESSORIES & OPTIONS

1

6705373

KIT Ref. 2-16 & 19 - Was SALES - D

2

COUPLER NLA - male - Connect Under Pressure - Order 6648969 Quick Coupler - Was 6657037 - A

2

6648969

QUICK COUPLER male

3

1513549

CAP

4

COUPLER NLA - female - Connect Under Pressure Order 6648967 Quick Coupler - Was 6657038 - A

4

6648967

QUICK COUPLER female

4

6655795

SEAL KIT

5

1519324

PLUG

6

6706220

TEE W/Ref. 7 - Check boss face to determine correct replacement o-ring

7

79K6

O RING 10 flat boss face

7

99K6

O RING tapered boss face

8

51E0404

ADAPTER

9

61E04

NUT

10

63E04

CAP

11

6706089

HOSE

12

21K5

TEE W/Ref. 7

13

6705358

TUBE

14

6705357

TUBE

15

6500989

CLAMP

16

84G3716

SCREW 5

17

6662695

VALVE See Illustration HIGH FLOW HYDRAULICS/ TS1144 Not in Kit

18

HOSE See Illustration HIGH FLOW HYRDRAULICS/ TS1143 existing holes

19

6722411

INSTRUCTIONS
