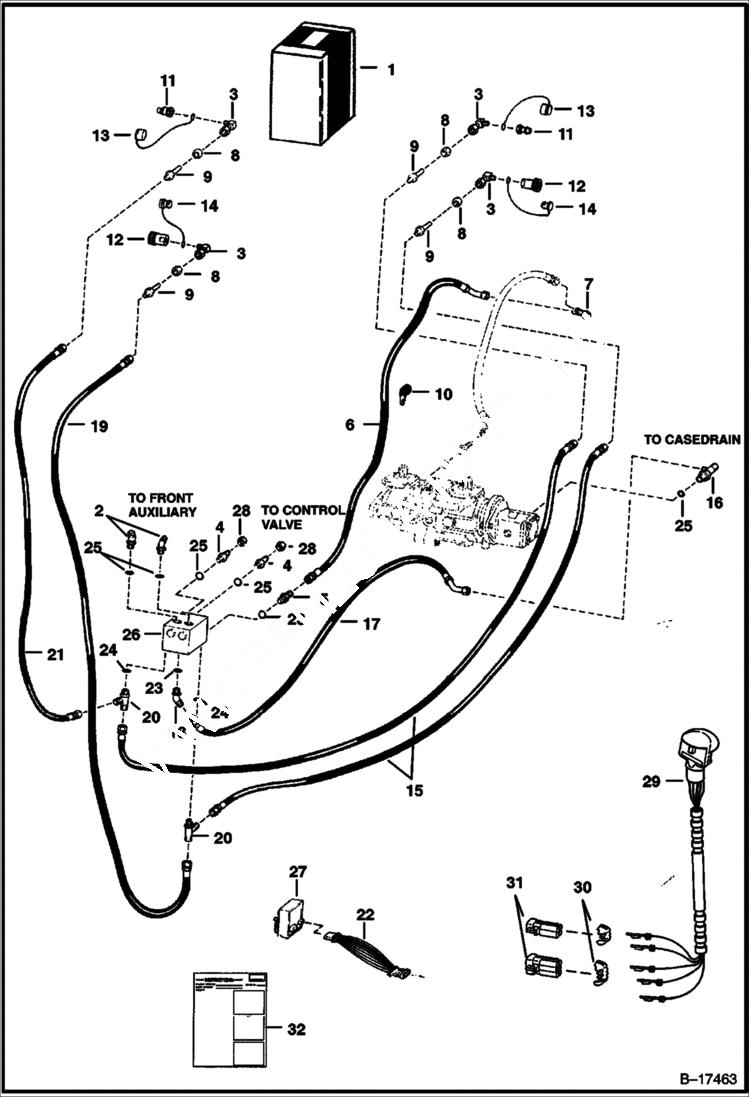

Запчасти Bobcat 700s REAR AUXILIARY (S/N 5127 11001-15999, 5115 25541, 5110 11007, 5086 90400, 5114 75003, 5113 50883 & Above) ACCESSORIES & OPTIONS

1

6706601

KIT Ref. 2-26 & 29-32-Was SALES - D

2

18K8

FTG W/Ref. 25

3

6703827

ELBOW Use W/Connect Under Pressure Couplers

3

1631632

ELBOW

4

45K8

ADAPTOR

5

15K3

CONNECTOR W/Ref. 25

6

6704727

HOSE

7

13K5

TEE

8

86F5

NUT

9

45K5

FITTING

10

30H34

CLAMP

11

COUPLER NLA - male - Connect Under Pressure - Order 6648969 Quick Coupler - Was 6657037 - A

11

2341398

COUPLER male

12

COUPLER NLA - female - Connect Under Pressure Order 6648967 Quick Coupler - Was 6657038 - A

12

2342026

COUPLING female

13

1513549

CAP

14

1519324

PLUG

15

6578174

HOSE

16

6704693

TEE W/Ref. 25 - Check boss face to determine correct replacement o-ring

17

6578185

HOSE

18

18K3

ELBOW W/Ref. 23

19

6618194

HOSE

20

21K5

TEE W/Ref. 24

21

6578173

HOSE

22

6704114

HARNESS

23

79K4

O RING 10

24

79K6

O RING 10

25

79K12

O RING 10 flat boss face

25

99K12

O RING tapered boss face

26

VALVE See Illustration REAR AUXILIARY VALVE/ B12959

27

MODULE See Illustration CONTROLS ELECTRICAL/ B17448 Not in Kit

28

86F8

NUT 5 Not in Kit

29

6680414

HANDLE ASSY. See Illustration HANDLE KITS/ TS1190 R.H. - Also Order Ref. 30-32 - Was 6705921 - A

29

6640690

PIN

29

6641176

SEAL

30

6641180

LOCK Use W/ 2-pin connector

30

6640700

LOCK 3-pin

31

6641179

CONNECTOR 2-pin

31

6640699

CONNECTOR 3-pin

32

6720951

INSTRUCTIONS
