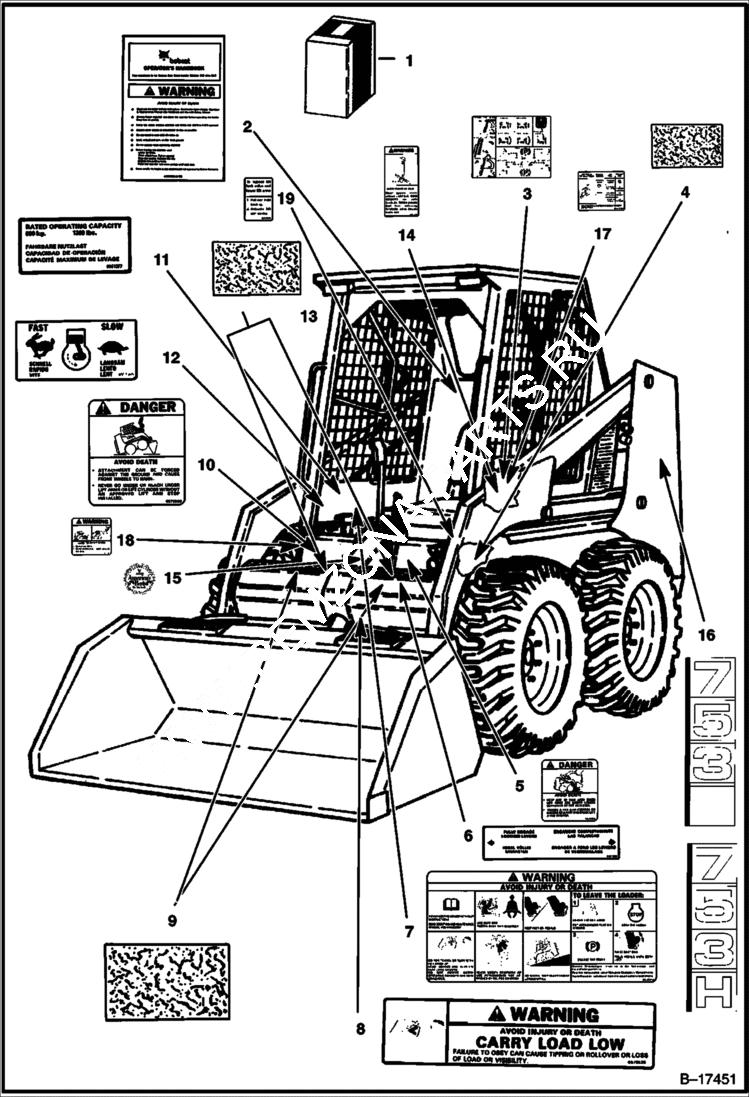

Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

6701897

KIT See Illustration DECALS/ B17452 decal - Ref. 2-15 on this page & Ref. 2-15

2

6704831

KIT handbook - W/Wire Rope

2

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

2

6558310

SLEEVE wire rope

3

6703723

DECAL operating

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6579639

DECAL danger

6

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

7

6579510

DECAL warning

8

6579528

DECAL, WARNING carry load low

9

6577947

SAFETY TREAD 190,5 x 381 mm (7.5 x 15'')

10

6579509

DECAL danger

11

6561377

DECAL capacity - 753

11

6703586

DECAL capacity - 753H

12

6735140

DECAL, THROTTLE Was 6557565 - A

13

6577949

SAFETY TREAD 6.8'' x 8.75'' - (172,7 mm x 222,3 mm)

14

6705720

DECAL lock shield

15

6705088

DECAL America's Best

16

6702825

DECAL model no. - 753 - L.H. - Not in Kit

16

6705362

DECAL model no. - 753H - L.H. - Not in Kit

17

6708105

DECAL pre heat - Was 6705712 - A

18

6710358

DECAL warning

19

6711840

DECAL lift lock
