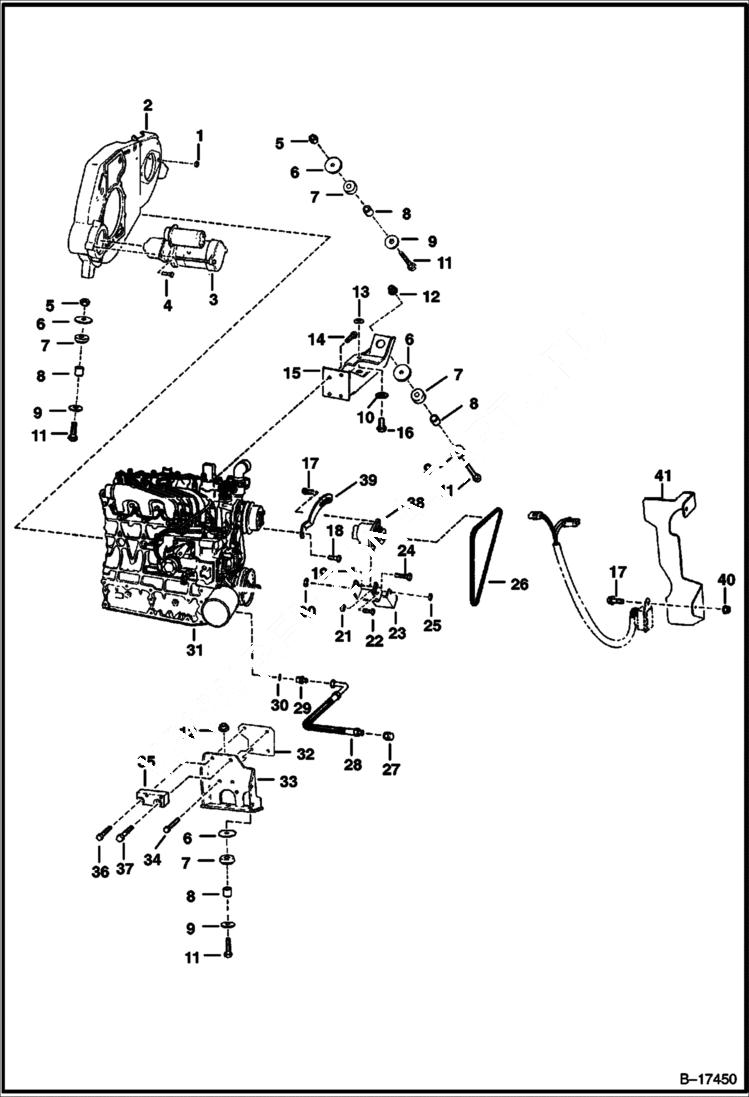

Запчасти Bobcat 700s ENGINE & ATTACHING PARTS (Engine Mounts) POWER UNIT

1

85D8

NUT, 5

2

6700541

MOUNT

3

STARTER See Illustration STARTER/ D2297

4

35C620

BOLT 5

5

6652918

NUT

6

6705106

WASHER See Illustration ENGINE MOUNT KIT/ B14623 For rough application engine mount

7

6661785

MOUNT, ENG See Illustration ENGINE MOUNT KIT/ B14623 For rough application engine mount

8

6706043

SPACER See Illustration ENGINE MOUNT KIT/ B14623 For rough application engine mount

9

6661787

WASHER See Illustration ENGINE MOUNT KIT/ B14623 For rough application engine mount

10

742640

WASHER

11

17C844

BOLT See Illustration ENGINE MOUNT KIT/ B14623 For rough application engine mount

12

83D8

NUT 5 See Illustration ENGINE MOUNT KIT/ B14623 For rough application engine mount

13

25E21

WASHER 5 Use 3 maximum

14

6CM1225

BOLT

15

6703585

MOUNT for vertical hardware mounting

15

7104568

MOUNT engine & hyd. pump - for horizontal hardware mounting of hydrostatic pump - Was 6712161 - A

16

17C820

BOLT

17

35C516

BOLT 10

18

1CM870

BOLT

19

57D5

NUT

20

85D6

NUT, 5

21

6568877

WASHER

22

1CM890

BOLT

23

6562257

MOUNT

24

17C556

BOLT

25

17C648

BOLT 5

26

6704720

BELT, ALT alternator

27

36K6

CAP

28

6704012

HOSE See Illustration HIGH FLOW HYRDRAULICS/ B17444 For High Flow Hydraulics

29

15K6

ADAPTER See Illustration HIGH FLOW HYRDRAULICS/ B17444 For High Flow Hydraulics

30

79K8

O RING 10 See Illustration HIGH FLOW HYRDRAULICS/ B17444 For High Flow Hydraulics

31

ENGINE See Illustration ENGINE & GASKET KITS/ B16450 See BTI314 NLA - Was 6653482

32

6700535

SPACER

33

6703981

MOUNT spacer not used

33

6703981

MOUNT W/Ref. 32

34

6CM1230

BOLT

35

6704322

MOUNT fuel filter

36

5CM1035

BOLT

37

6CM1235

BOLT

38

ALTERNATOR See Illustration ALTERNATOR/ C3312

39

6705711

BRACKET

40

83D5

NUT 5

41

6704918

SHIELD
