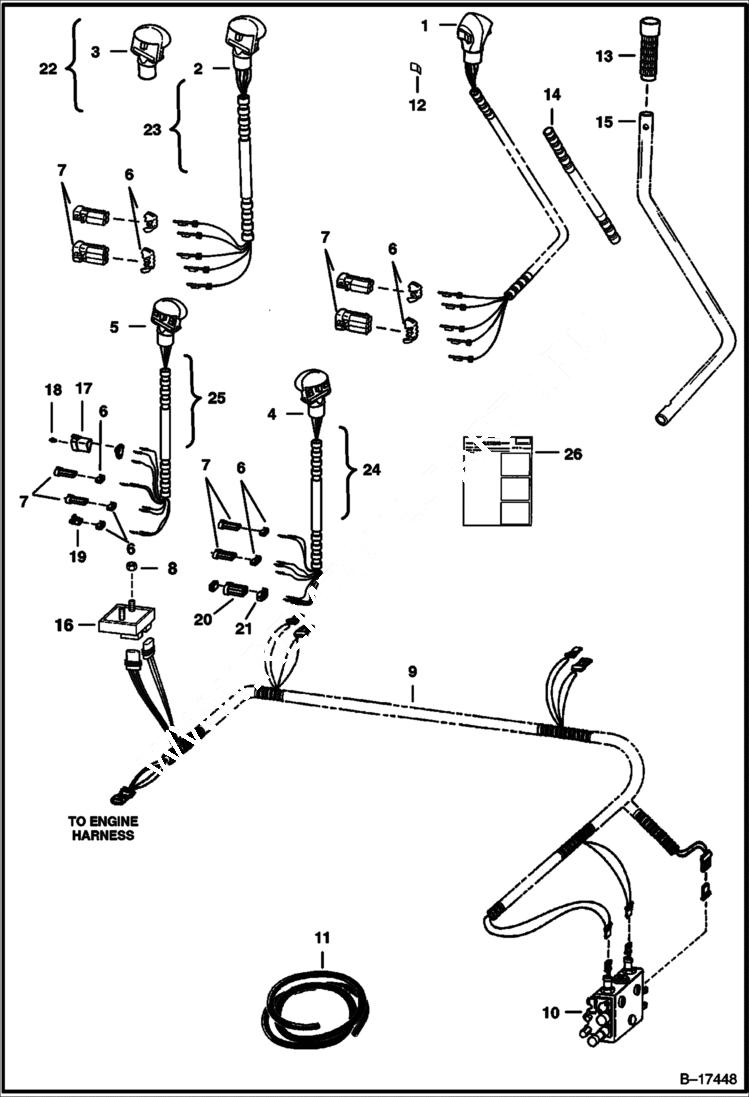

Запчасти Bobcat 700s CONTROLS ELECTRICAL ELECTRICAL SYSTEM

1

6704454

HANDLE ASSY. Cobra style - W/Ref. 12 & 14 - Also Order Ref. 7

2

6680414

HANDLE ASSY. two switch - R.H & L.H. - Also Order Ref. 6 & 7 or Ref. 23 - Was 6705921 - A

2

6640690

PIN

2

6641176

SEAL

3

6680415

HANDLE LH blank - Was 6705920 - A

3

6680415

HANDLE L.H. - blank - Use W/ O B.O.S.S. Option - Was 6705920 - A

4

6680413

HANDLE ASSY R.H. multi switch - Also Order Ref. 6, 7, 20 & 21 or Ref. 24 - Was 6706340 - A

4

6640690

PIN

4

6641176

SEAL

5

6680412

HANDLE ASSY L.H. multi switch - Also Order Ref. 6, 7 & 17-19 or Ref. 25 - Was 6707976 - A

5

6640690

PIN

5

6640691

PIN

5

6641176

SEAL

5

6662257

PIN

5

6680447

DECAL Was - 6677370 - A

6

6641180

LOCK Use W/ 2-pin connector

6

6640700

LOCK 3-pin

7

6641179

CONNECTOR 2-pin

7

6640690

PIN

7

6640699

CONNECTOR 3-pin

7

6640690

PIN

8

85D4

NUT 5

9

6702999

HARNESS

10

See Illustration HYDRAULIC CONTROL VALVE/ E1886

11

6584978

CONDUIT bulk - sold per foot

12

6664315

DECAL switch

13

6702621

GRIP

14

CONDUIT NLA - 36'' (914,4mm) long - Order Ref. 11

15

6702543

LEVER, STEERING See Illustration HAND CONTROLS/ B17446

16

6671669

MODULE, CONTROL AUX aux. control - Was 6669529 - C

17

6664599

CONNECTOR 3-pin triangle - Was 6664184 - B

18

6664800

LOCK 3-pin triangle - Was 6664186 - B

19

6641178

CONNECTOR 2-pin

20

6641173

CONNECTOR 6-pin

21

6641181

LOCK 6-pin

22

6706565

KIT blank handle - Ref. 3 & 26

23

6706566

KIT two switch handle - Ref. 2, 6, 7, & 26

24

6706567

KIT R.H. multi switch handle - Ref. 4, 6, 7, 20, 21 & 26

25

6706568

KIT L.H. multi switch handle - Ref. 5, 6, 7, 17 - 19 & 26

26

6722759

INSTRUCTIONS W/Ref. 22-25
