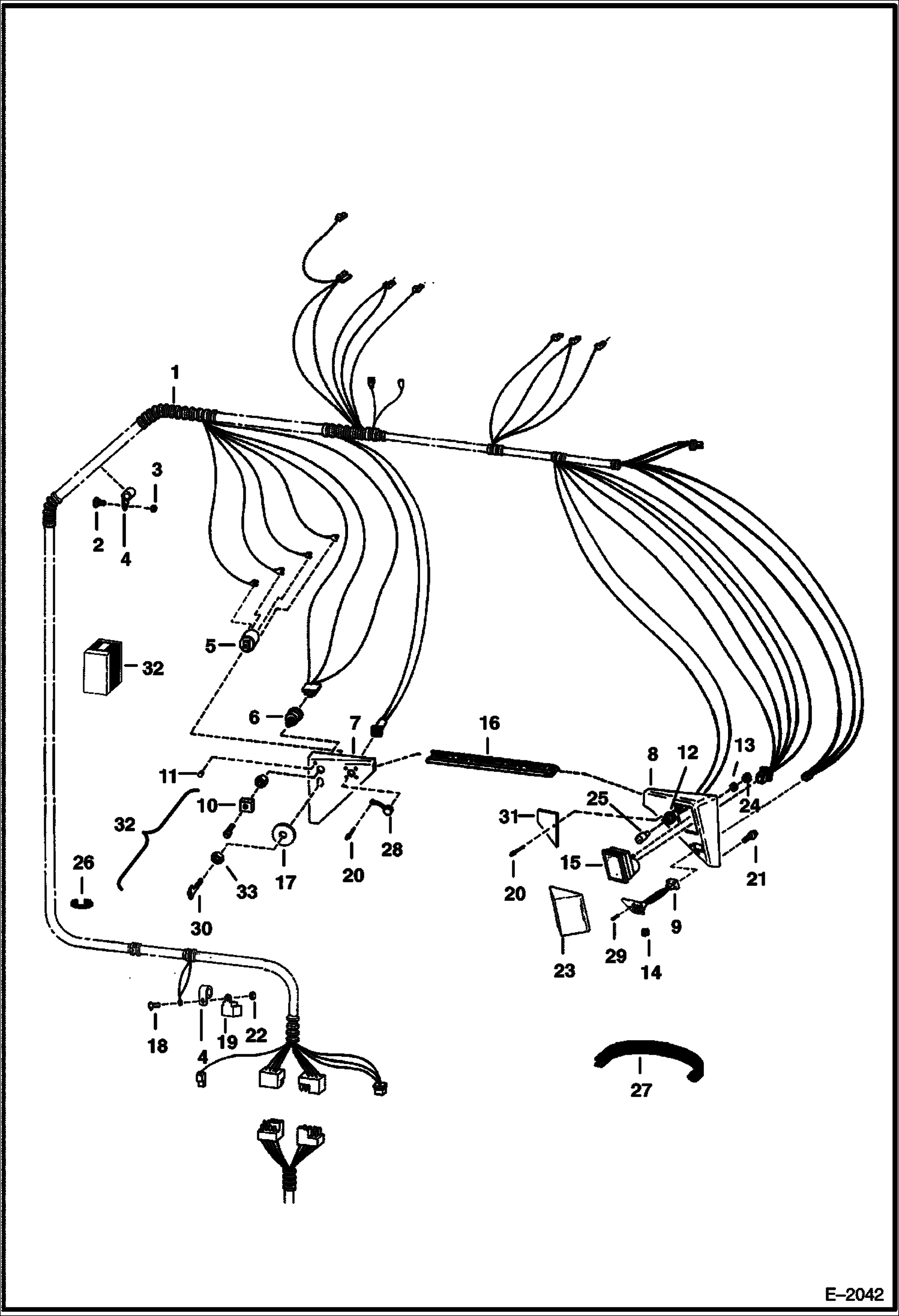

Запчасти Bobcat 700s CAB ELECTRICAL CIRCUITRY (W/B.O.S.S. Option) ELECTRICAL SYSTEM

1

6705136

HARNESS

2

35C412

BOLT

3

83D4

NUT 10

4

30H54

CLIP

4

30H54

CLIP

5

SWITCH See BTI289 NLA - Order Ref. 32 - ignition - Was 6519592 - A

5

6665606

SWITCH

6

6512808

SWITCH

7

6702608

PANEL L.H.

8

6702660

PANEL R.H.

9

6667903

SWITCH, AUX aux. controls - Was 6700603 - A

10

6599781

KNOB light switch

11

6660955

PLUG

12

6649331

SOCKET light - W/ 6'' leads

13

17E8

WASHER

14

6660594

BUTTON on/off

15

DISPLAY LCD monitor - mounted w/nuts - NLA - order 7131641 kit - Was 6665923

15

7131641

KIT, DISPLAY LCD LCD monitor - screw mounted - includes screws, display & instructions

15

LCD monitor NLA - LCD monitor mounted w/screws

15

6691063

SCREW

15

6904890

INSTRUCTIONS

16

6578780

CROSSMEMBER

17

PLATE NLA - ignition key - W/Ref. 5 (NLA/6519592 Switch) - Order Ref. 32 - Was 6702263 - A

17

6709028

PLATE ignition key - W/Ref. 5 (6665606 Switch) - Was 6708701 - A

18

10C412

BOLT

19

6651975

SWITCH relay

20

6704892

RIVET

21

6702642

SCREW

22

61D4

NUT 5

23

6700487

SHIELD snap in place

24

12D8

NUT

25

6578357

BULB

26

MOULDING NLA - Order Ref. 27 - 6'' (152, 4mm) long

27

6630138

MOULDING bulk - Sold Per Foot

28

6651703

CAP

29

6669225

BOLT Was 58G000408B - A

30

6512809

KEY ignition - for Ref. 5 (NLA/6519592 Switch)

30

KEY For 6665606 switch - NLA -includes two keys W/ring - Order 6693241 - Was 6709527 - A

30

6693241

KEY 10 ignition - single key W/O ring

31

6702678

PLATE service codes

32

6724282

SWITCH KIT Ref. 5, 17 & 30

33

6598721

NUT W/Ref. 5 (NLA/6519592 Switch)

33

6674202

NUT W/Ref. 5 (6665606 Switch)
