Запчасти Bobcat 700s HAND CONTROLS HYDROSTATIC SYSTEM

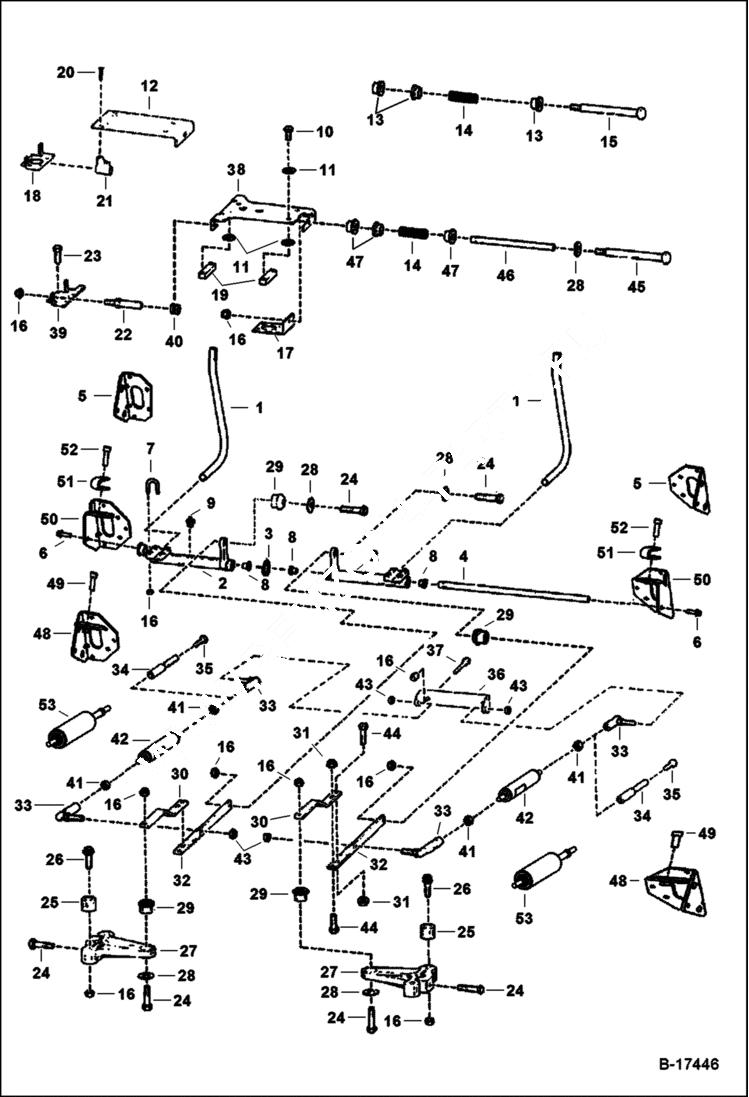

Схема запчастей Bobcat 700s - HAND CONTROLS HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6702543

LEVER, STEERING

2

BELLCRANK NLA - W/Notch for bushing tab - Order 7110571 Bellcrank, Ref. 9 (10H000035B Grease Zerk), Ref. 28 (619021 Washer) & Ref. 29 (6678067 Bushing) - Was 6703880 - A

2

BELLCRANK NLA - W/Notch for bushing tab - Use W/Ref. 9 (6518200 Grease Zerk) - Order 7110571 Bellcrank & Ref. 9 (10H000035B Grease Zerk) - Was 7101047 - A

2

7110571

BELLCRANK, STEERING W/notch for Ref. 8 (6703897 bushing) - Use W/Ref. 9 (10H35 grease zerk)

3

6599741

WASHER wave

4

ROD NLA - Use W/Ref. 6 (17C-616 Bolt) - Order 6716545 Rod & (2) of Ref. 6 (45C-620 Bolt) - Was 6576250 - A

4

6716545

ROD

5

6577230

BRACKET

6

17C616

BOLT 5

6

45C620

BOLT

7

6732997

U-BOLT Was 6700768 - A

8

6703879

BUSHING, PLASTIC W/tab

9

6518200

FITTNG, GREASE 10 press fit

9

10H35

FITTING, GREASE 10 threaded

10

8C616

SCREW

11

6557831

WASHER

12

6576198

MOUNT

13

6571900

BUSHING

13

BUSHING NLA - Order Ref. 28, 45, 46 & (3) of Ref. 47 - Was 6706097 - A

14

6701535

SPRING

15

BOLT NLA - shoulder - Order Ref. 28, 45, 46 & (3) of Ref. 47 -Was 6702715 - A

16

95D6

NUT Was 91D000006B - A

17

6576196

MOUNT

18

6576197

MOUNT

19

6702716

BLOCK

20

58G1012

SCREW Was 6657739 - A

21

6576201

GUIDE plastic

22

6577058

PIN

23

1CM820

BOLT

24

17C626

BOLT

25

6704435

WEAR CAM

26

93G616

SCREW

27

6701145

LEVER, PINTLE .63'' pump lever shaft - Was NLA - D

28

6563914

WASHER 1.00'' (25,4 mm) O.D.

28

619021

WASHER, 5 0.13'' thick - 32 mm (1.25'') OD

29

6665701

BUSHING, PRESS FIT neoprene - 8.85'' (22,5 mm) O.D. - Was 6630081 - A

29

6685060

BUSHING, TORSION torsion - 26,8 mm (1.055'') OD - Was 6678067 - A

30

6576194

LINK

31

83D6

NUT 5

32

6576195

LINK

33

6599744

BALL JOINT

33

6599744

BALL JOINT

34

BALL JOINT NLA - Order 6706106 mount, 6599744 balljoint, 91D5 nut, & 17C641 screw - Was 6701149 - A

35

18C612

BOLT

36

6706106

MOUNT damper - W/O mount for back-up alarm switch

37

17C612

BOLT 5

38

6706095

MOUNT

39

6706096

MOUNT

40

6706098

GUIDE

41

8D6

NUT 5

42

GAS SPRING NLA - Japan Option - Order Ref. 53 - Was 6649551 - A

43

62D6

NUT 5

44

17C620

BOLT

45

17C680

BOLT

46

6715164

SLEEVE, SPRING

47

6715163

BUSHING, PRESS FIT

48

BRACKET NLA - R.H. - Order Ref. 50-52 - Was 6733022 - A

48

BRACKET NLA - L.H. - Order Ref. 50-52 - Was 6733024 - A

49

93G824

BOLT Was 73G824 - A

50

7128600

BRACKET RH

50

7128601

BRACKET LH

51

7121779

PAD

52

73G828

BOLT

53

7188108

GAS SPRING
