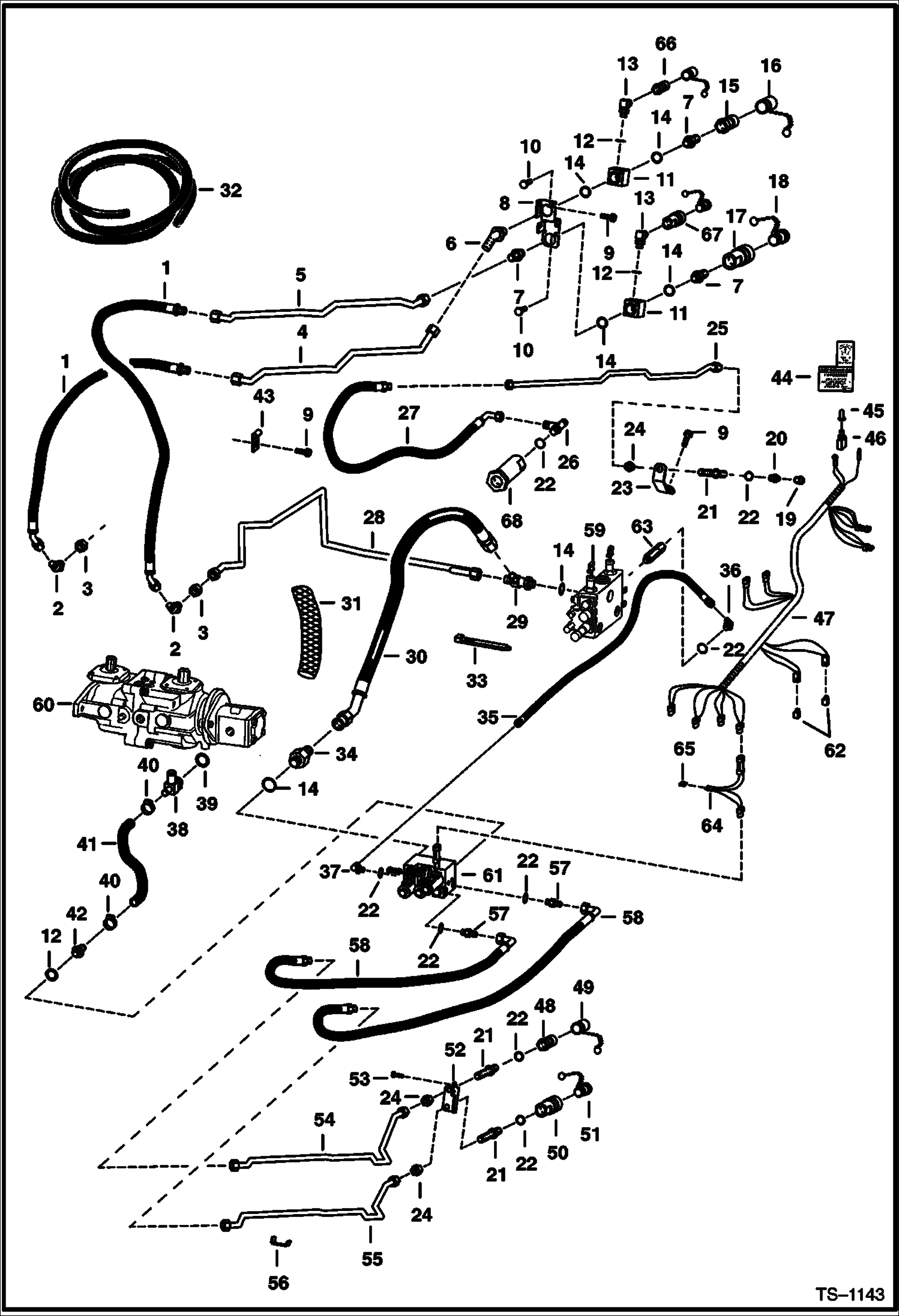

Запчасти Bobcat 700s HIGH FLOW HYRDRAULICS HIGH FLOW HYDRAULICS

1

6706175

HOSE

2

46K8

ELBOW See Illustration AUXILIARY HYDRAULICS/ D1891

3

86F8

NUT 5 See Illustration AUXILIARY HYDRAULICS/ D1891

4

6705062

TUBE

5

6705063

TUBE

6

18K8

FTG W/Ref. 14

7

15K8

FITTING W/Ref. 14

8

6705030

BRACKET

9

84G3712

BOLT 5

10

17C612

BOLT 5

11

6704010

BLOCK

12

79K10

O RING 10

13

6704013

ELBOW W/Ref. 12

14

79K12

O RING 10

15

6648970

QUICK COUPLER male

16

6515599

CAP

17

6648968

QUICK COUPLER female

18

6515598

PLUG Was 6515590 - A

19

3679001

CAP

20

6658253

QUICK COUPLER male - thread together

20

6658252

QUICK COUPLER female - thread together - See attachment fiche

21

45K5

FITTING

22

79K6

O RING 10

23

6705029

BRACKET

24

86F5

NUT

25

6705064

TUBE

26

21K5

TEE W/Ref. 22

27

6719108

HOSE Was 6706142 - A

28

6705280

TUBE Was 6719108 - B

29

6704921

TEE W/Ref. 14

30

6707232

HOSE Was 6706140 - A

31

COVER NLA - 28'' (711,2 mm) long - Order Ref. 32

32

6652367

HOSE COVER bulk - Sold Per Foot - 1.62'' (41,148 mm) I.D.

33

6624289

STRAP, TIE

34

6659459

CHECK VALVE inline - W/Ref. 14

35

6705487

HOSE

36

18K5

ELBOW W/Ref. 22

37

17K5

ELBOW W/Ref. 22

38

6705468

TEE W/Ref. 39 - 1'' (25,4 mm) O.D.

38

6706466

TEE W/Ref. 30 - 1.25'' (31,8 mm) O.D.

39

79K16

O RING 10

40

42H16

CLAMP, HOSE 5

41

6714423

HOSE Was 6705466 - C

42

1316263

ADAPTER W/Ref. 12

43

30H42

CLAMP

44

6706508

DECAL Was 6703167 - A

45

6515510

COVER switch

46

6658858

SWITCH

47

6705770

HARNESS W/Ref. 62

48

6648969

QUICK COUPLER male

49

1513549

CAP

50

6648967

QUICK COUPLER female

50

6655795

SEAL KIT

51

1519324

PLUG

52

6706750

BRACKET Was 6703411 - A

53

84G3112

BOLT 5 5/16''(7,9 mm) Dia.

53

84G3712

BOLT 5 3/8''(9,5 mm) Dia.

54

6703611

TUBE

55

6703610

TUBE

56

6703615

CLAMP

57

15K5

FITTING W/Ref. 22

58

6706093

HOSE

59

VALVE See Illustration HIGH FLOW HYRDRAULICS/ E2253 control

60

PUMP See Illustration HYDROSTATIC PUMP/ D1979

61

6662695

VALVE See Illustration HIGH FLOW HYDRAULICS/ TS1144 control

62

6704122

DIODE

63

6661225

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E1886 main relief - 3250-3350 PSI

64

6703898

HARNESS

65

6703899

DIODE

66

QUICK COUPLER See Illustration AUXILIARY HYDRAULICS/ D1891 male - W/Ref. 7

67

QUICK COUPLER See Illustration AUXILIARY HYDRAULICS/ D1891 female - W/Ref. 9

68

FILTER See Illustration HYDROSTATIC OIL FILTER/ B13527 in-line - W/Ref. 31
