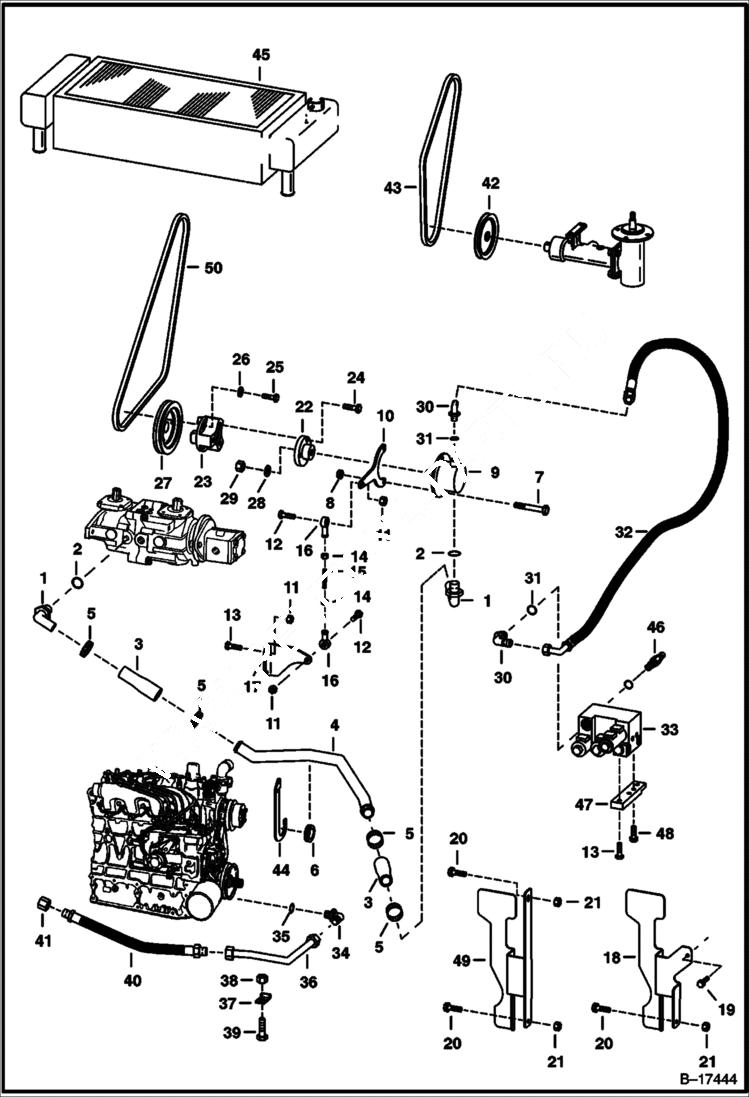

Запчасти Bobcat 700s HIGH FLOW HYRDRAULICS HIGH FLOW HYDRAULICS

1

1321499

FITTING W/Ref. 2 - Was 6567884 - A

2

79K16

O RING 10

3

6703885

HOSE

4

6705161

TUBE

5

42H16

CLAMP, HOSE 5

6

6705164

GROMMET

7

17C724

BOLT

8

83D7

NUT

9

PUMP See Illustration HIGH FLOW HYDRAULICS/ B13927 gear

10

6703722

ARM torgue

11

85D6

NUT, 5

12

17C620

BOLT

13

17C616

BOLT 5

14

62D6

NUT 5

15

6703719

ROD

16

6512954

ROD END R.H. threads

17

6704016

MOUNT

18

SHIELD NLA - Order Ref. 20, 21 & 49 - Was 6704928 - A

19

84G3712

BOLT 5

20

35C516

BOLT 10

21

83D5

NUT 5

22

6705129

COUPLER

23

6705112

COUPLER

24

17C720

BOLT Was 17C000716B - B

25

17C524

BOLT

26

25E15

WASHER

27

6705780

PULLEY

28

25E21

WASHER 5

29

62D8

NUT

30

17K7

ELBOW W/Ref. 31

31

79K10

O RING 10

32

6705497

HOSE

33

6662695

VALVE See Illustration HIGH FLOW HYDRAULICS/ TS1144 control - W/Ref. 31

34

763818

ELBOW W/Ref. 31

35

79K12

O RING 10

36

6705436

TUBE

37

30H40

CLAMP

38

85D8

NUT, 5

39

17C816

BOLT

40

6705442

HOSE

41

36K7

FITTING

42

6703483

PULLEY, FAN DRIVE IDLER

43

6704607

BELT, FAN

44

6705168

MOUNT

45

RADIATOR See Illustration COOLING SYSTEM/ B17202

46

VALVE NLA - relief - Pressure preset at factory - Was 6658838 - A

46

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

46

6632279

KIT, SEAL relief

47

6705471

MOUNT

48

35C610

BOLT 5

49

6708307

SHIELD

50

6704720

BELT, ALT See Illustration ENGINE & ATTACHING PARTS/ B17450 alt./gear pump
