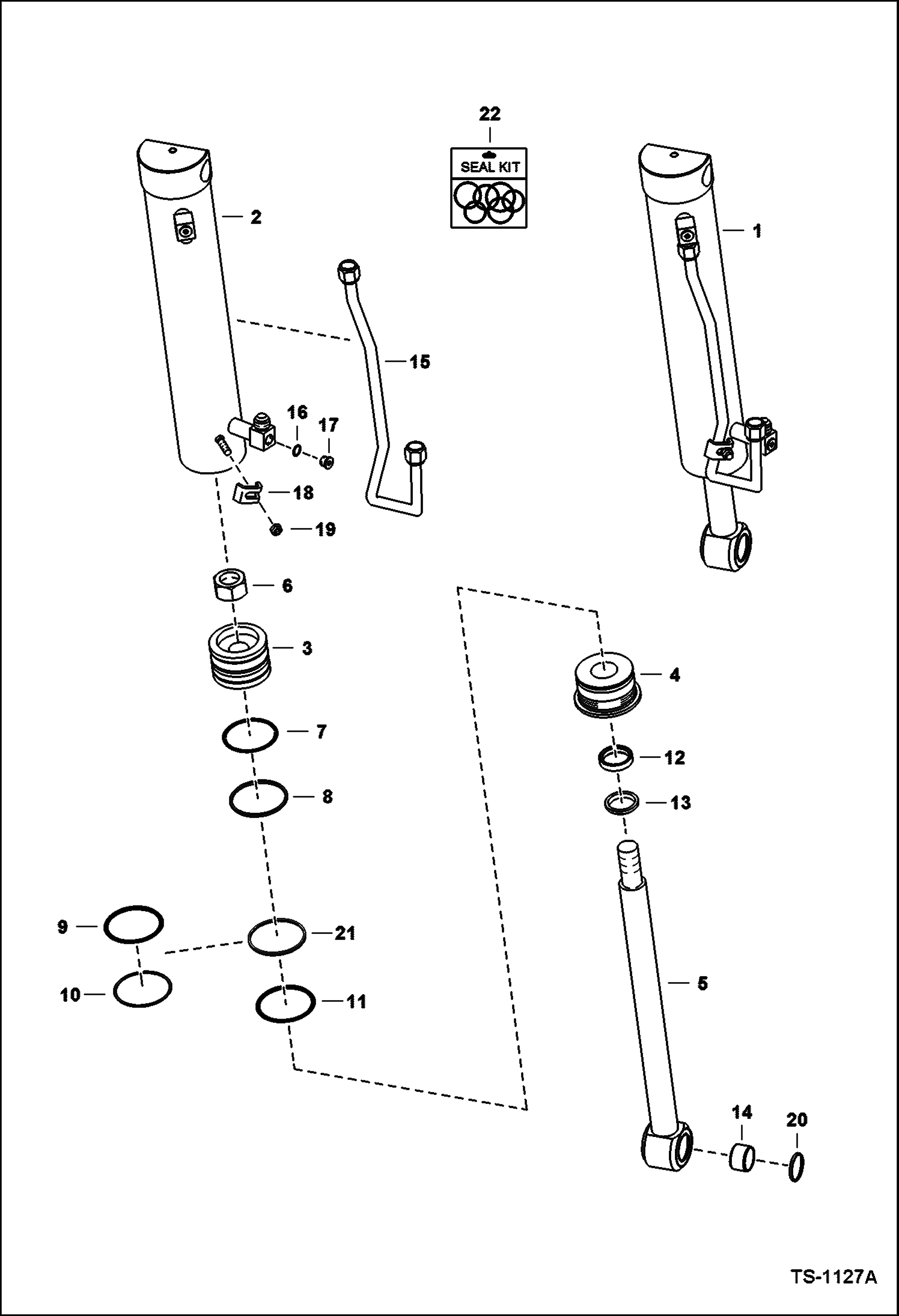

Запчасти Bobcat 700s TILT CYLINDER HYDRAULIC SYSTEM

1

6804692

CYLINDER, TILT See Illustration TILT CYLINDER/ TS1127 - Ref. 2-13 & 15-19 - before ordering repair parts, make sure that this is the correct style cylinder - Note the difference in the length of the c

2

6804703

CASE 3.25'' (82,6 mm) I.D. - 21.38 (543,05mm) overall length

3

6804699

PISTON 1.125'' (28,6 mm) I.D. - W/.40'' (11,16 mm) rod end recess

4

6539185

HEAD, CYL TILT

5

6804704

ROD 1.5'' (38,1 mm) O.D. - W/ grease zerk hole - 21.16'' (537,46mm) length, end of threads to center of eye - Also Order Ref. 14

6

6810539

NUT Was 6804592 - A

7

25K30226

O RING 10 Was 54K30226 - B

8

6513466

PISTON RG

9

58K234

O RING 10 Was 54K40300 - B

10

73K234

BACK-UP RING back-up - Was 80K234 - A

11

82K236

O-RING Was 58K000236B - A

12

6667326

SEAL

13

6690707

WIPER, ROD CYL Was 6665086 - A

14

6805150

BUSHING, PRESS FIT wear - W/grease fitting hole

15

6539144

TUBE

16

95K6

O'RING tapered boss face

17

90KV5

PLUG W/Ref. 16 - tapered boss face

18

6562266

CLAMP

19

95D6

NUT Was 91D000006B - A

20

6654117

SEAL, OIL 51 mm (2'') OD

20

225855

SEAL, OIL 10 38 mm (1.5'') OD

21

7008354

SEAL, QUAD

22

7135551

KIT, SEAL Ref. 6-8, 11-13, & 21 - Was 6804605 - A
