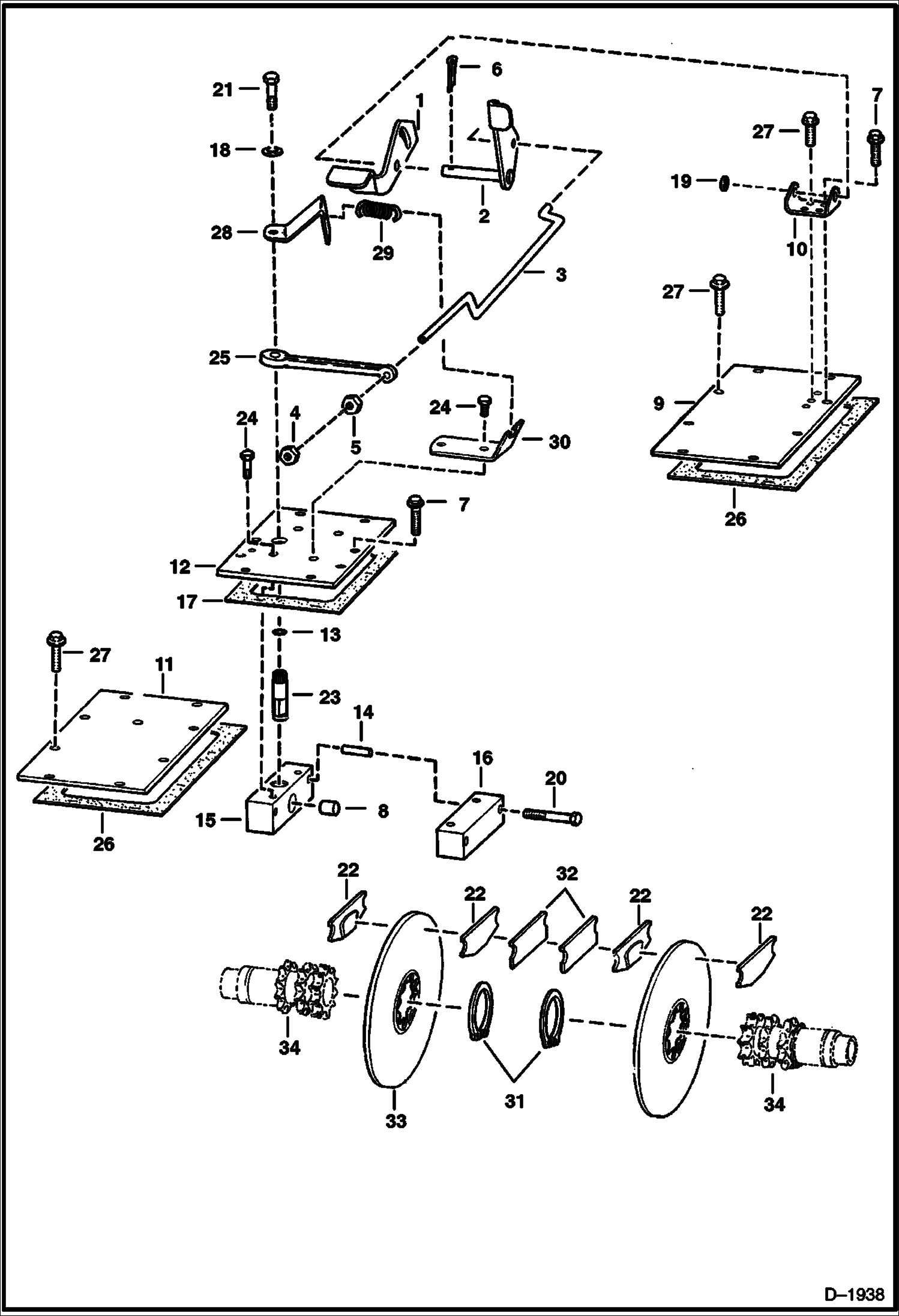

Запчасти Bobcat 700s DISC BRAKE (Non-Flat Top Chaincase) DRIVE TRAIN

1

6704811

PEDAL brake

2

6704812

PEDAL brake

3

6704809

ROD

4

85D8

NUT, 5

5

6564669

NUT, 10

6

1318565

COTTER PIN

7

84G3716

SCREW 5

8

6569927

PIN

9

6578505

COVER

10

6700073

PEDAL MOUNT

11

6700330

COVER

12

6704334

COVER

12

6704334

COVER

12

6704334

COVER

12

6706278

COVER

12

6706278

COVER

12

6706278

COVER

13

25K30100

O RING 10

14

6571796

SPACER

15

6571795

BLOCK

16

6571794

BLOCK

17

6703098

GASKET

18

6506477

WASHER

19

25E25

WASHER 10

20

17C880

BOLT

21

17C820

BOLT

22

6700706

PAD

23

6569842

CAM PIN

24

17C816

BOLT

25

6563823

LEVER

26

6703097

GASKET, TRANS COVER

27

84G3712

BOLT 5

28

6701626

BRACKET

29

6584584

SPRING

30

6701627

BRACKET

31

6658672

SNAP RING

32

6702805

SPACER

33

6702792

DISC

34

6705065

SHAFT, TRANS See Illustration MOTOR CARRIER/ B17441
