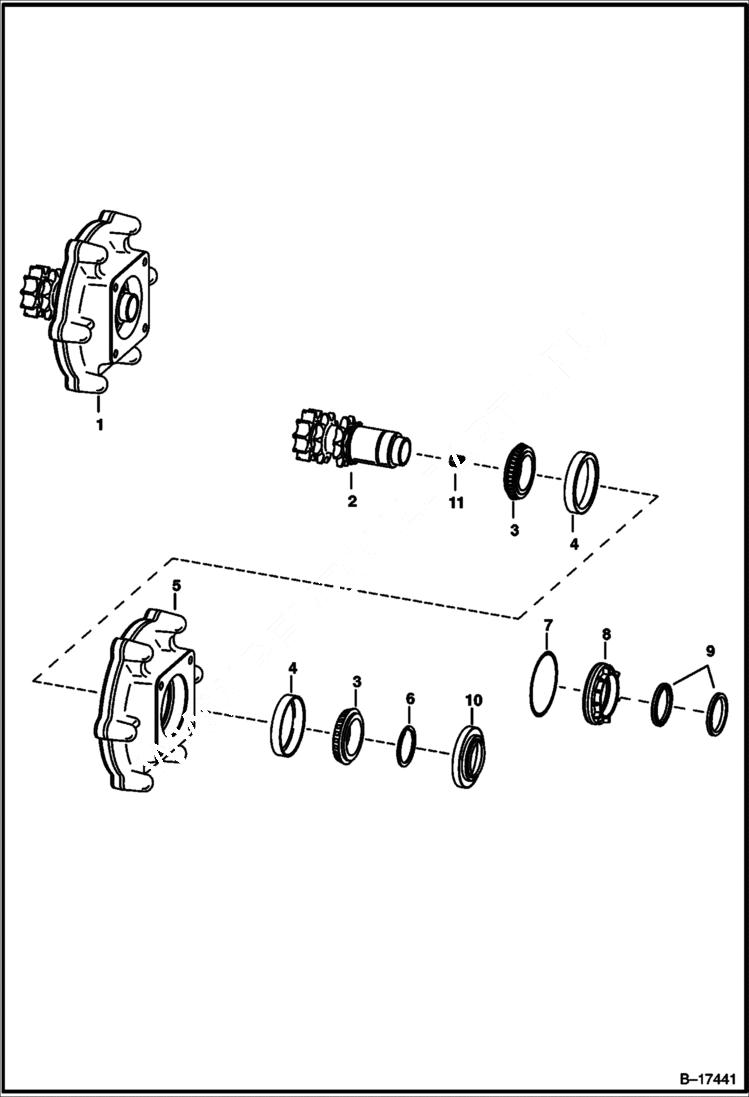

Запчасти Bobcat 700s MOTOR CARRIER (Drive Motor Mount Assy.) DRIVE TRAIN

1

6705287

MOUNT ASSY. drive motor - Ref. 2 - 9

2

6705065

SHAFT, TRANS W/snap ring groove

3

6632218

CONE, BEARING

4

6632541

RACE

5

6704491

HOUSING

6

6571851

SNAP RING 0.118'' thickness

6

6571852

SNAP RING 0.125'' thickness

7

O-RING NLA - Order Ref. 10 - Was 25K040412B - B

8

SEAL ADAPTER NLA - Order Ref. 10 - plastic - Was 6703186 - A

9

SEAL NLA - Order Ref. 10 - Was 6652528 - A

10

6705847

SEAL, OIL

11

PLUG NSS - Was 16F000006B - D
