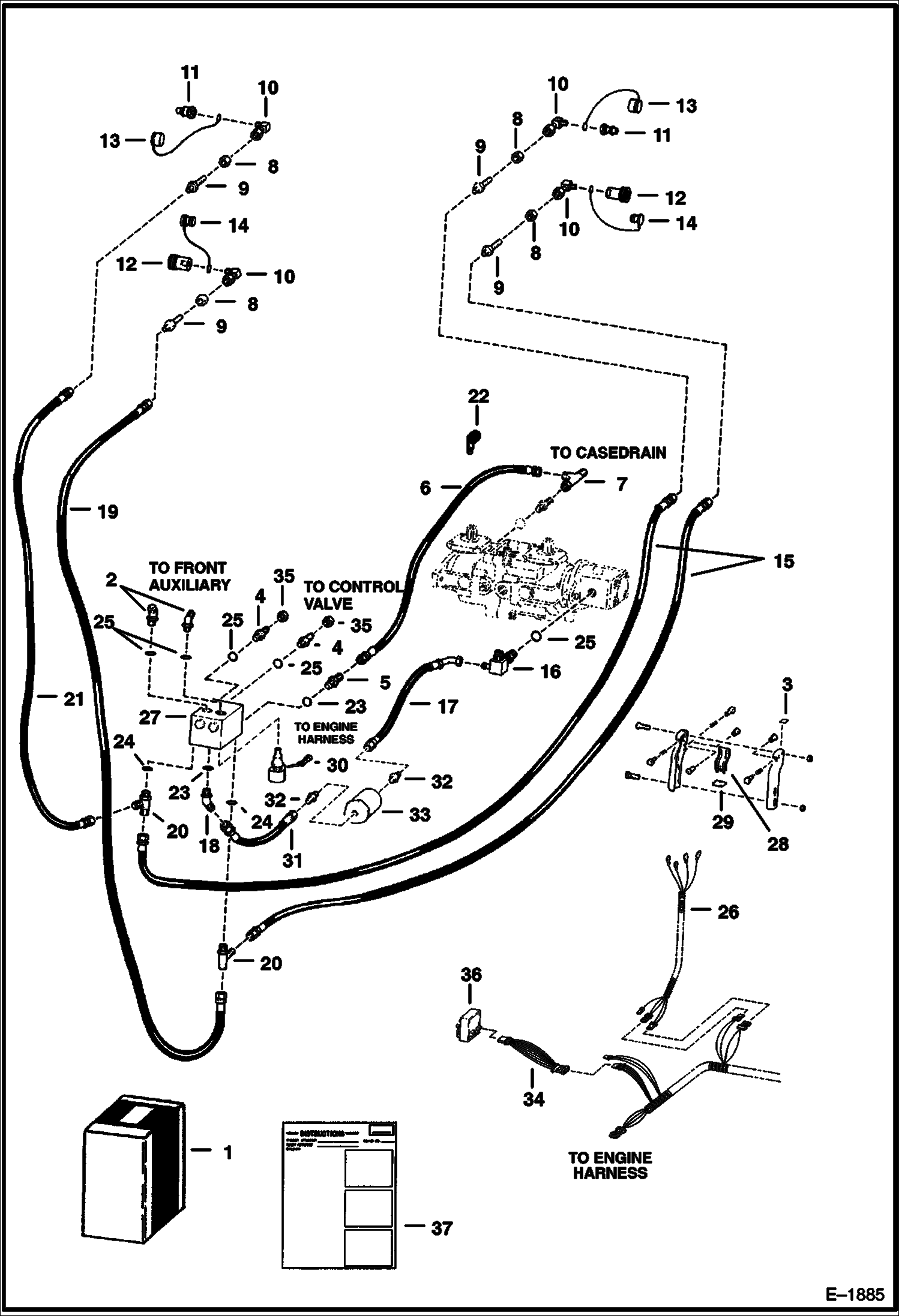

Запчасти Bobcat 700s REAR AUXILIARY (S/N 5086 13487 & Below) ACCESSORIES & OPTIONS

1

6701894

KIT Ref. 2 - 29, 31 - 33 & 37 - Was SALES - D

1

KIT NLA - Ref. 2 - 29, 31 - 34 & 37 - Was 6702708 - A

2

18K8

FTG W/Ref. 25

3

6702636

PLATE

4

45K8

ADAPTOR W/Ref. 25

5

15K3

CONNECTOR W/Ref. 23

6

6701638

HOSE Was 6578809 - A

7

13K5

TEE

8

86F5

NUT

9

45K5

FITTING

10

1631632

ELBOW

11

2341398

COUPLER male

12

2342026

COUPLING female

13

1513549

CAP

14

1519324

PLUG

15

6578174

HOSE

16

6578256

ELBOW W/Ref. 25

17

6578185

HOSE

18

18K3

ELBOW W/Ref. 23

19

6618194

HOSE

20

21K5

TEE W/Ref. 24

21

6578173

HOSE

22

30H38

CLIP

23

79K4

O RING 10

24

79K6

O RING 10

25

79K12

O RING 10

26

6576297

HARNESS

26

6702633

HARNESS

27

VALVE See Illustration REAR AUXILIARY VALVE/ B12959

28

SWITCH See BTI324 NLA - leaf - Was 6569451 - A

29

6572087

INSULATOR

30

6653488

VALVE solenoid

31

6530862

HOSE

32

1308081

ADAPTER

33

6630521

FILTER See Illustration REAR AUX. IN-LINE FILTER/ B17468 in-line

34

6704114

HARNESS Required for Use W/Cobra style handles

35

86F8

NUT 5 Not in Kit

36

MODULE See Illustration CONTROLS ELECTRICAL/ D1890 Not in Kit

37

6720356

INSTRUCTIONS Was 6570919 - A
