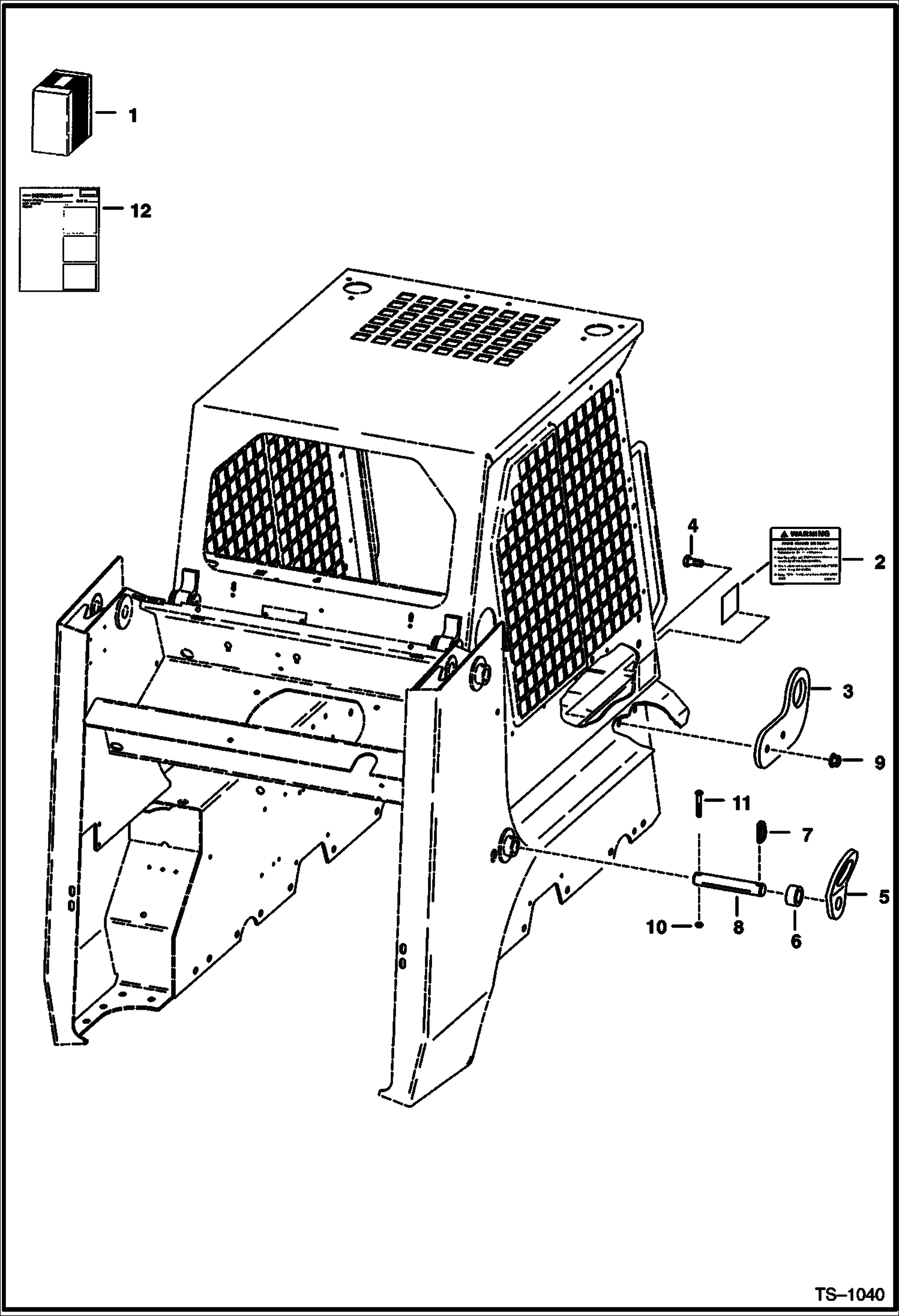

Запчасти Bobcat 700s LIFT KIT (Four Point - .5 Thick Front & Rear Lift Eyes) ACCESSORIES & OPTIONS

1

KIT See Illustration LIFT KIT/ TS1198 NLA - Ref. 2-9 & 12 - Order 6725224 Kit - Was 6701527 - C

2

6702916

DECAL warning

3

LIFT EYE NLA - front - Order 6702826 Lift Eye & 17C001028B Bolt - Was 6701523 - C

4

17C1024

BOLT

5

LIFT EYE NLA - Order 6702825 Lift Eye, 6706807 Pin, 4D000020B Nut, 17C000540B Bolt & 87D000005B Nut - Was 6701525 - C

6

6702921

SPACER

7

6560382

PIN, LOCK

8

PIN NLA - Order 6702825 Lift Eye, 6706807 Pin, 4D000020B Nut, 17C000540B Bolt & 87D000005B Nut - Was 6702303 - C

9

83D10

NUT 5 Not in Kit

10

85D6

NUT, 5 not in kit

11

17C640

BOLT 5

12

6720650

INSTRUCTIONS
