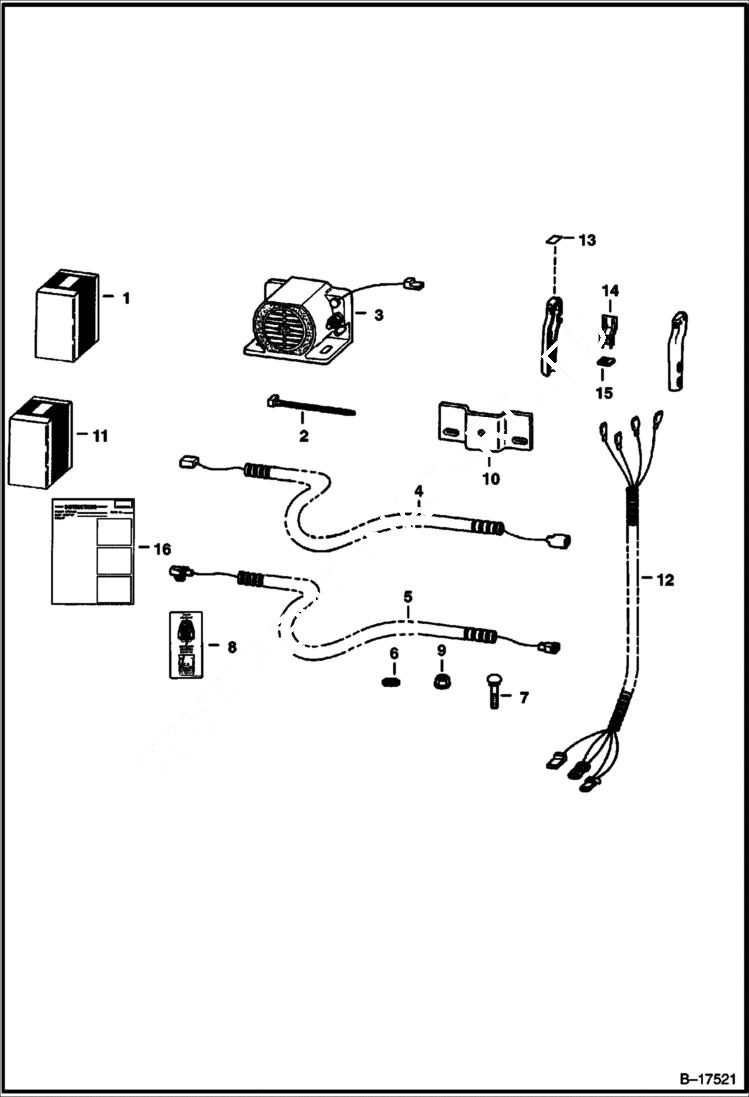

Запчасти Bobcat 700s HORN & ELECTRICAL CONTROLS KIT ACCESSORIES & OPTIONS

1

6703162

HORN KIT Ref. 2-9 & 16 - Loaders equipped W/Cobra style handles do not require Electric Controls Kit - Similar components are standard equipment - If loader is not equipped W/Rear Auxiliaries it is ne

2

6610510

TIE Was 1715312B - A

3

6660294

HORN

4

6701961

HARNESS 113'' (2870,2 mm) long

5

6704408

HARNESS 54'' (1371,6 mm) long - Used W/Cobra style handles

6

25E13

WASHER 5 Was 6E000004B - B

7

84G2516

BOLT Was 7C000412B - B

8

6703727

DECAL horn/aux

9

59D4

NUT 5 Was 83D000004B - B

10

6704641

MOUNT Was 6703391 - A

11

CONTROLS KIT NLA - Ref. 12 - 16 - Was 6703188 - A

12

6702633

HARNESS control kit

13

6702636

PLATE controls

14

SWITCH See BTI324 NLA - leaf - Was 6569451 - A

15

6572087

INSULATOR switch

16

6720761

INSTRUCTIONS For Horn Kit & Elec. Controls Kit
