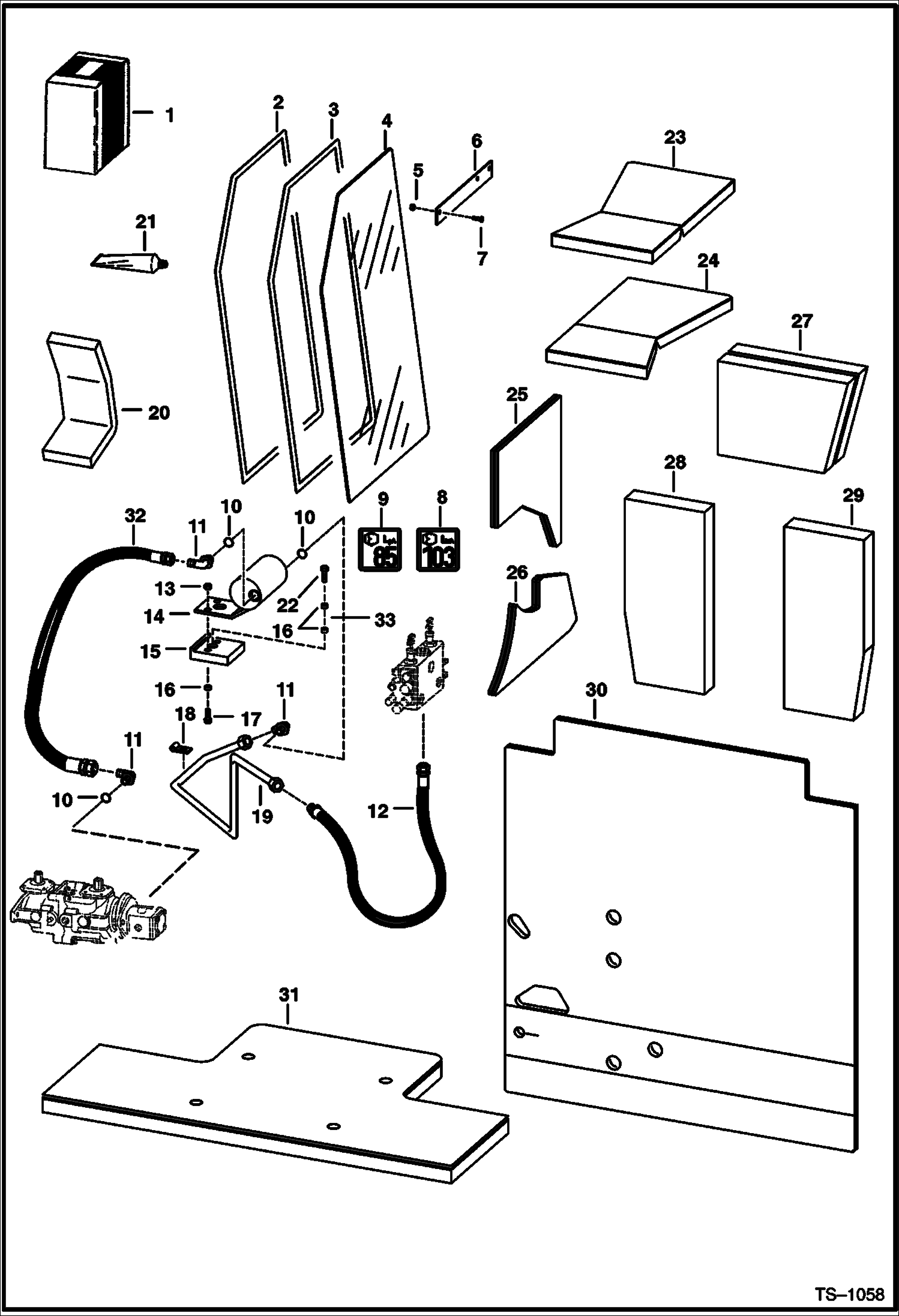

Запчасти Bobcat 700s EUROPEAN ACCESSORIES (Sound Option) ACCESSORIES & OPTIONS

1

KIT SALES - Ref. 2 - 11 & 13 - 21

2

6631549

HOOK scotchmate

3

6631548

LOOP scotchmate

4

6702731

WINDOW, CAB cab

5

83D4

NUT 10 Was 61D000004B - B

6

6700875

RETAINER window

7

35C410

BOLT 5 Was 17C000410B - B

8

6579403

DECAL sound level warning

9

6579385

DECAL sound level warning

10

79K12

O RING 10

11

17K8

FITTING W/Ref. 10

12

6702230

HOSE 28'' (711,2 mm) long - Use W/Ref. 19

12

6662868

HOSE 33.5'' (851 mm) long - Was 6661073 - A

13

85D6

NUT, 5

14

6659982

MUFFLER Was 6703648 - A

15

MOUNT NLA - rubber - Order 6705333 Mount & Ref. 16 & 22 - Was 6703477 - A

15

6705333

MOUNT rubber

16

6562619

BUSHING

17

35C616

BOLT 5

18

30H42

CLAMP

19

6704618

TUBE muffler

20

6703331

INSULATION air inlet

21

6633583

SEALANT, POLYURETHANE 300 ML

22

84G3724

BOLT

23

6732723

INSULATION crossmember - R.H. - Was 6704722 - A

24

6732722

INSULATION crossmember - L.H. - Was 6704721 - A

25

6719332

INSULATION blower housing - Was 6704725 - A

26

6704769

INSULATION blower housing

27

6705848

INSULATION transmission

28

6705849

INSULATION brace - L.H.

29

6705850

INSULATION brace - R.H.

30

6706515

INSULATION cab back - Was 6704778 - A

31

6704754

INSULATION seat pan

32

6705074

HOSE existing hose from loader

33

6715744

BUSHING
