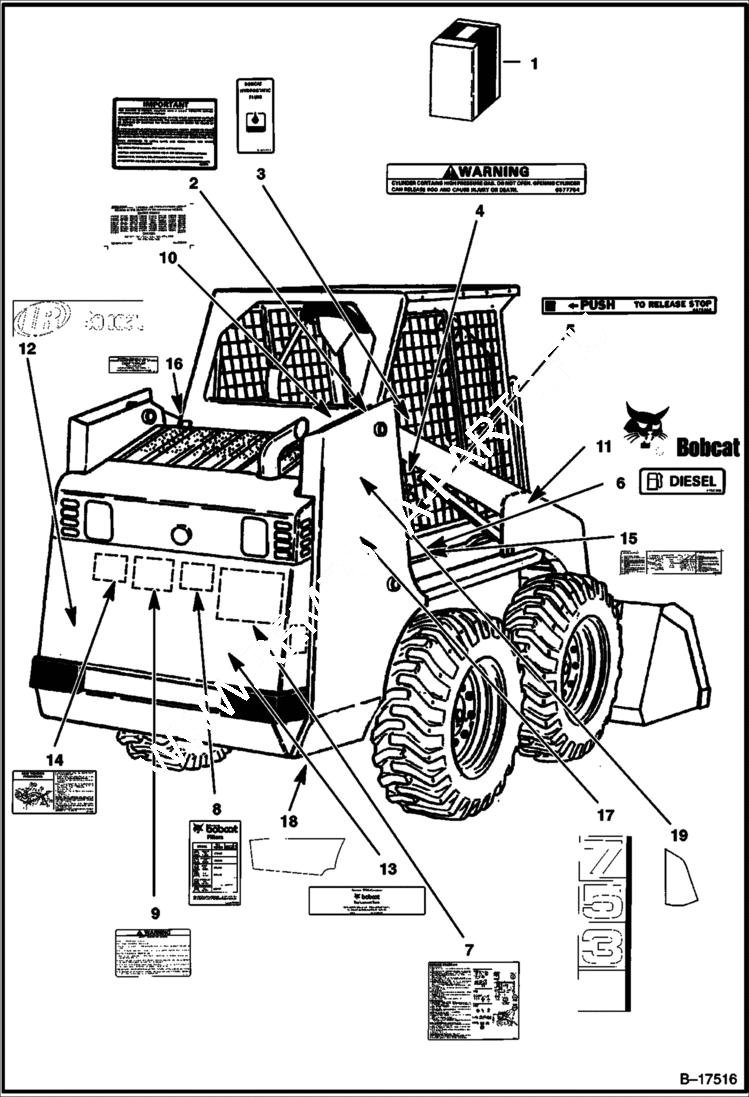

Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

6701897

KIT See Illustration DECALS/ B17515 Ref. 2-15 - decal - Also Includes Ref. 2-16 on this Illustration

2

6560573

DECAL spark arrestor

3

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

4

6577754

DECAL, WARNING 5 gas spring

5

6578368

DECAL, OPERATION push to release stop

6

6700388

DECAL diesel

7

6708212

DECAL service - Was 6578218 - A

8

6709781

DECAL filters - Was 6700237 - A

9

6579511

DECAL warning

10

DECAL NLA - patent - Was 6557224 - C

11

6727309

DECAL, LOGO RH RH - Was 6702826 - A

11

6727308

DECAL, LOGO BOBCAT LH - W/Bobcat head - Was 6702827 - A

12

DECAL NLA - Bobcat Logo - Was 6727307 - A

13

6565200

DECAL, FILTER

14

6705220

DECAL belt tension - for fixed idler

14

6709030

DECAL belt tension - spring loaded idler - Was 6711905 - B

15

6706558

DECAL, OPERATION lift arm support - Was 6701921 - A

16

6708929

DECAL, COOLANT propylene glycol

17

6702824

DECAL model no. R.H. - Not in Kit - Was 6577951 - A

18

DECAL NLA - trim R.H. - Not in Kit - Was 6578541 - A

18

DECAL NLA - trim L.H. - Not in Kit - Was 6578542 - A

19

DECAL NLA - upright patch - R.H. - Not in Kit - Was 6578206 - A

19

DECAL NLA - upright patch - L.H. - Not in Kit - Was 6578205 - A
