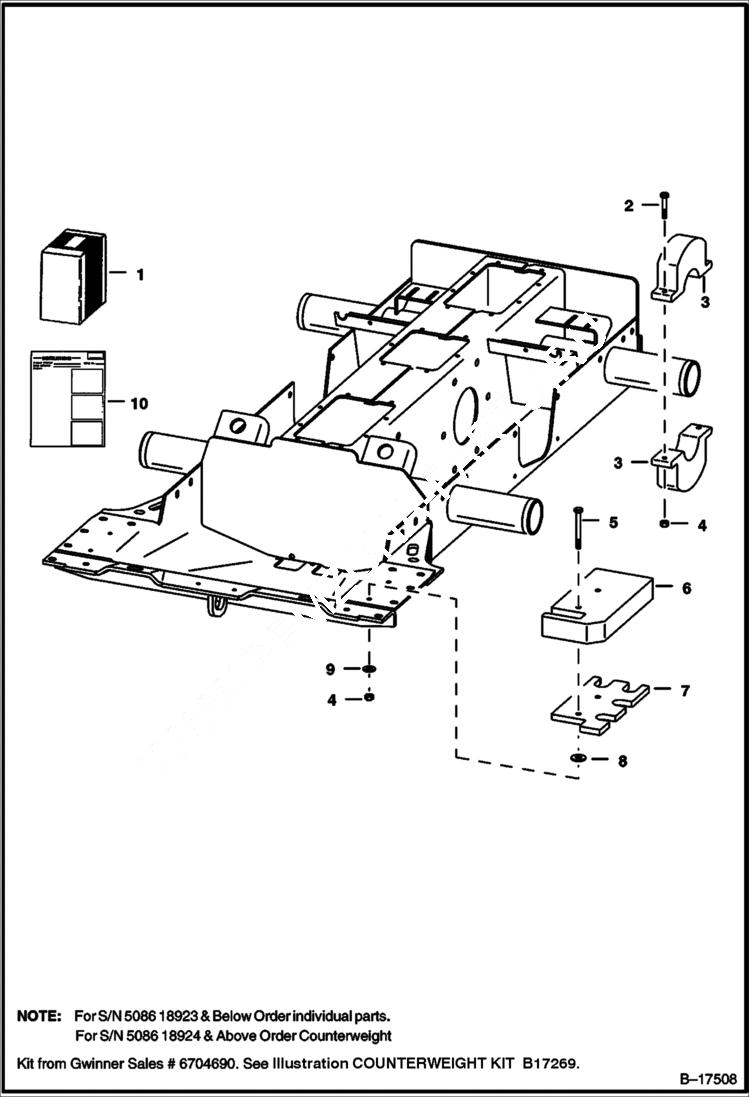

Запчасти Bobcat 700s COUNTERWEIGHT KIT (1350 lb.) ACCESSORIES & OPTIONS

1

KIT NLA - counterweight - Order individual parts - Was SALES - D

1

KIT See Illustration COUNTERWEIGHT KIT/ B17269 NLA - Order Counterweight Kit from Gwinner Sales # 6704690

2

17C640

BOLT 5 Was 35C000636B - B

3

WEIGHT NLA - front axle - 19.1 lbs (8,7 kg) - 2.25'' (57,4 mm) wide - Was 6702453 - A

4

61D6

NUT 5 Was 83D000006B - B

5

17C664

BOLT Was 35C-664 - B

6

6702454

WEIGHT rear - 55.1 lbs. (24,0 kg)

7

6702455

WEIGHT rear - 11.2 lbs. (5,1 kg)

8

6701097

WASHER

9

27E6

WASHER 5

10

6720470

INSTRUCTIONS
