Запчасти Bobcat 700s BUCKET POSITIONING VALVE KIT (S/N 5086 20308 & Above) ACCESSORIES & OPTIONS

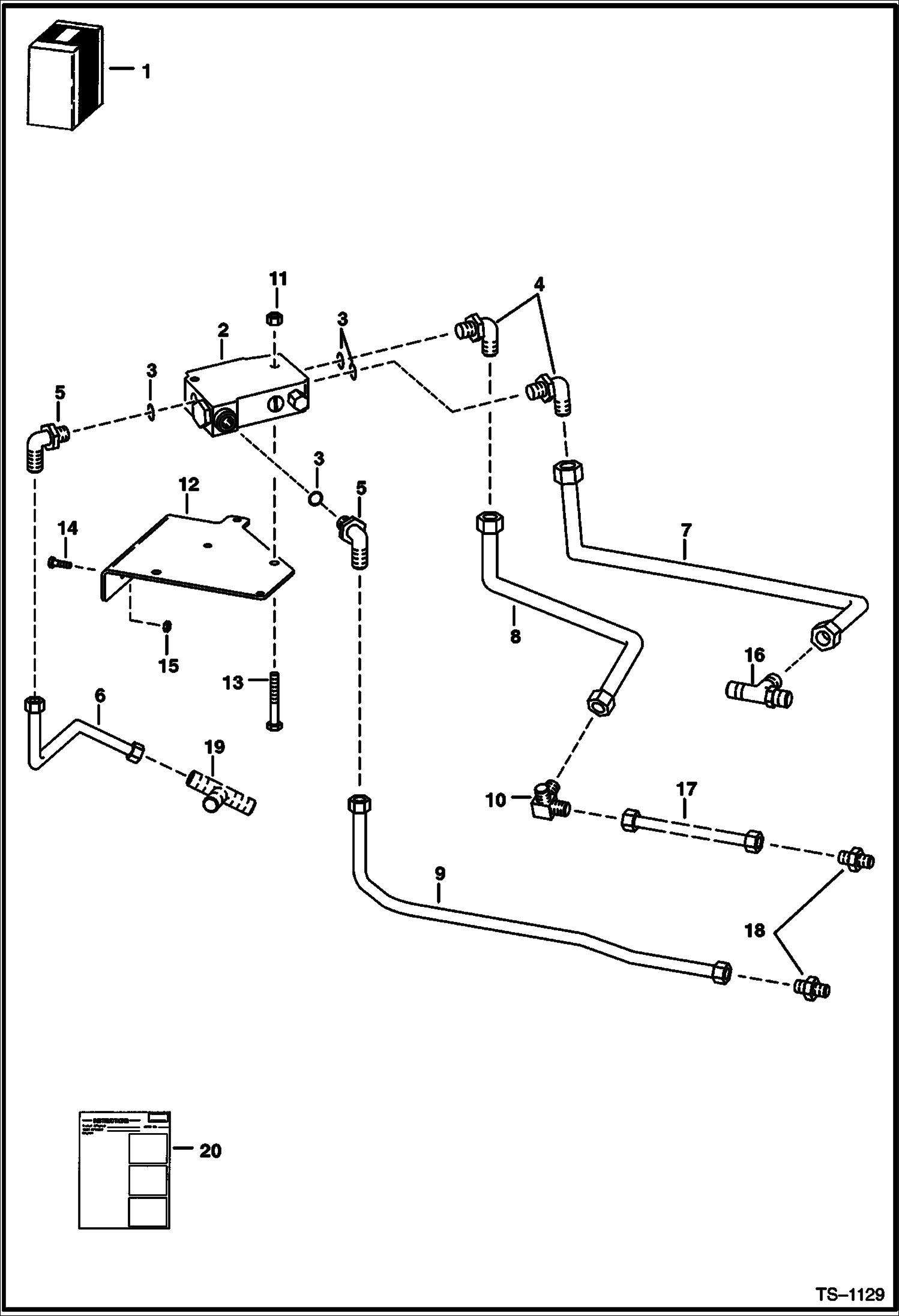

Схема запчастей Bobcat 700s - BUCKET POSITIONING VALVE KIT (S/N 5086 20308 & Above) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6705191

KIT Ref. 2-15 & 20 - BPV equipped w/solenoid - See Installation Instruction 6720321 for other parts required for on/off function

2

VALVE See Illustration BUCKET POSITIONING VALVE/ C3062 - NLA - Order 6673959 valve - if loader is not equipped with an on/off switch, Also Order 6647784 plug, 79K8 O-ring, 6647785 spring & 6647783 loa

3

79K10

O RING 10

4

17K7

ELBOW W/Ref. 3

5

784568

ELBOW W/Ref. 3 - Was 6634982 - A

6

6705068

TUBE

7

6704840

TUBE

8

6704839

TUBE

9

6704837

TUBE

10

6705070

TEE

11

57D5

NUT

12

6704833

BRACKET

13

35C536

BOLT

14

35C412

BOLT

15

57D4

NUT

16

6578183

TEE See Illustration HYDRAULIC CIRCUITRY/ E2163 Not in Kit

17

6705069

TUBE See Illustration HYDRAULIC CIRCUITRY/ E2163 Not in Kit

18

15K7

FITTING See Illustration HYDRAULIC CIRCUITRY/ E2163 Not in Kit

19

10K6

FITTING See Illustration HYDRAULIC CIRCUITRY/ E2163 Not in Kit - Was 10K000007B - B,D

20

6722303

INSTRUCTIONS

Выбрано товаров: 20
