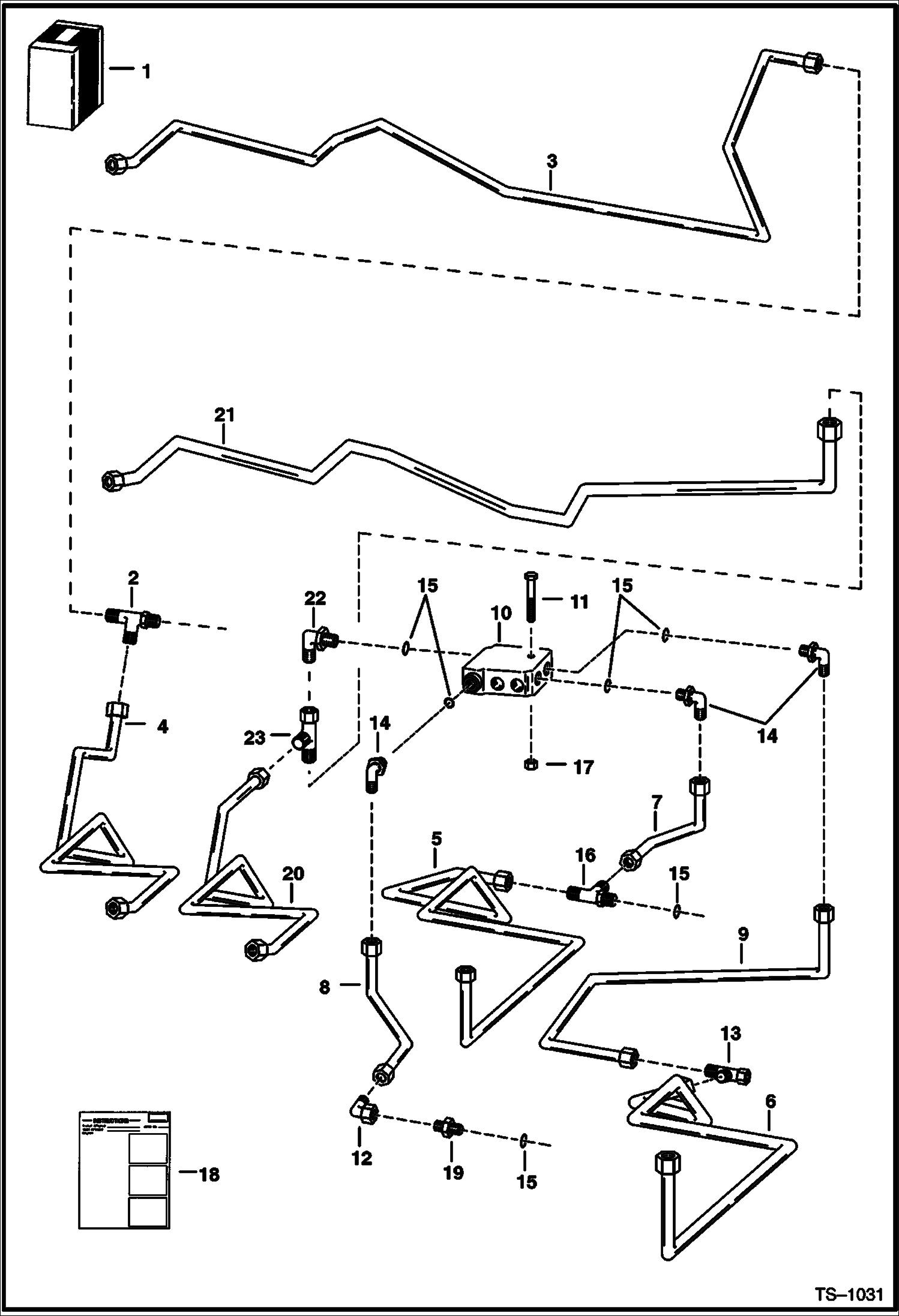

Запчасти Bobcat 700s BUCKET POSITIONING VALVE KIT (S/N 5086 20307 & Below) ACCESSORIES & OPTIONS

1

6579922

KIT Ref. 2-18 & 20-23 - BPV equipped w/solenoid - See Installation Instruction 6720321 for other parts required for On/Off function - Was SALES - D

2

6578183

TEE W/Ref. 15 - Part of Base Equipment

3

TUBE NLA - Order Ref. 21-23 - Was 6579923 - A

4

TUBE NLA - Order Ref. 22 & 23 - Was 6579924 - A

5

6579926

TUBE

6

6579927

TUBE

7

6579929

TUBE

8

6579930

TUBE

9

6579931

TUBE

10

VALVE See Illustration BUCKET POSITIONING VALVE/ C3062 - NLA - Order 6673959 valve - if loader is not equipped with an on/off switch, Also Order 6647784 plug, 79K8 O-ring, 6647785 spring & 6647783 loa

11

17C536

BOLT

12

11K7

ADAPTER Part of Rear Aux. Option

13

13K7

FITTING

14

17K7

ELBOW W/Ref. 15

15

79K10

O RING 10

16

21K7

TEE W/Ref. 15

17

85D5

NUT 5

18

6720007

INSTRUCTIONS

19

15K7

FITTING Not in Kit - Part of Base Equipment

20

6703553

TUBE

21

6703552

TUBE

22

784568

ELBOW W/Ref. 15 - Was 6634982 - A

23

13K6

TEE
