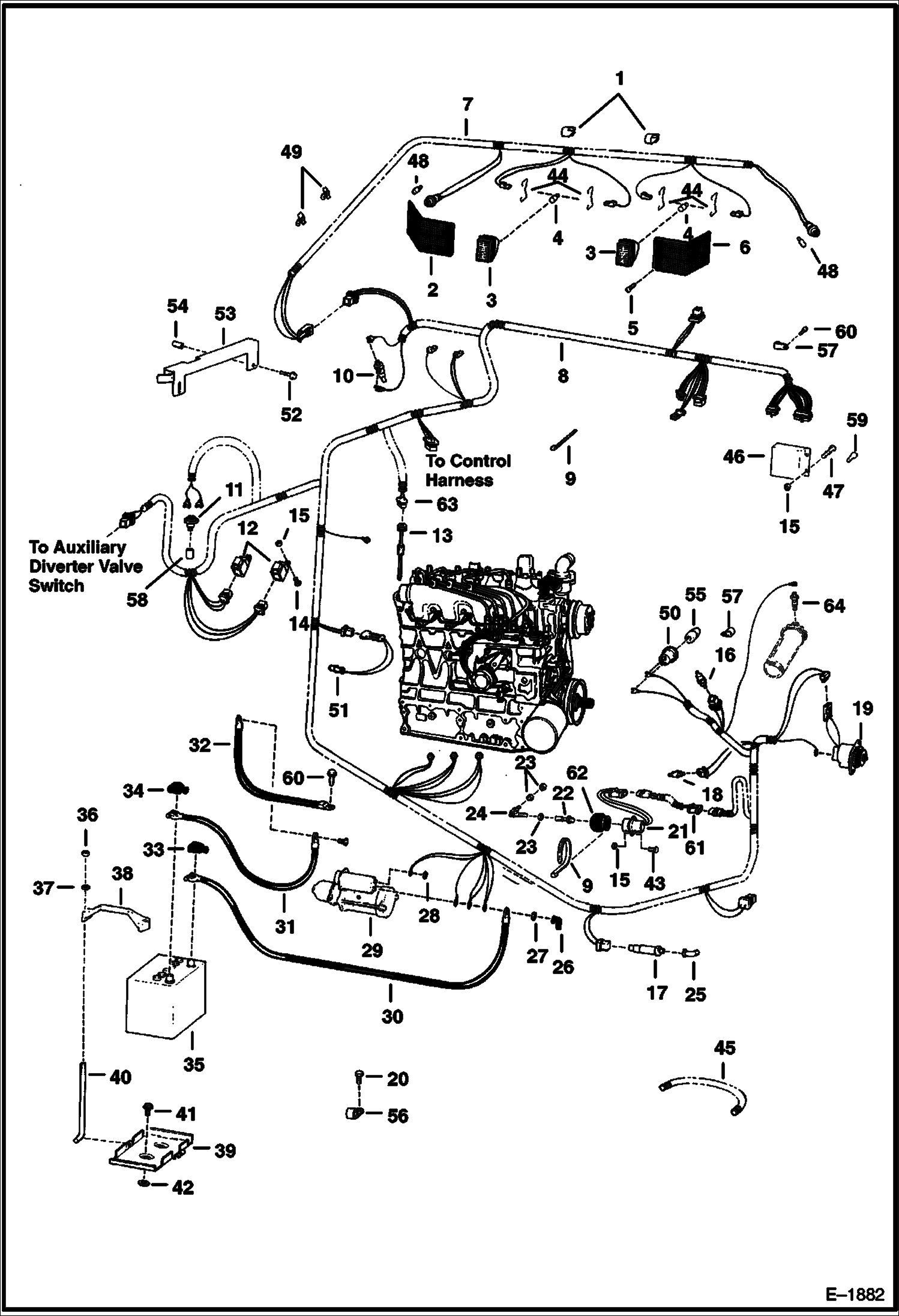

Запчасти Bobcat 700s ENGINE ELECTRICAL CIRCUITRY (S/N 5086 11077 & Below) ELECTRICAL SYSTEM

1

30H33

CLIP

2

6577504

LENS

3

6665922

LAMP W/Ref. 4 - Was 6661353 - A

3

6665431

SOCKET threaded bulb

4

898731

1156 BULB

5

6706517

SCREW Was 6579119 - A

6

6577505

LENS

7

6577648

HARNESS lights

8

6576273

HARNESS engine

9

6610510

TIE Was 1715312B - A

10

6648326

SWITCH coolant level

11

6660316

SWITCH vacuum - Was 6651570 - A

12

6651975

SWITCH magnetic - glow plug

13

SENSOR NLA - fuel - W/ O-ring - Order 6658958 Sensor - Was 6658958 - D

13

7216451

SENSOR, FUEL W/gasket - Was 6680453 - A

13

79K14

O RING 10

13

6717579

GASKET

14

17C412

BOLT 5

15

61D4

NUT 5

16

6654200

SENSOR hydro. temp

17

6660204

SENSOR eng. oil pres. - Was 6649476 - A

18

6654201

SENSOR eng. temp.

19

ALTERNATOR See Illustration ALTERNATOR/ D1760

20

1CM1220

BOLT Was 6CM01220B - B

21

6681513

SOLENOID fuel shut off - Was 6667993 - A

22

6578366

BALL JOINT

23

62D4

NUT

24

6578363

ROD END swivel

25

6707040

ELBOW Was 26F000001B - B

26

6560172

COVER

27

4DM10

NUT

28

4DM5

NUT

29

STARTER See Illustration STARTER/ D2119

30

6564991

CABLE pos. - W/30'' (762 mm) of Ref. 45 - Was 6576276 - B

31

6562905

CABLE ground - Was 6553094 - B

32

6565170

CABLE ground - Was 6576272 - A

33

2356058

BOOT

34

6599652

BOOT

35

6665032

BATTERY, DRY 700 AMP Was 6665031 - A

35

6630153

BATTERY CAP

36

59D5

NUT 5

37

25E15

WASHER

38

6569203

CLAMP

39

6712536

PAN Was 6577809 - A

40

6576280

BOLT

41

84G3716

SCREW 5 Was 35C000616B - A

42

6555455

WASHER

43

17C408

BOLT

44

6701392

CLIP

45

6563505

CONDUIT bulk - Sold Per Foot

46

6667828

BOSS initialized - Was 6667829 - D

46

6666916

BOSS not initialized - Was 6722444 - A

46

6666918

BOSS backup - Was 6661110 - A

47

10C412

BOLT

48

6649481

LIGHT, WEDGE BASE

49

6649923

CLIP

50

6655971

SENSOR hyd. chg. pressure - W/single terminal - Was 6655390 - A

50

6661518

SENSOR hyd. chg. press. - W/double terminal

51

6684037

SENSOR r.p.m. - Was 6679853 - B

52

35C624

BOLT

53

6700464

COVER harness

54

6700416

SPACER

55

6563922

SNUBBER W/Filter

55

6563920

FILTER

56

30H48

CLIP

57

30H50

CLIP

58

6701947

ADAPTER Was 37K000302B - B

59

61G512

BOLT self tapping

60

84G3712

BOLT 5

61

6703137

HARNESS 9'' (228,6 mm) long

62

6664286

BOOT Also Order Ref. 9

63

6646383

CONNECTOR fuel sender

63

6632946

TERMINAL female

64

6660260

SWITCH See Illustration HYDROSTATIC OIL FILTER/ NA1844 filter
