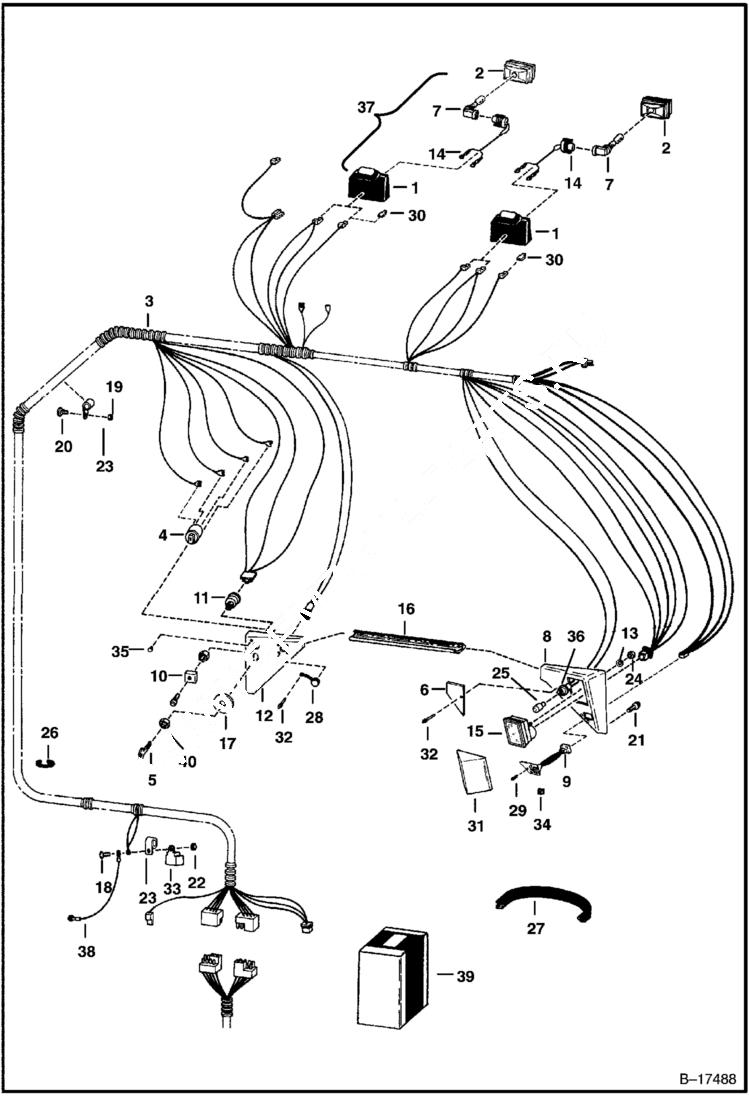

Запчасти Bobcat 700s CAB ELECTRICAL CIRCUITRY (S/N 5086 11078 & Above) ELECTRICAL SYSTEM

1

6578824

HOUSING rubber

2

6649478

BULB HOUSING

3

6705136

HARNESS Was 6704407 - A

4

SWITCH See BTI289 NLA - Order Ref. 39 - ignition - Was 6519592 - A

4

6665606

SWITCH ignition

5

6512809

KEY ignition - For Ref. 4 (NLA/6519592 Switch)

5

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

5

6693241

KEY 10 ignition - single key W/O ring

6

6702678

PLATE service codes

7

6667934

BULB Was 6650111 - A

8

6702660

PANEL R.H.

9

6667903

SWITCH, AUX aux. controls module - Was 6700603 - A

10

6599781

KNOB light switch

11

6512808

SWITCH

12

6702608

PANEL L.H.

13

17E8

WASHER

14

6578528

HARNESS light

15

DISPLAY LCD monitor - mounted w/nuts - NLA - order 7131641 kit - Was 6665923

15

7131641

KIT, DISPLAY LCD LCD monitor - screw mounted - includes screws, display & instructions

15

LCD monitor NLA - LCD monitor mounted w/screws

15

6691063

SCREW

15

6904890

INSTRUCTIONS

16

6578780

CROSSMEMBER

17

PLATE NLA - ignition key - For Ref. 4 (NLA/6519592 Switch) - Order Ref. 39 - Was 6702263 - A

17

6709028

PLATE ignition key - For Ref. 4 (6665606 Switch)

18

10C412

BOLT

19

83D4

NUT 10

20

35C412

BOLT Was 35C000410B - B

21

6702642

SCREW

22

61D4

NUT 5

23

30H54

CLIP

24

12D8

NUT Was 85D000004B - B

25

6578357

BULB

26

MOULDING NLA - Order Ref. 27 - 6'' (152,4 mm) long

27

6630138

MOULDING bulk - Sold Per Foot

28

6651703

CAP

29

6669225

BOLT Was 58G000408B - A

30

6519548

CONNECTOR

31

6700487

SHIELD snap in place

32

6704892

RIVET Was 6658512 - A

33

6651975

SWITCH magnetic

34

6660594

BUTTON on/off

35

6660955

PLUG

36

6649331

SOCKET light - W/ 6'' leads

37

6577801

LIGHT Ref. 1, 2, 7 & 14

38

6705978

WIRE ground - See S/L Feb 93

39

6724282

SWITCH KIT Ref. 4, 5 & 17

40

6598721

NUT For Ref. 4 (NLA/6519592 Switch)

40

6674202

NUT For Ref. 4 (6665606 Switch)
