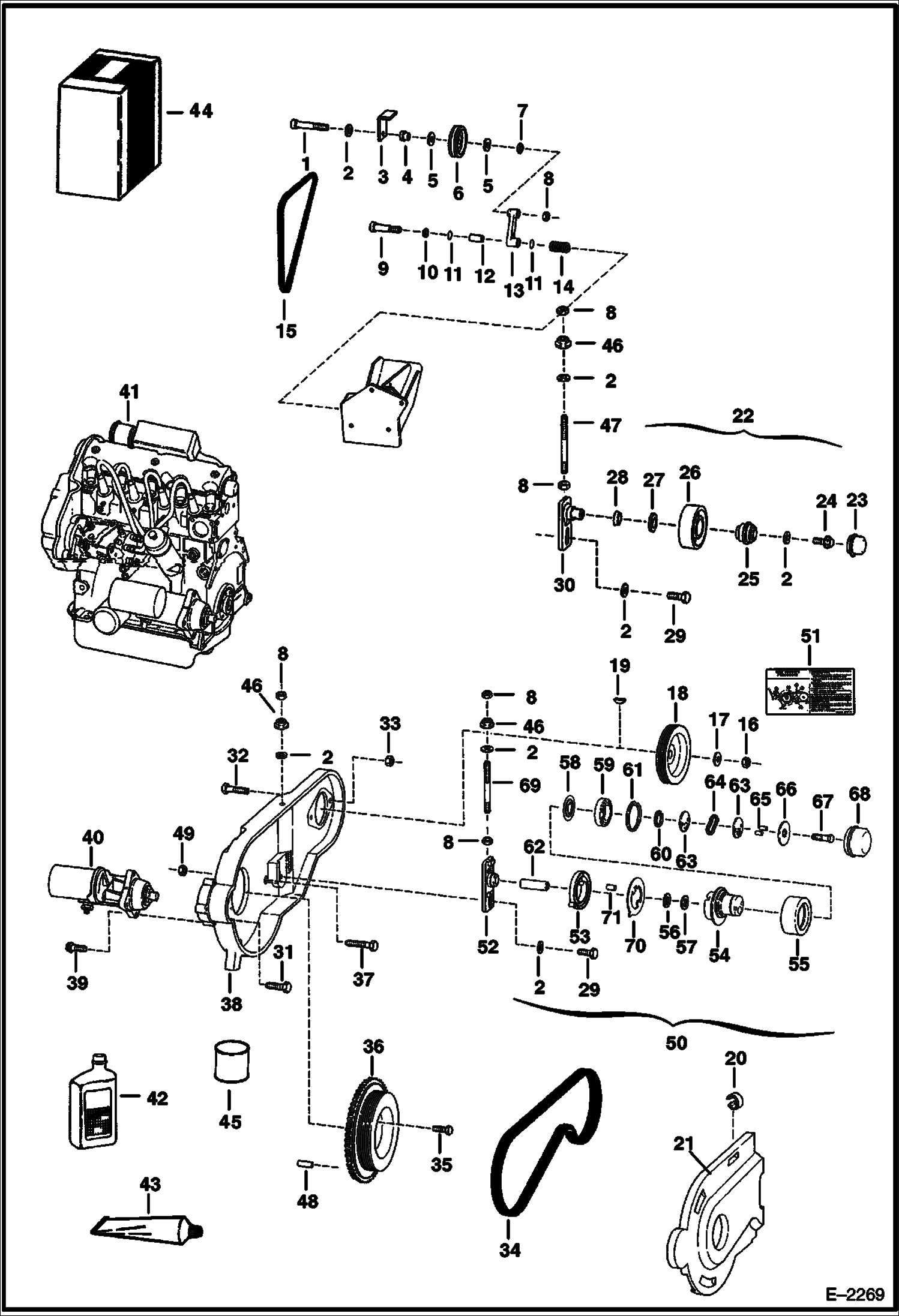

Запчасти Bobcat 700s ENGINE & ATTACHING PARTS (Belt Drive System) POWER UNIT

1

73G656

SCREW

2

6704484

WASHER thrust

3

6702474

RETAINER fan drive idler belt

4

6704443

BUSHING spacer

5

6660995

GREASE RING grease

6

6662997

PULLEY, FAN DRIVE IDLER fan drive idler

7

6704444

WASHER

8

61D6

NUT 5

9

38C820

SCREW shoulder

10

6655781

BEARING

11

6704820

O-RING

12

BEARING NLA - Bronze - Was 6655780 - A

12

6670682

BEARING Nylon

13

6725212

ARM W/Ref 12 Was 6703507 - A

14

6700722

SPRING

15

6709135

BELT fan drive

16

92D12

NUT

17

6576033

WASHER

18

6708901

PULLEY to hyd. pump

19

6J807

KEY, WOODRUFF

19

6682261

KEY square key

20

6703022

CLIP

21

6708993

SHIELD

22

IDLER ASSY. NLA - fixed - Ref. 2 & 23-28 & 30 - Order Ref. 50 & 51 - When Converting From A Fixed Idler Assy. To A Spring Loaded Idler Assy. It Is Necessary To Also Order Belt Tensioning Decal Ref. 51

23

6660967

CAP grease

24

35C612

BOLT

25

BEARING Order Ref 44 NLA

26

6704416

PULLEY Idler - Also Order Ref. 44

27

6661066

SEAL

28

6661070

SLEEVE Wear - Also Order Ref. 27

29

17C620

BOLT

30

6708607

BRACKET

31

1CM1045

BOLT

32

17C828

BOLT hyd pump mount

33

85D8

NUT, 5

34

6667322

BELT pump drive

35

6662545

BOLT Was 6667663 - A

36

6709768

FLYWHEEL assy.

36

6708185

RING GEAR

37

1CM1070

BOLT

38

6708764

MOUNT

39

35C620

BOLT 5

40

STARTER See Illustration STARTER/ B20055

41

ENGINE See Illustration ENGINE/ B20056

42

6661405

OIL

43

6633583

SEALANT, POLYURETHANE 300 ML Used W/Ref 23 and 28 & 30

44

6722248

REPAIR KIT bearing - Ref. 23, 25, 27 & 28

45

6903122

GREASE, MULTI PURPOSE #2 - 10 Used W/Ref 50 - Was 6599719 - A

46

57D6

NUT 5

47

6708598

ROD

48

6662353

DOWEL

49

4DM10

NUT

50

6901216

IDLER, BELT DRIVE ASSY Spring Loaded - Ref. 52-68, 70 & 71 - When Converting From A Fixed Idler Assy. To A Spring Loaded Idler Assy. It Is Necessary To Also Order Belt Tensioning Decal Ref. 51 & Threa

50

6714212

PULLEY ASSY. Ref. 54-62

51

6711905

DECAL belt tension

52

6735883

BRACKET Was 6708767

53

6705491

SPRING torsion

54

6711699

HUB ASSY.

55

6704391

PULLEY idler

56

6685735

SEAL Was 6661112 - A

57

6703168

BEARING thrust

58

6664209

SEAL

59

6668114

BEARING ball

60

6658536

RING

61

6658847

RING

62

6682442

SLEEVE bronze sleeve - Was 6704393

63

6705231

WASHER

64

6710585

WASHER wave spring

65

6713370

PIN Was 14J001808B - B

66

6705232

WASHER

67

43C610

BOLT pre-applied thread locker - Was 17C610 - B

68

6708770

CAP dust

69

6708771

ROD threaded - See Note - Was 6709771 - D

70

PLATE Order Ref 54 NLA - WAS 6711558 - A

71

PIN Order Ref 54 NLA - WAS 6707463 - A
