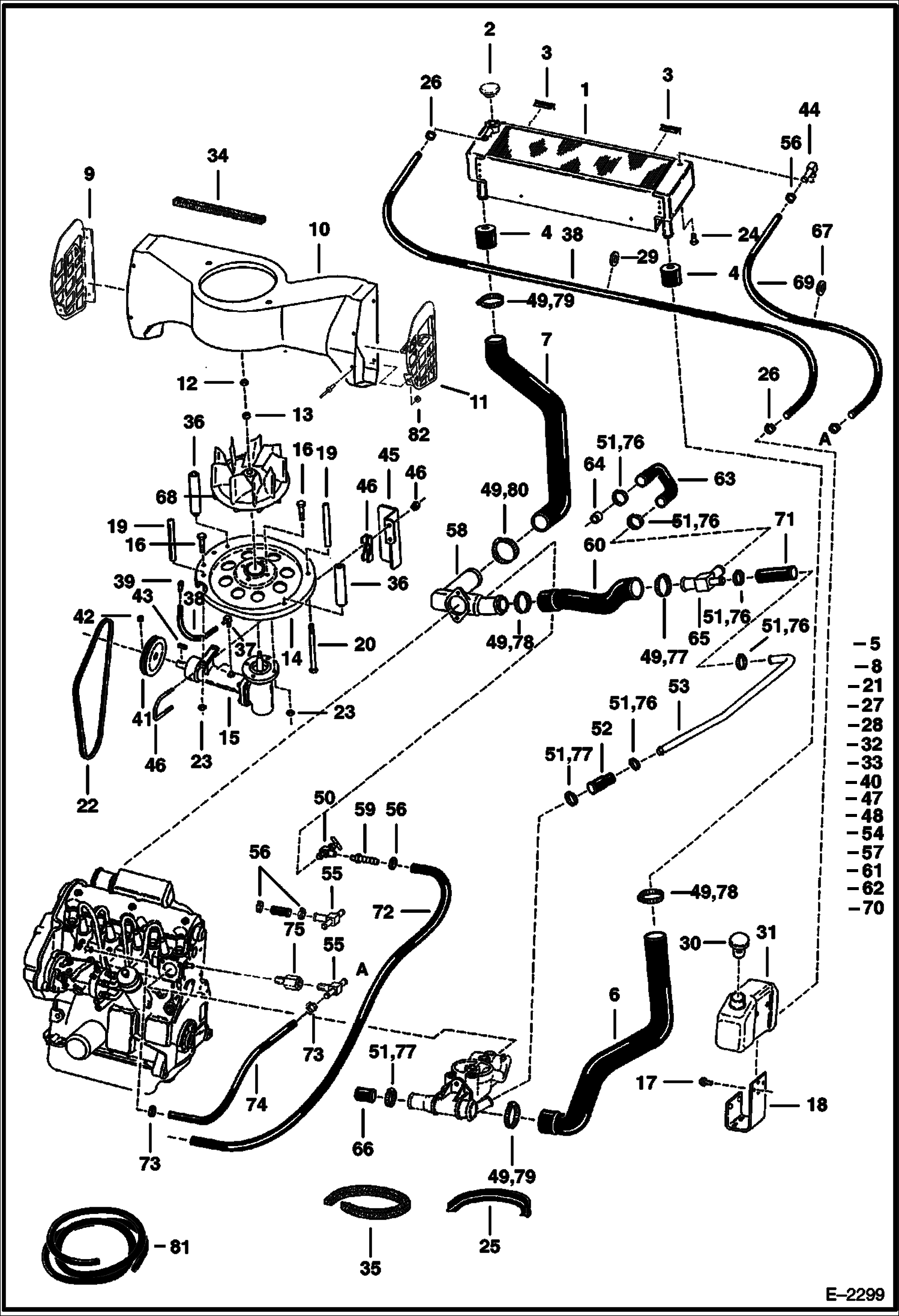

Запчасти Bobcat 700s COOLING SYSTEM POWER UNIT

1

6666384

EXCHANGER, WATER RADIATOR W/Ref. 2

2

6646678

CAP 14 PSI - Was 6702797 - D

3

MOULDING NLA - 3'' (76,2 mm) - Order Ref. 25

4

6726433

SPACER Was 6704829 - A

5

CLAMP NLA - Was 44H000012B - A

6

6710001

HOSE

7

6709537

HOSE

8

6706517

SCREW Use W/Plastic Louvers

8

6661209

RIVET Use W/Steel Louvers

9

LOUVER NLA - L.H. - plastic - order 6716571 Louver & (4) of 6706517 Screw - Was 6700419 - A

9

LOUVER NLA - R.H. - Steel - order 6716571 Louver & (4) of 6706517 Screw - SEE NOTE - Was 6713308 - A

9

6716571

LOUVER, PLASTIC LH plastic - LH

10

6708978

HOUSING

11

LOUVER NLA - R.H. - plastic - order 6716572 Louver & (4) of 6706517 Screw - Was 6700418 - A

11

LOUVER NLA - R.H. - steel - order 6716572 Louver & (4) of 6706517 Screw - SEE NOTE - Was 6713306 - A

11

6716572

LOUVER, PLASTIC RH RH - plastic

12

96D8

NUT Was 92D-8 - B

13

6701097

WASHER Was 6803867 - A

14

7107175

INLET 4-slot - Was 6717478 - A

15

HOUSING ASSY See Illustration COOLING FAN DRIVE ASSY./ TS1001

16

17C616

BOLT 5

17

84G3708

SCREW

18

6709415

MOUNT Was 6571814 - A

19

6577382

SPACER

20

17C6116

BOLT

21

6732457

WASHER Step

22

6709135

BELT fan

23

61D6

NUT 5

24

35C508

BOLT

25

6649402

MOULDING bulk - Sold Per Foot

26

42HS04

CLAMP, HOSE Was 6515575 - A

27

HOSE NLA - 36'' (914,4 mm) - Order Ref. 48

28

6577822

HOSE bulk - sold per foot

29

1303932

GROMMET

30

6702797

CAP

31

6576660

TANK, WATER COOLANT W/bottom molded barbed elbow

32

17C612

BOLT 5

33

ENGINE See Illustration ENGINE/ B20056

34

FOAM NLA - 42'' (1067 mm) - Order Ref. 35

35

6511855

SEAL self adhesive - bulk - sold per foot

36

SPACER NLA - Order Ref. 82 & (2) of Ref. 83 - Was 6704907 - A

37

6657376

ELBOW

38

HOSE NLA - 19-1/2'' (495,3 mm) - Order Ref. 28

39

6680970

BREATHER Was 6670627 - A

40

6610510

TIE

41

6579541

PULLEY

42

6715143

SET SCREW Was 6712006 - A

43

7J2208

KEY Was 7J002104B - B

44

FTG ELBOW See BTI311 NLA - Was 6599481 - A

44

FTG ELBOW NLA - Was 6599481 - A

44

6713983

ELBOW See BTI311 Restrictor

44

6713983

ELBOW

45

6708886

SHIELD belt

46

6626631

CLAMP

47

6713984

HOSE bulk - Sold Per Foot

48

6667189

HOSE bulk - sold per foot

49

44H24

CLAMP worm gear

50

6512138

VALVE coolant

51

44H16

CLAMP worm gear

52

6708663

HOSE

53

6710199

TUBE

54

6565977

HOSE

55

TEE NLA - Order 6710947 & Ref. 75 - Was 6709998 - A

55

55

6710947

TEE

55

6713982

TEE

55

6713982

TEE

56

CLAMP Was 44H000010B - A

57

6709738

HOSE bulk - Sold Per Foot

58

6709412

WATER INLET

59

6513421

CONNECTOR

60

6710200

HOSE

61

44H20

CLAMP

62

6578170

HOSE bulk - Sold Per Foot

63

6710157

HOSE

64

6708995

RESTRICTOR

65

6710201

TEE

66

6710156

CAP

67

1023368

GROMMET

68

6715142

FAN fan - Was 6700334 - A

69

HOSE NLA - 36'' (914 mm) - .375 I.D.

69

(9,5 mm) - Order Ref. 57

69

HOSE NLA - 36'' (914 mm) - .312 I.D.

69

(7,9 mm) - Order Ref. 47

70

HOSE NLA - Was 6710044 - D

71

HOSE NLA - 2.75'' (69,8 mm) - Order Ref. 62

72

HOSE NLA - 48'' (1219,2 mm) - Order Ref. 57

72

72

HOSE NLA - 48'' (1219,2 mm) - Order Ref. 47

72

73

44H6

CLAMP

74

HOSE NLA - 25'' (635 mm) - .375 I.D. (9,5 mm) - Order Ref. 57

74

74

HOSE NLA - 25'' (635 mm) - .312 I.D. (7,9 mm) - Order Ref. 47

74

75

6710946

ADAPTER

76

CLAMP NLA - constant tension - Was 5HM-32 - A

77

5HM35

HOSECLAMP constant tension

78

5HM42

HOSECLAMP constant tension

79

5HM46

CLAMP constant tension

80

5HM50

CLAMP constant tension

81

25E10

WASHER Use W/Steel Louvers

82

6732318

SPACER
