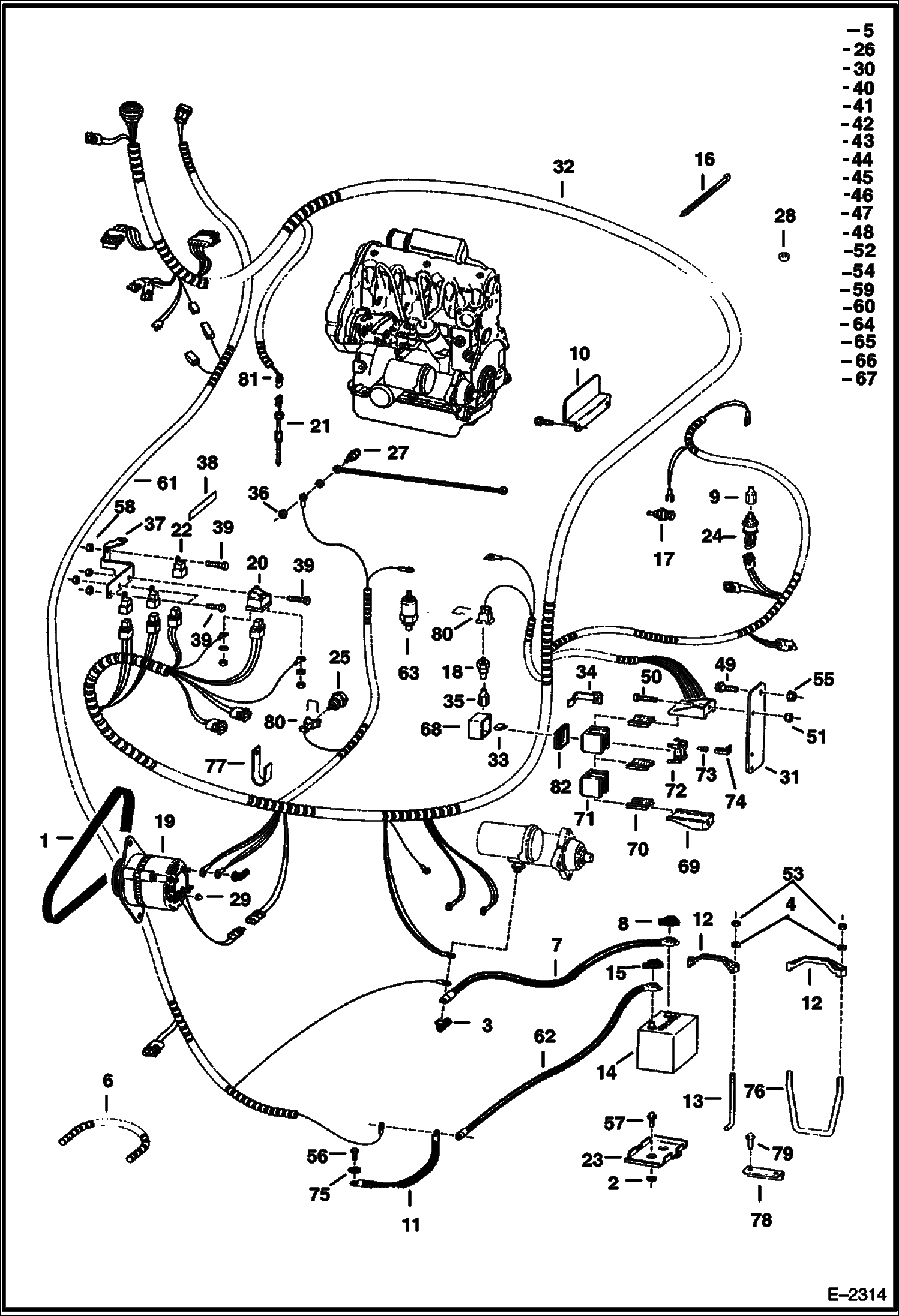

Запчасти Bobcat 700s ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6520553

BELT alternator

2

6555455

WASHER

3

6560172

COVER

4

25E15

WASHER

5

SHIELD NLA - Was 6565058 - D

6

6563505

CONDUIT

7

6710458

CABLE positive - 41 in. long

8

2356058

BOOT

9

6563922

SNUBBER

9

6563920

FILTER

10

6710445

BRACKET

11

6563025

CABLE negative

12

6569203

CLAMP

13

6576280

BOLT

14

6665917

BATTERY 425 CCA - Use W/Ref. 23

14

6665031

BATTERY 625 CCA - Use W/Ref. 23

14

6630154

CAP gang - Danger

14

6630155

CAP gang - Poison

14

CAP NLA - gang - Tilt Tite - Was 6514898 - A

15

6599652

BOOT

16

6610510

TIE nylon

17

6632633

SWITCH hyd temp

18

6658818

SENDER eng temp - threaded connector

19

ALTERNATOR See Illustration ALTERNATOR/ C3312

20

RELAY, PREHEAT NLA - Was 6660510 - A

21

SENSOR NLA - Fuel - W/O-ring - Order 6667847 Sensor - Was 6658958 - A

21

25K40102

O RING 10

21

6667847

SENDER Sensor - Fuel - W/Gasket

21

6717579

GASKET

22

6670312

SWITCH, MAGNETIC relay - Was 6665005 - A

23

PAN BATTERY NLA - for Use W/6665917 battery - 10'' Order 1 - 6712536 Pan, 1 - 6712653 Bracket & 2 84G003110B bolts - Was6709531 - A

23

6712536

PAN for Use W/6665031 battery - 13'' Was 6577809 - A

24

6670705

SWITCH, PRESS OIL HYD hyd. charge pressure - W/3 Pin Molded Connector - Was 6665372 - A

25

6666212

SWITCH eng. oil pressure

26

6662426

CABLE glow plug - Was 6667371 - A

27

6667370

GLOW PLUG

28

6704753

PLUG

29

6709095

NUT ACORN CAP

30

6711682

HARNESS Was 6709445 - C

30

6710500

HARNESS side console

31

6709243

MOUNT fuse

32

6662427

WASHER

33

6707620

FUSE, 10A MINI 5

33

6707621

FUSE, 15A MINI 5

33

6707623

FUSE, 25A MINI 5

33

6674099

BREAKER, 25A

34

6708437

CLIP

35

6709532

ADAPTER

36

6667373

NUT

37

6709745

MOUNT relay

38

6709909

DECAL relay

39

17C410

BOLT 10

40

17C412

BOLT 5

41

17C648

BOLT 5

42

1CM820

BOLT

43

4DM5

NUT

44

4DM10

NUT

45

25E14

WSHR

46

30H60

CLIP

47

31H46

CLAMP

48

35C516

BOLT 10

49

35C616

BOLT 5

50

45G1212

BOLT

51

50D12

NUT

52

55D4

NUT

53

59D5

NUT 5

54

83D5

NUT 5

55

83D6

NUT 5

56

84G3712

BOLT 5

57

84G3716

SCREW 5

58

85D4

NUT 5

59

85D6

NUT, 5

60

95D6

NUT

61

6710313

HARNESS

61

6710313

HARNESS

61

6712523

HARNESS

61

6712523

HARNESS

62

6710459

CABLE negative

63

6662552

SOLENOID fuel shut-off - Was 6667264 - A

64

6667374

NUT

65

6662423

WASHER

66

6662421

WASHER

67

6667373

NUT Was 6662422 - A

68

6665358

COVER , FUSE

69

6665369

MOUNT fuse

70

6665411

WEDGE red

71

6665356

BLOCK fuse - W/Ref. 82

72

6665357

LOCK yellow

73

6650107

SEAL

74

PIN NLA - female - Order 6668719 Pin for 16 Guage wire - Order 6668720 Pin for 14 Guage wire - Was6648311 - A

75

6E6

WASHER

76

6712640

BRACKET

77

6713314

BRACKET

78

6712653

BRACKET Use to hold 10'' Battery in place

79

84G3110

SCREW

80

6671630

CONNECTOR W/Clip

81

6646383

CONNECTOR

81

6632946

TERMINAL female

82

6671528

SEAL green square
