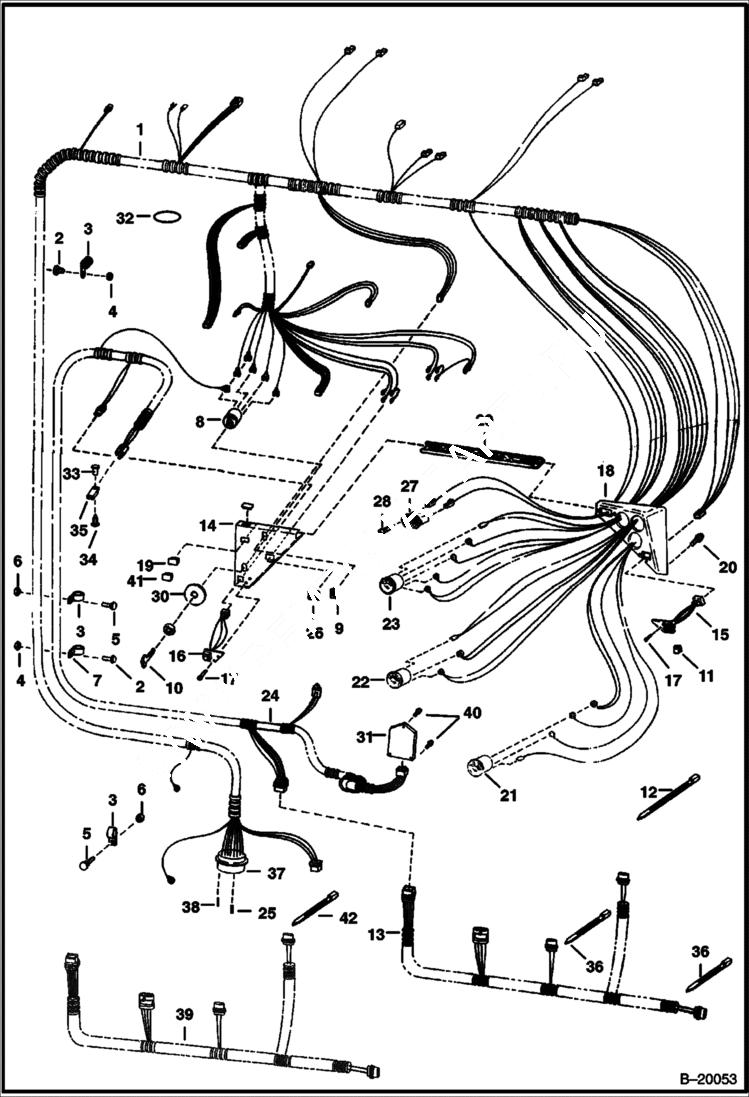

Запчасти Bobcat 700s CAB ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6709910

HARNESS

1

6709910

HARNESS

1

6710501

HARNESS

1

6710501

HARNESS

2

35C410

BOLT 5

3

30H56

CLIP

4

83D4

NUT 10

5

10C412

BOLT

6

61D4

NUT 5

7

30H29

CLAMP

8

6665606

SWITCH

8

6674202

NUT

9

6667319

LIGHT glow plug

10

KEY NLA - includes two keys W/ring - Order 6693241 - Was 6709527 - A

10

6693241

KEY 10 ignition - single key W/O ring

11

6660594

BUTTON on/off

12

6610510

TIE

13

6706876

HARNESS Ref. 39

13

6710313

HARNESS Ref. 39

14

6708425

PANEL L.H.

15

6667903

SWITCH, AUX aux. controls module - 4 pin conector - W/Ref. 11 - Was 6700603 - A

16

6667905

SWITCH traction override - Was 6706995 - A

16

6673005

SWITCH Traction/Seat Sensor Override

17

6669225

BOLT Was 58G000408B - B

18

6706896

PANEL R.H.

19

6665314

PLUG Was 6719038 - A

20

6702642

SCREW

21

GAUGE NLA - eng temp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

21

6669663

GAUGE eng temp - W/O clamp

22

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

22

6669664

VOLTMETER W/O clamp

23

FUEL GUAGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

23

6669665

FUEL GUAGE W/O clamp

24

6710312

HARNESS

24

6710312

HARNESS

24

6712134

HARNESS, CONTROLLER

24

6712134

HARNESS, CONTROLLER

25

6664040

PIN

26

6636018

LIGHT indicator

27

6664886

HOURMETER

28

65G608

SCREW

29

6578780

CROSSMEMBER

30

6709027

PLATE

31

CONTROLLER See Illustration SEAT SENSOR OVERRIDE/ B17268 NLA - ORDER KIT 6716458 OR 6716460 (HAND CONTROLS) - WAS 6668767 - A

31

6680411

CONTROLLER Use in kit 6717700 & 6717702 - Was 6673002

32

6707674

PLUG Round plugs 1.28'' (32,5mm) diameter hole in Cab

33

6665321

RIVET plastic male

34

6665322

RIVET plastic female

35

6665000

CLIP

36

6665527

TIE never modify

37

6664584

CONNECTOR Also Order Ref. 25 (4) & 38 (20) - Was 6665683 - A

38

6664827

PIN

39

6712523

HARNESS for relocation of tilt lock valve solenoid to control valve

39

6712523

HARNESS

40

91G412

SCREW Was 17C000410B - B

41

6668814

SWITCH Bucket Position on/off

42

6610510

TIE Yellow - Was 6671037 - D
