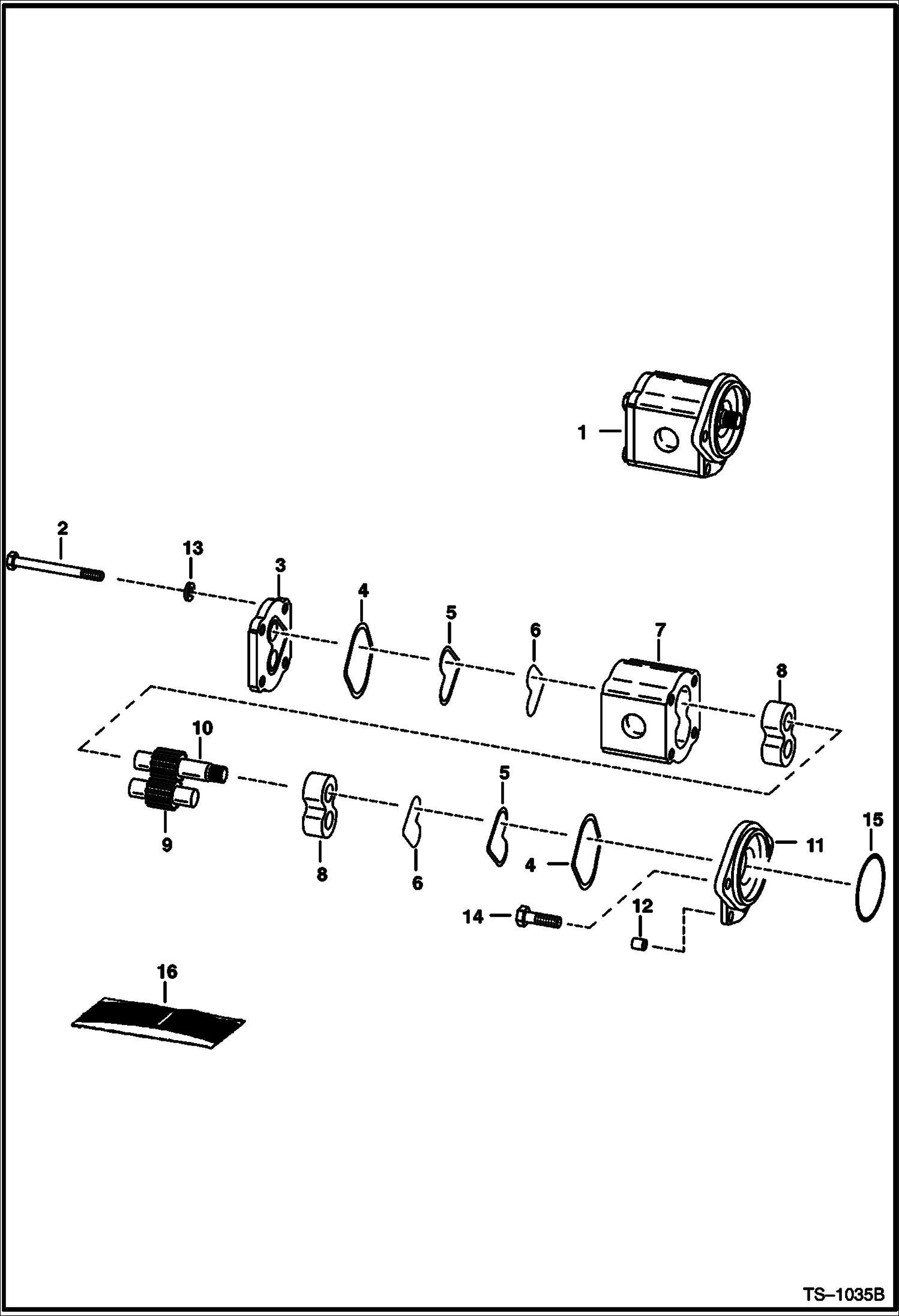

Запчасти Bobcat 700s GEAR PUMP (Export) (B5501-34727) (Black) HYDROSTATIC SYSTEM

1

PUMP NLA - W/Ref. 2 - 13 - Order 6669385 - Mounts to tandem hydrostatic pump model 4355047 4355065 - Was 6667723 - A

2

BOLT NSS

3

COVER

4

O-RING NSS - seal

5

SEAL NSS

6

RING NSS

7

BODY NSS

8

BEARING NSS

9

GEAR NSS - idler

10

GEAR NSS - drive

11

COVER

12

DOWEL NSS

13

WASHER NSS

14

6650679

BOLT

15

6645080

O-RING O.D. of pump

16

6671041

SEAL KIT Ref. 4 - 6 - Was 6666340 - A
