Запчасти Bobcat 700s HYDROSTATIC PUMP 4355035 4355064 & 4355032 4355063 HYDROSTATIC SYSTEM

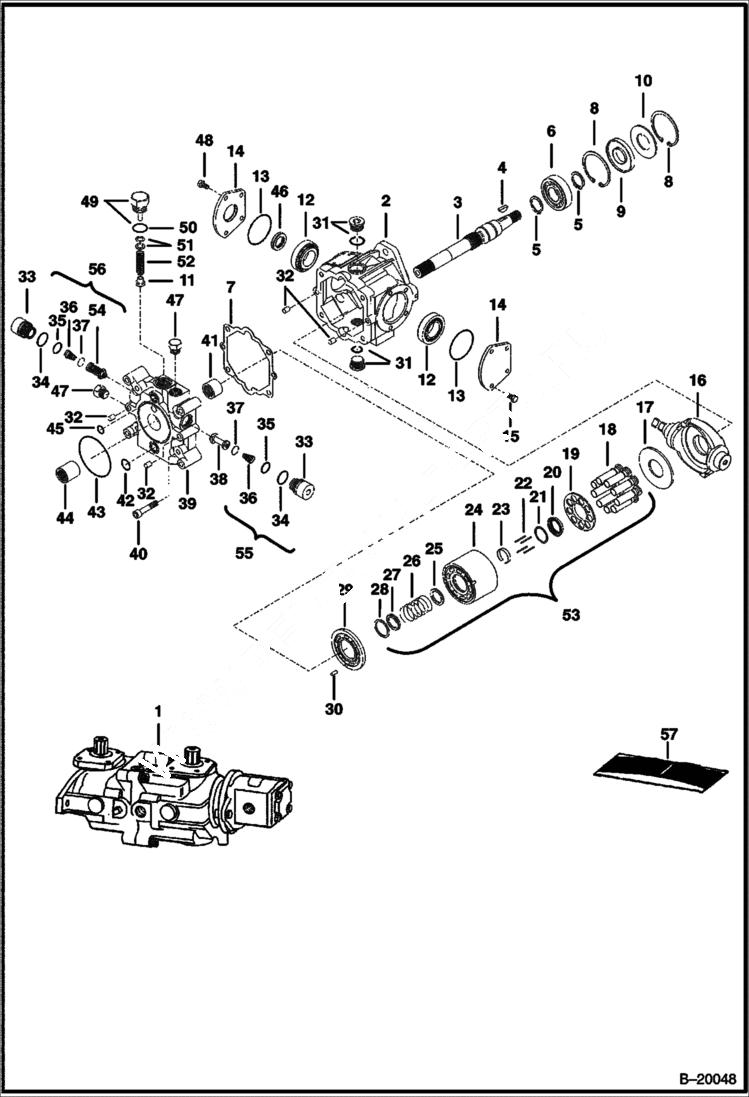

Схема запчастей Bobcat 700s - HYDROSTATIC PUMP 4355035 4355064 & 4355032 4355063 HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

PUMP NLA - Complete W/Gear Pump - 4355035 - Order 6669466 Pump Was 6669012 - A

1

PUMP NLA - Model 4355064 - Complete W/Gear Pump - must use brackets 6576196 & 6706096 from old pump - Order 6669077 REM (Pump, hyd complete) Was 6669466 - A

1

PUMP NLA - Complete W/Gear Pump - 4355032 - Export - Order 6669467 Pump - Was 6669013 - A

1

PUMP NLA - Complete W/Gear Pump - 4355063 - Order 6669466 pump - Was 6669467 - A

2

6669402

HOUSING

3

SHAFT NLA - Order 6682260 & 6682261 key - W/Woodruff key - Was 6669408 - A

3

6682260

SHAFT W/square key

4

6J807

KEY, WOODRUFF

4

6682261

KEY Square

5

658128

RING, SNAP Was 6588128 - D

6

654299

BEARING

7

6650634

GASKET

8

669863

RING, SNAP

9

6687191

SEAL, OIL Was 6645090 - A

10

6669409

WASHER

11

6650652

POPPET charge releif

12

6669411

BEARING

13

6660814

O-RING

14

6657068

COVER

15

6650668

BOLT

16

6669404

SWASH PLATE

17

6650627

PLATE

18

PISTON ASSY NSS

19

RETAINER NSS

20

RETAINER NSS - guide

21

6666338

WASHER

22

6650629

PIN

23

6650630

RETAINER

24

BLOCK NSS

25

WASHER NSS

26

SPRING NSS

27

WASHER NSS

28

WASHER NSS

29

6669401

VALVE PLATE

30

6650636

PIN

31

47K8

PLUG

31

79K12

O RING 10

32

6518460

PIN

33

PLUG NLA - Order Ref. 55 or 56 - Was 6657070 - A

34

6657028

O-RING

35

79K8

O RING 10

36

SPRING NLA - Order Ref. 55 or 56 - Was 6650656 - A

37

RETAINER NLA - Order Ref. 55 or 56 - Was 6657071 - A

38

CHECK VALVE NLA - poppet - Order Ref. 55 or 56 - Was 6650669 - A

39

7023162

CAP, END Was 6669406 - A

40

6650637

BOLT

41

6650635

BEARING

42

6650647

O-RING

43

6645081

O-RING

44

6650675

COUPLER

45

6650646

O-RING

46

6678226

SEAL, OIL Was 6673881 - A

47

6645086

PLUG

48

1CM820

BOLT

49

6650648

PLUG charge relief

50

79K10

O RING 10

51

6669410

KIT, SHIM charge relief

52

6658301

SPRING

53

6661758

BLOCK ASSY W/Ref. 18 - 28

54

RELIEF VALVE NLA - 5000 PSI (345 bar) for Pump Model 4355035 & 4355032 - Order Ref. 56 - Was 6658300 - A

54

RELIEF VALVE NLA - 5000 PSI (345 bar) for Pump Model 4355064 & 4355063 - Order Ref. 56 - Was 6658300 - A

55

6670684

CHECK VALVE

56

6670685

RELIEF VALVE Was 6689601 - A

57

6671516

KIT, SEAL See Illustration HYDROSTATIC PUMP/ B20049 INCLUDES REF. 2, 3, 12, 41 & 49 - On This Page REF. 7, 9, 13, 34, 35, 42, 43, 45, 46 & 50 - WAS 6658092 - A

Выбрано товаров: 64
