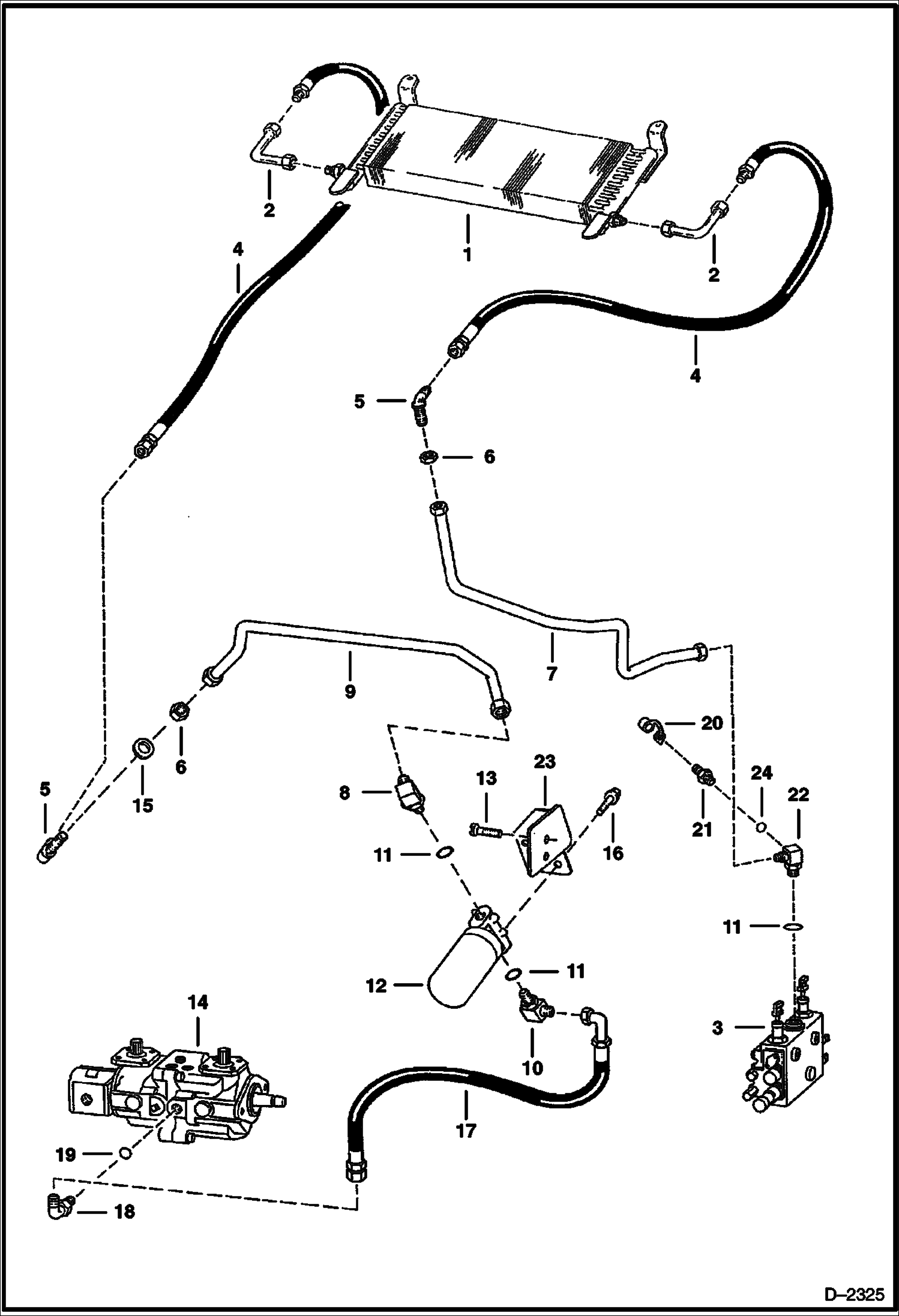

Запчасти Bobcat 700s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6661238

OIL COOLER

2

6703012

TUBE

3

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B20046 HYD. CONTROL

4

6654205

HOSE

5

88F8

FITTING

6

86F8

NUT 5

7

6708748

TUBE

8

6704696

ELBOW W/Ref. 11

9

6709736

TUBE

9

6709736

TUBE

9

6712652

TUBE

9

6712652

TUBE

10

6704164

ELBOW W/Ref. 11

11

79K12

O RING 10 flat boss face

11

99K12

O RING tapered boss face

12

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818

12

6661334

FILTER ASSY

13

84G3712

BOLT 5

14

35C610

BOLT 5

15

PUMP See Illustration HYDROSTATIC PUMP/ D1979

16

6713873

WASHER

17

6709167

HOSE

17

6709167

HOSE

17

6531336

HOSE

17

6531336

HOSE

18

17KB1210

FITTING, HYD ELBOW Was 6714901 - A

19

79K10

O RING 10

20

6630367

CAP

21

6630168

COUPLER diagnostic - W/Ref. 8

22

6715653

TEE flat boss face - W/Ref. 11 - Was 6704158 - A

22

6715653

TEE tapered boss face - W/Ref. 11

22

97K12

O'RING flared end

23

6708920

MOUNT

23

6708920

MOUNT

23

6712651

MOUNT

23

6712651

MOUNT

24

79K6

O RING 10
