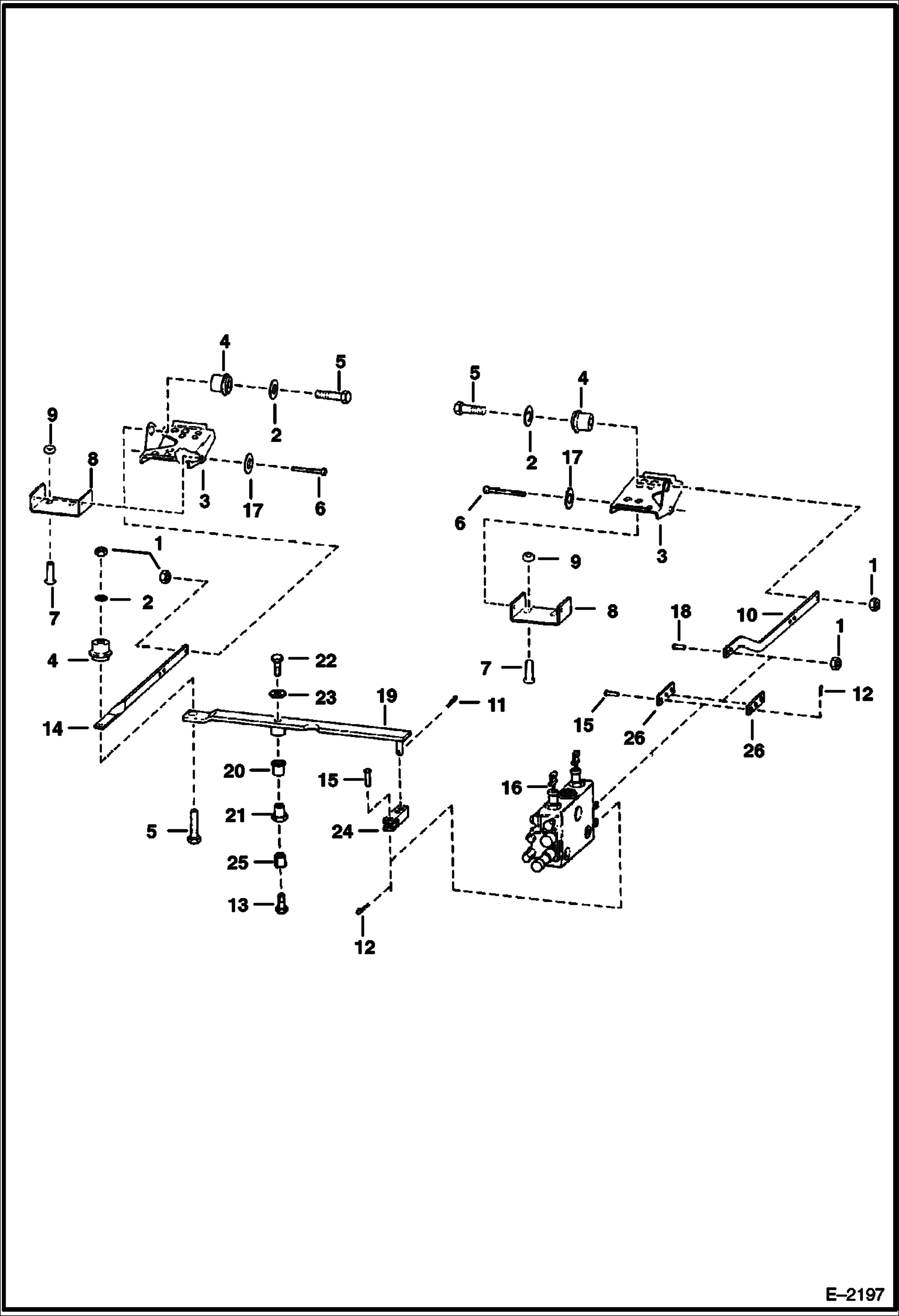

Запчасти Bobcat 700s CONTROL PEDALS HYDRAULIC SYSTEM

1

95D6

NUT Was 91D000006B - A

2

6563914

WASHER

3

7115219

PEDAL Was 6726680 - A

4

6665701

BUSHING, PRESS FIT

5

17C624

BOLT 5

6

6564657

PIN

7

7C620

BOLT Was 6704349 - B

8

6726679

MOUNT Was 6564658 - A

9

57D6

NUT 5

10

6577813

BAR

11

1306637

CLIP cotter

12

6513495

COTTER PIN cotter

13

6708009

LINK Was 6706680 - A

14

6576302

BAR

15

6564654

PIN

16

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B20046

17

25E21

WASHER 5 Use if serrations on pins are too long

18

17C620

BOLT

19

6706103

LEVER

20

6512026

BUSHING

21

6706104

RETAINING NUT

22

17C612

BOLT 5

23

619021

WASHER, 5

24

6706105

YOKE

25

6544654

BUSHING space

26

35C612

BOLT Was 31C000612B - A
