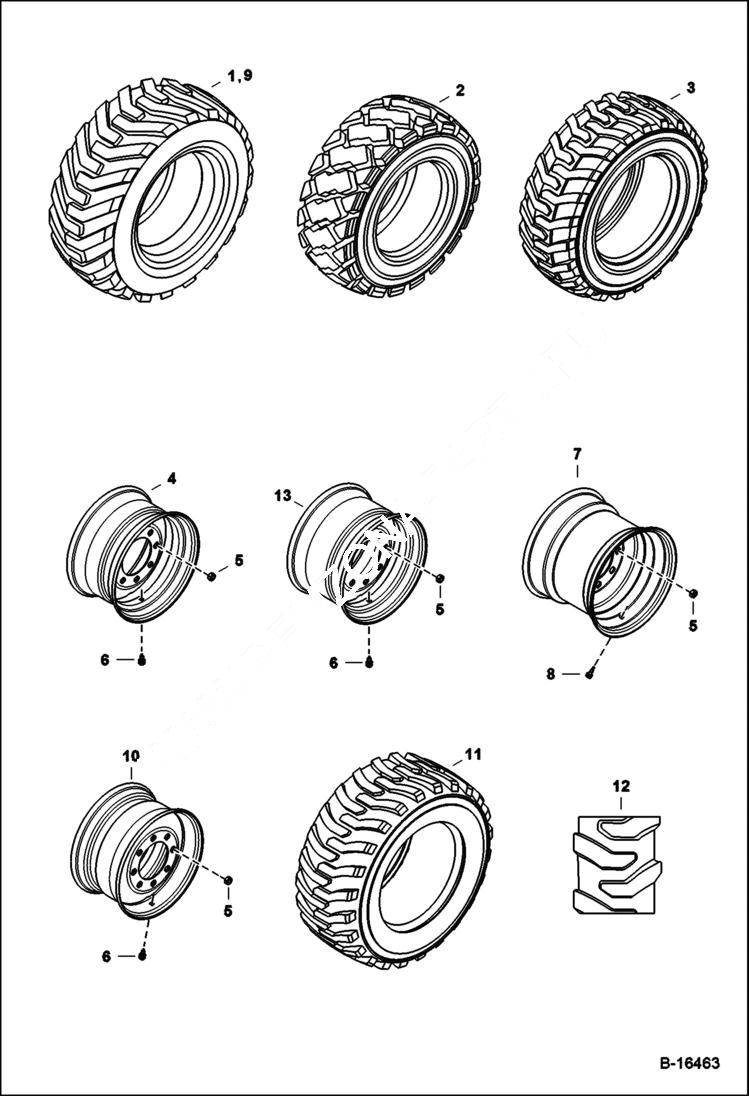

Запчасти Bobcat 700s TIRES & RIMS (Pneumatic Tire) ACCESSORIES & OPTIONS

1

TIRE NLA - 10.00-16.5, 6-Ply Rating - factory option - Firestone - Order Ref. 3 (6729896 tire) - Was 6646601 - A

1

TIRE 10.00-16.5, 8-Ply Rating - factory option - Dico - heavy duty - Order Ref. 3 (6729896 tire) - Was 6667889 - A

2

6730106

TIRE, SEVERE DUTY 31X10X16.5, 10 PLY factory option - Bobcat

3

TIRE NLA - 10.00-16.5, 8 ply - factory option - Bobcat - heavy duty - Order Ref. 3 (6729896 or 6729900 tire) - Was 6661287 - A

3

6729896

TIRE, STANDARD 31X10X16.5, 8 PLY factory option - Bobcat - Was 7101734 - A

3

6729900

TIRE, HEAVY DUTY 31X10X16.5, 10 PLY factory option - Bobcat

3

6729900

TIRE, HEAVY DUTY 31X10X16.5, 10 PLY factory option - Bobcat - Was 7101735 - A

4

7232566

WHEEL, RIM 16.5X8.25 See BTI197ldr - Use W/Ref. 1 & 3 - Was 6730771 - A

5

6564669

NUT, 10 wheel

6

1614765

VALVE STEM, TIRE tubeless tire

7

6658846

WHEEL, RIM 15X13 Use W/Ref. 2

8

6591447

VALVE STEM, TIRE Use W/Ref. 7

9

TIRE NLA - 10 x 16.5 bar lug flotation - factory option - Dico

10

7232568

WHEEL, RIM 16.5X8.25 See BTI197ldr - inverted - Use W/Ref. 3 for 1524 mm (60'') width - Was 6730775 - A

11

TIRE NLA - 31.5 - 13 x 16.5 - factory option - Galaxy - Was 6729035 - A

11

TIRE NLA - 31.5 - 13 - 16.5 - 10 ply - factory option - Bobcat - super float - Was 6730107 - A

11

TIRE NLA - 31-15, 8 Ply Rating - terra grip - factory option - Goodyear - Was 6513971 - A

11

TIRE NLA - 31-15.5, 8 Ply Rating - ultra tread grip - factory option - Goodyear - Was 6666668 - A

12

6988143

TIRE, NON-DIRECTIONAL 10X16.5-12 PLY EF

12

6988500

TIRE, EARTHFORCE 10X16.5 - 8 PLY

12

7024212

TIRE, HEAVY DUTY 10X16.5, 12 PLY EF

13

7232567

WHEEL, RIM 16.5X9.75 See BTI197ldr - Use with 12 x 16.5 - Was 6730772 - A
