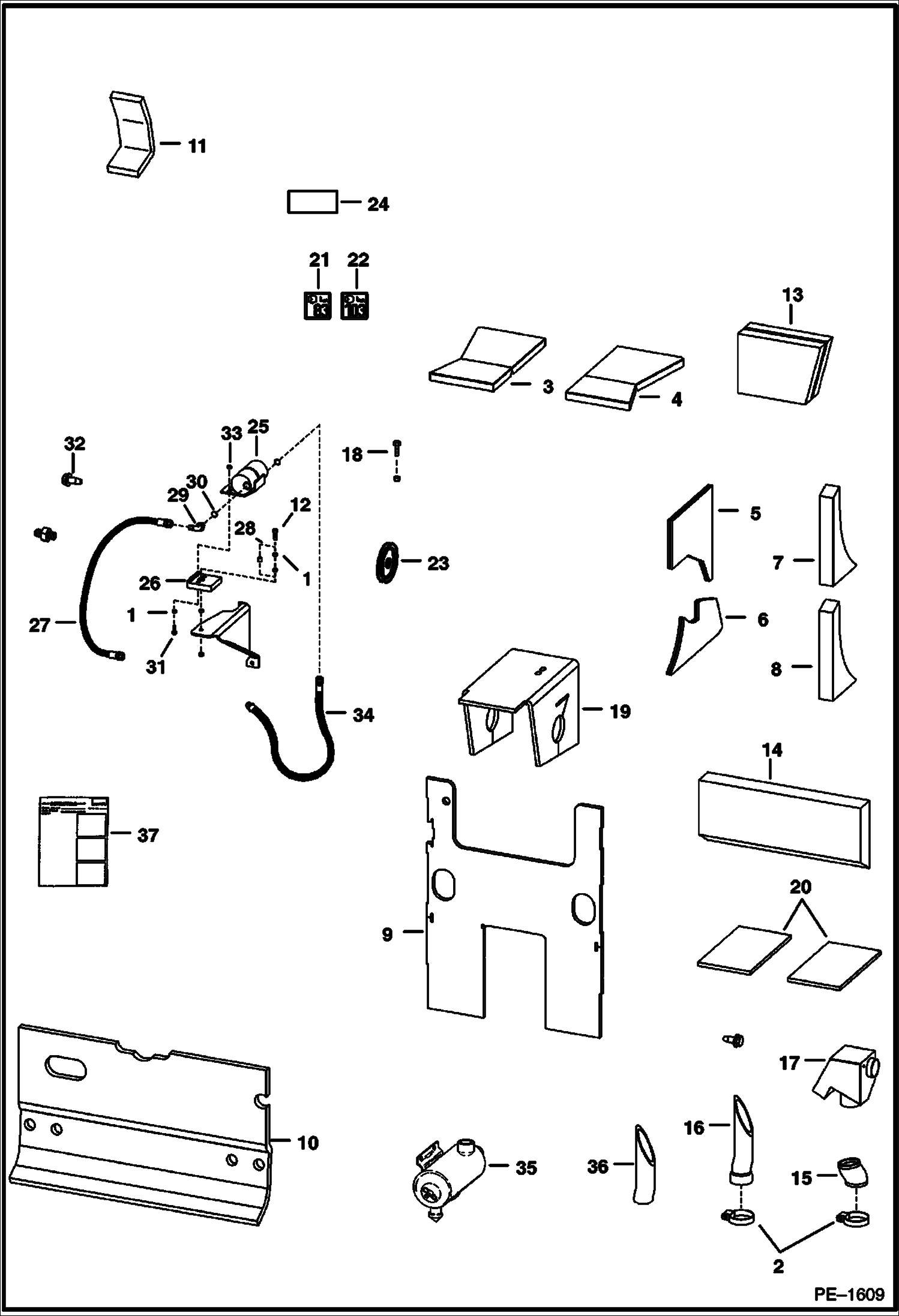

Запчасти Bobcat 700s SOUND OPTION ACCESSORIES & OPTIONS

1

6562619

BUSHING

2

42H52

CLAMP Use W/Ref. 15 & 16

2

42H44

HOSECLAM5 Use W/Ref. 15 & 16

3

6732722

INSULATION cross member - L.H. - Was 6704721 - A

4

6732723

INSULATION cross member - R.H. - Was 6704722 - A

5

6719332

INSULATION blower housing

6

6704769

INSULATION blower housing

7

6705849

INSULATION brace

8

6705850

INSULATION brace

9

6725316

INSULATION transmission

10

6715106

INSULATION rear door

11

6703331

INSULATION air inlet

12

84G3112

BOLT 5 5/16 x .75''

13

6705848

INSULATION transmission

14

6719372

INSULATION steering panel

15

HOSE NLA - air cleaner - Order Ref. 35 - Was 6715240 - A

16

HOSE NLA - intake - Order Ref. 35 - Was 6715239 - A

17

MUFFLER NLA - intake - Order Ref. 35 - Was 6715250 - A

18

84G3716

SCREW 5

19

6715371

INSULATION transmission

20

6715372

INSULATION pedal

21

6579399

DECAL sound level warning - 83 db

22

6579403

DECAL sound level warning -103 db

23

6712970

PULLEY 4.75 in. (120,7 mm) O.D.

23

6712971

PULLEY 5.00 in. (127 mm) O.D.

24

6715428

DECAL

25

6659982

MUFFLER hyd.

26

6705333

MOUNT rubber

27

6729144

HOSE Was 6707231 - A

28

6715744

BUSHING

29

ELBOW NLA - W/Ref. 30 - tapered boss face - Was 17KV00008B - A

29

97K12

O'RING flared end

29

17KB1212

FITTING, HYD ELBOW W/Ref. 30 - flat boss face

30

99K12

O RING tapered boss face

30

79K12

O RING 10 flat boss face

31

35C616

BOLT 5

32

84G3724

BOLT

33

85D6

NUT, 5

34

6729154

HOSE, HYD ASSY Was 6729147 - B

35

6735285

AIR CLEANER internal choke holder

36

6735349

HOSE formed - Use W/Ref. 36

37

6901003

INSTRUCTIONS
