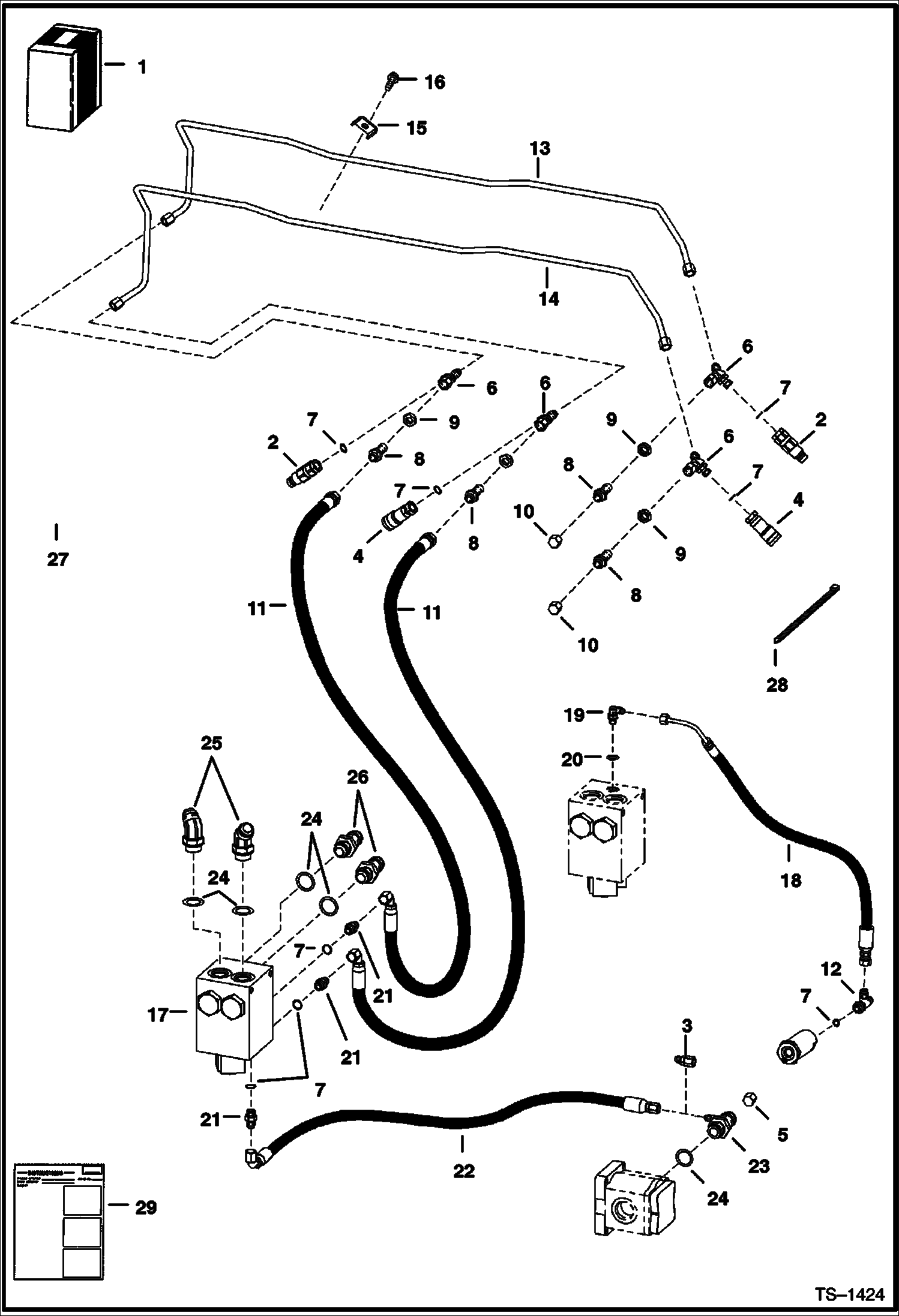

Запчасти Bobcat 700s REAR AUXILIARY KIT ACCESSORIES & OPTIONS

1

KIT SALES - SEE NOTE

2

6667804

COUPLER, FF MALE

2

6669657

SEAL KIT

3

CONNECTOR NLA - europe - W/Ref. 7 - Tapered boss face - Was 6804359 - A

3

15KB0406

FTG HYD S CONNECTOR W/Ref. 7 - flat boss face

4

6667803

COUPLER, FF FEMALE

5

36K5

CAP

6

6706220

TEE W/Ref. 7 - Check Boss Face to Determine Correct Replacement O-Ring

7

99K6

O RING Tapered Boss Face

7

79K6

O RING 10 Flat Boss Face

8

51E0404

ADAPTER

9

61E04

NUT

10

63E04

CAP

11

6706089

HOSE

12

13K5

TEE W/Ref. 7 - Was 17KV00005B W/Ref. 7 - Was 13KN00005B - A

12

97K6

O RING flared end

13

6718570

TUBE

14

6718571

TUBE

15

6500989

CLAMP

16

84G3716

SCREW 5 Was 84G003712B - B

17

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362

18

6727108

HOSE Was 6711681 - B

19

17KB0404

FTG HYD ELBOW 90 W/Ref. 20 - Was 17KV00003B - A

19

97K4

O'RING flared end

20

99K4

O'RING

21

15KB0606

FITTING, HYD CONNECTOR W/Ref. 7

21

97K6

O RING flared end

22

6702962

HOSE

23

6704693

TEE W/Ref. 24 - Check Boss Face to Determine Correct Replacement O-Ring

23

6715653

TEE W/Ref. 24 - Europe - Check Boss Face to Determine Correct Replacement O-Ring

24

79K12

O RING 10 flat boss face

24

99K12

O RING tapered boss face

25

18KB1212

FITTING, HYD ELBOW W/Ref. 24 - Was 18KV00008B - A

25

97K12

O'RING flared end

26

45K8

ADAPTOR Was 45KN00008B - A

26

97K12

O'RING flared end

27

6718645

HARNESS

28

6624289

STRAP, TIE

29

6901221

INSTRUCTIONS Was 6901009 - A
