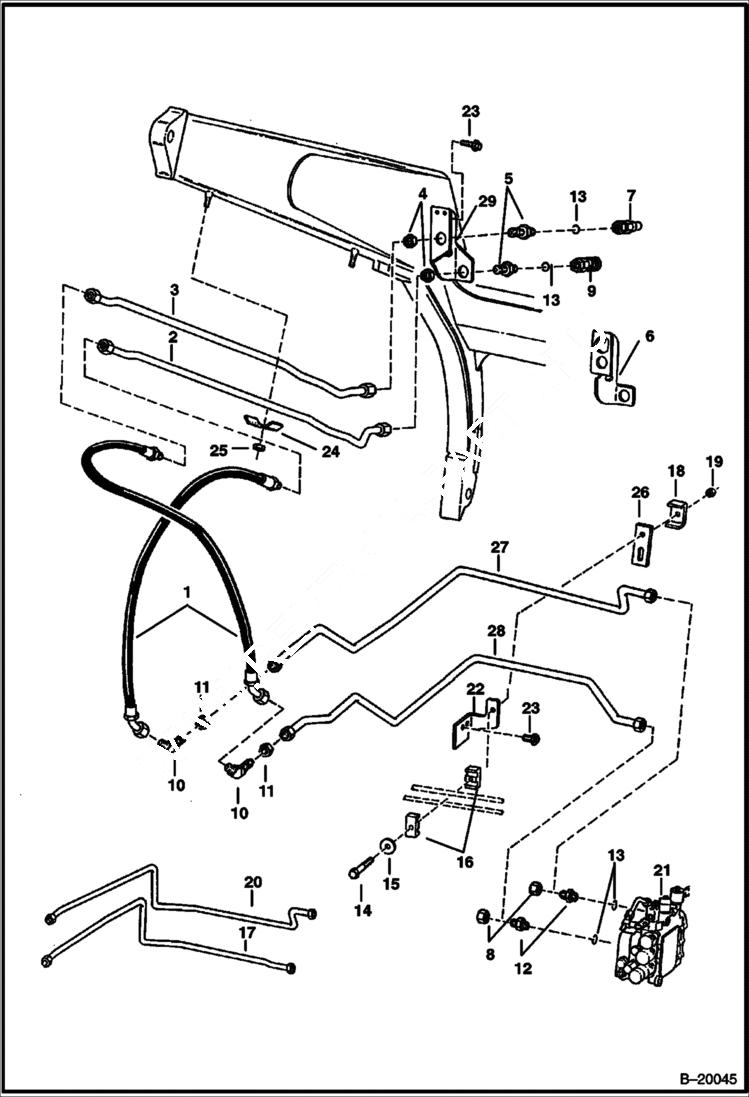

Запчасти Bobcat 700s AUXILIARY HYDRAULICS (S/N 5147 13000 & Above & 5149 11453 & Above) HYDRAULIC SYSTEM

1

6729153

HOSE Was 6714577 - A

2

6711735

TUBE

3

6711736

TUBE

4

86F7

LOCK NUT

5

ADAPTER NLA - W/Ref. 13 - Tapered boss face - Was 6711625

5

6812816

ADAPTER W/Ref. 13 - Flat boss face

6

MOUNT NLA - Order Ref. 29 - Was 6711672 - A

7

6674688

COUPLER, FF MALE straight - Was 6667808 - A

7

6679841

SEAL Was 6672026 - A

8

36K8

CAP Use W/O Front Aux. Hyd.

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

10

46K8

ELBOW

11

86F8

NUT 5

12

15K8

FITTING W/Ref. 13 - flat boss face

12

15KB1212

FITTING, HYD CONNECTOR W/Ref. 13 - tapered boss face - Was 15KV00008B - A

12

97K12

O'RING flared end

12

15KB1212

FITTING, HYD CONNECTOR W/Ref. 13 - Flat boss face

13

79K12

O RING 10 flat boss face

13

99K12

O RING tapered boss face

14

17C552

BOLT

14

17C532

BOLT 5 Use W/O Front Aux. Hyd.

15

872229

WASHER

16

6701892

CLAMP

17

TUBE NLA - Order Ref. 27 & 28 - Was 6710579 - A

18

6568476

CLAMP

19

91D5

NUT 5

20

TUBE NLA - Order Ref. 27 & 28 - Was 6710575 - A

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B20046

22

6704619

MOUNT

23

84G3112

BOLT 5

24

6502203

CLAMP

25

59D6

NUT

26

6702548

PAD

27

6713754

TUBE

28

6713755

TUBE

29

6713850

MOUNT
