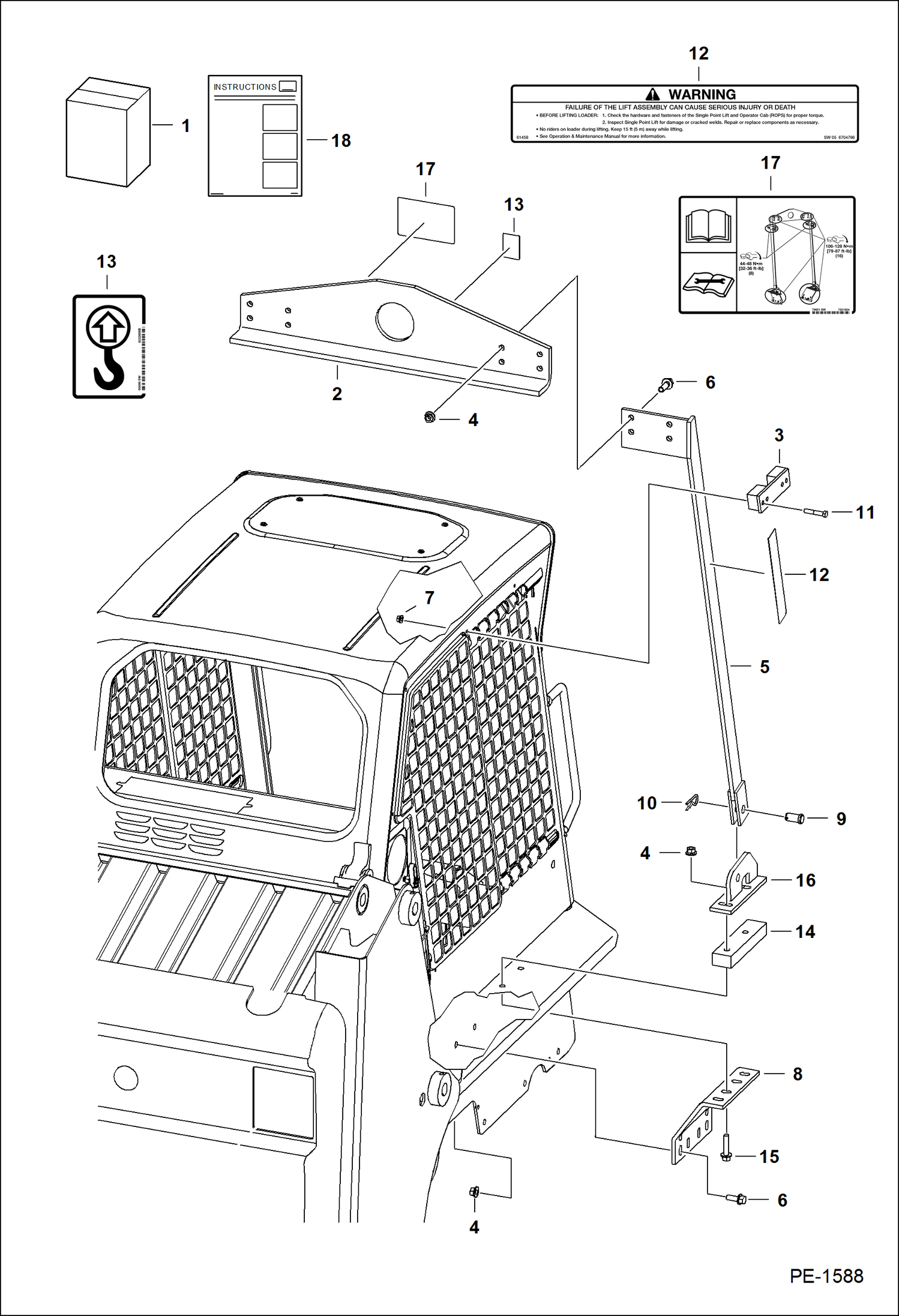

Запчасти Bobcat 700s LIFT KIT (Single Point) ACCESSORIES & OPTIONS

1

6719323

KIT, LIFT SINGLE POINT Ref. 2-18

2

6567827

ANGLE

3

6719184

MOUNT LH

3

6719185

MOUNT RH

4

31C824

BOLT 10

5

BRACKET NLA - R.H. - Was 6704146 - A

5

6725299

BRACKET LH

5

BRACKET NLA - L.H. - Was 6704147 - A

5

6725300

BRACKET RH

6

57D8

NUT 10

7

57D6

NUT 5

8

6704149

BRACKET

9

6567838

PIN

10

1320075

PIN, COTTER

11

17C632

BOLT 5

12

6704786

DECAL, WARNING check before lifting - not in kit

12

7168020

DECAL, WARNING no text

13

6533898

DECAL hook

14

SPACER NLA - Was 6719324 - A

15

31C844

BOLT .5 x 2.75'' - Was 31C-841 - B

16

BRACKET NLA - Was 6704151 - A

16

6725297

BRACKET Use W/Ref. 5

17

7201904

DECAL, SERVICE

18

6900888

INSTRUCTIONS
