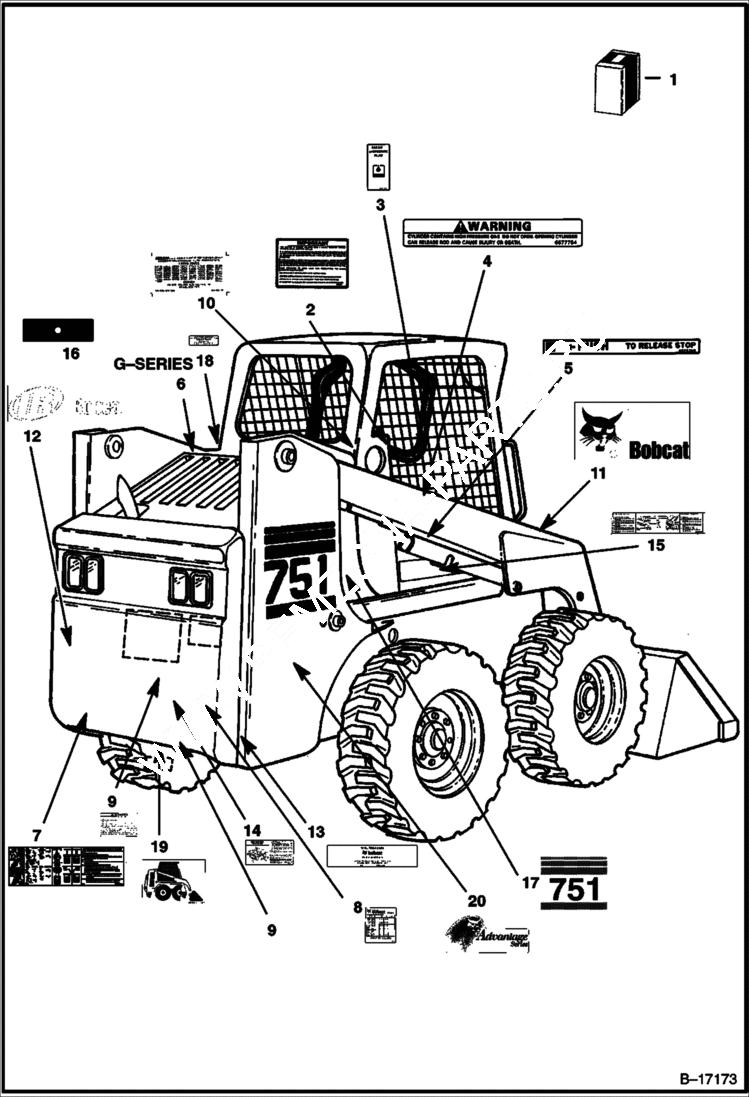

Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

6901065

KIT decal

1

6725366AR

KIT decal

1

6725366BR

KIT decal

1

6725366JP

KIT decal

1

6725499AR

KIT translation

1

6725499BR

KIT translation

2

6560573

DECAL spark arrestor

3

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

4

6577754

DECAL, WARNING 5 gas spring

5

6578368

DECAL, OPERATION push to release stop

6

6717907

DECAL ''G''-Series

7

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6728327 - A

8

DECAL NLA - Operations - Order Ref. 7 - Was 6718703 - A

9

6734534

DECAL, SERVICE warning/service schedule/ service parts - Was 6718398 - A

10

DECAL NLA - patent - Was 6557224 - C

11

6727309

DECAL, LOGO RH RH - Was 6702826 - A

11

6727308

DECAL, LOGO BOBCAT LH - W/Bobcat head - not in kit - Was 6702827 - A

12

DECAL NLA - Logo - Was 6727311 - A

13

6565200

DECAL, FILTER

14

6709030

DECAL belt tension - spring loaded idler

15

6706558

DECAL, OPERATION lift arm support

16

6714242

DECAL

17

6714531

DECAL model no. - 751

18

6708929

DECAL, COOLANT propylene glycol

19

6727595

DECAL Was 6595014 - A

20

6718272

DECAL advantage series - R.H. - 14''(355,6 mm) wide - Not in Kit
