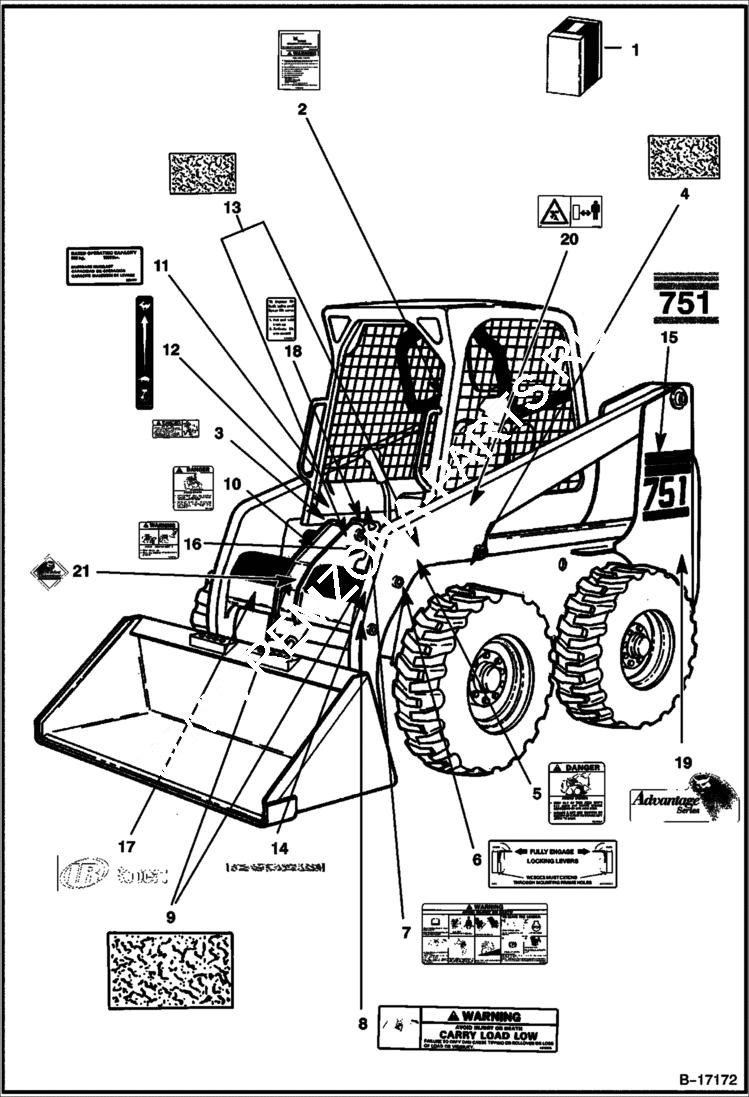

Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

6901065

KIT decal

1

6725366AR

KIT decal

1

6725366BR

KIT decal

1

6725366JP

KIT decal

1

6725499AR

KIT translation

1

6725499BR

KIT translation

2

6718719

HANDBOOK, OPERATOR'S W/WIRE ROPE not in kit - Was 6737783 - A

2

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

2

6558310

SLEEVE wire rope

2

17C512

BOLT 5

2

61D5

NUT

3

6717343

DECAL, DANGER

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6579639

DECAL danger

6

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

7

6728539

DECAL Was 6718698 - A

8

6579528

DECAL, WARNING carry load low

9

6577947

SAFETY TREAD 190,5 x 381 mm (7.5 x 15'')

10

6579509

DECAL danger

11

6725527

DECAL capacity - 763 - Was 6714918 - A

12

6735140

DECAL, THROTTLE Was 6557565 - A

13

6577949

SAFETY TREAD 6.8 in. x 8.75 in. - (172,7 mm x 222,3 mm)

14

6710746

SAFETY TREAD 1.25 in. x 15 in. (31,8 mm x 381,0 mm)

14

6727917

SAFETY TREAD 32 x 267 mm (1.25 x 10.5'')

15

6714531

DECAL model no. - 751

16

6710358

DECAL warning

17

DECAL NLA - Ingersoll Rand - Was 6727310 - A

18

6711840

DECAL lift lock

19

6718271

DECAL advantage series - L.H. - 14 in. (355,6 mm) wide - Not in Kit

20

6713507

DECAL stay clear -European - Not in Kit

21

6718275

DECAL advantage logo
