Запчасти Bobcat 700s CAB DOOR ACCESSORIES & OPTIONS

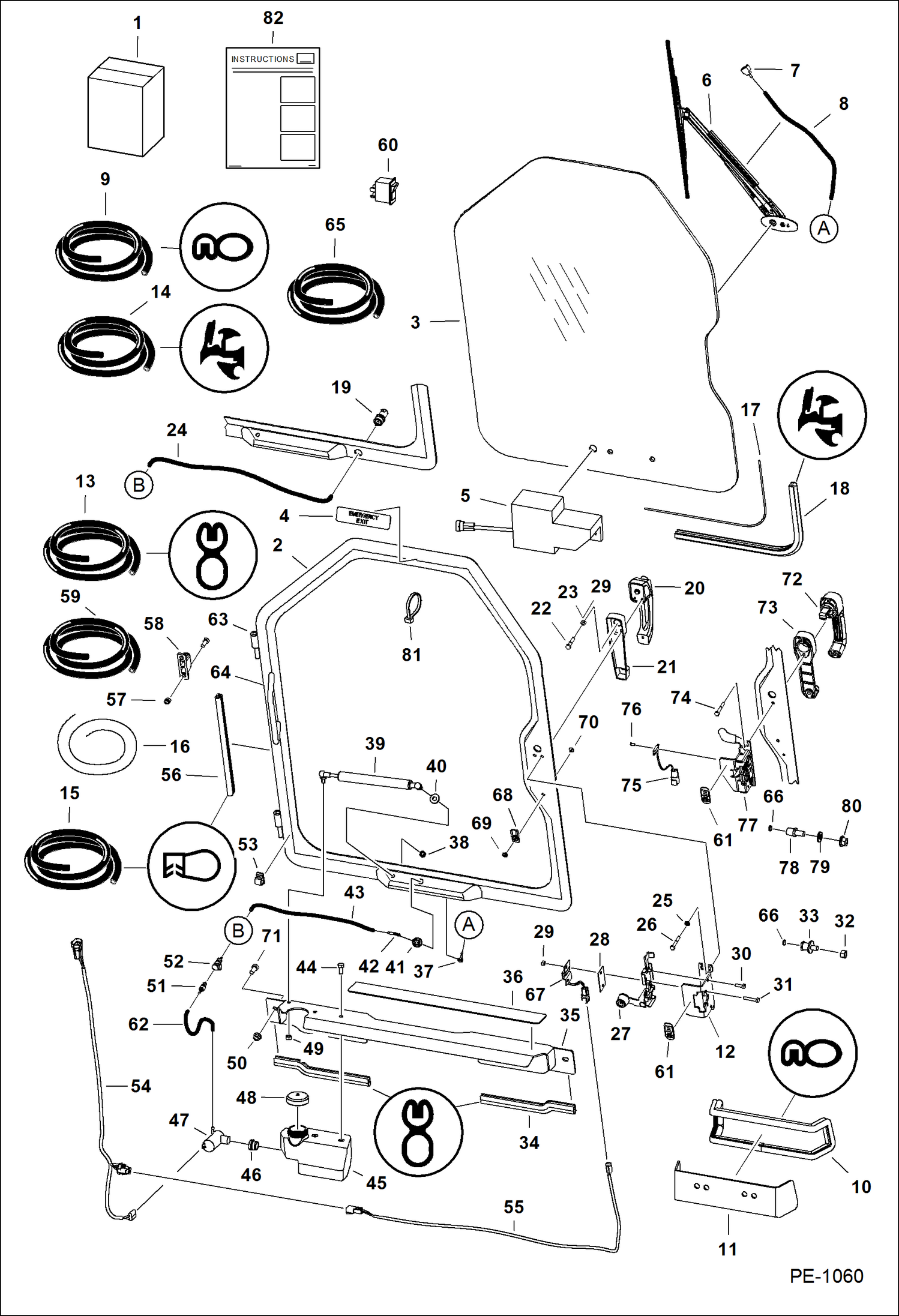

Схема запчастей Bobcat 700s - CAB DOOR ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6718808

KIT door - Ref. 2-19, 34-66 & 68-81 - For loaders W/standard cab, Also Order Deluxe Cab Kit - Was 6718807 - B,D

2

DOOR See BTI369 NLA - Uses 3 bolt mount handle - .5'' longer than NLA 6726435 door & 7109665 door - Was 6717590 - A

2

DOOR See BTI369 NLA - Uses 3 bolt mount handle - .5'' shorter than NLA 6717590 door - Was 6726435 - A

2

7109665

FRAME, DOOR CAB .5'' shorter than NLA 6717590 - Uses 2 bolt mount handle - W/Ref. 63 & 64 - Also Order Ref. 4

3

WINDOW NLA - .25'' thick glass W/ .77'' wiper motor shaft hole - Order 6729776 - Was 6717360 - A

3

6729776

WINDOW, DOOR CURVED CAB 0.25'' thick glass - W/ 25,4 mm (1'') dia wiper motor shaft hole

4

6707852

DECAL, EXIT emergency

5

MOTOR - wiper

6

ARM - wiper

7

NOZZLE - wiper arm mounted

8

HOSE

9

6555351

SEAL bulk - sold per foot

10

SEAL NLA - 40'' (1016mm) long - Order Ref. 9

11

6725200

PLATE

12

6717369

BRACKET for 3 bolt mount latch

13

6513152

SEAL bulk - sold per foot

14

6665568

EXTRUSION bulk - sold per foot

15

7011039

SEAL, BULK/FT 34 sold per foot - Was 6675558 - A

16

6554149

CORD, BULK/FT bulk - sold per foot

17

CORD NLA - window - 113.3'' (2878mm) - Order Ref. 16 - Also Order Ref. 81

18

SEAL NLA - window - 113.3'' (2878mm) - Order Ref. 14

19

6664555

NOZZLE washer

20

HANDLE See BTI370 - NLA - 3 bolt mount - Was 6674667 - A

20

KEY NLA - ignition & rear door - includes two keys W/ring - Order 6693241- Was 6709527 - A

20

6693241

KEY 10 ignition - single key W/O ring

21

SPACER See BTI370 - NLA - 3 bolt mount - Was 6717146 - A

22

17C420

BOLT for 3 bolt mount

22

1CM630

BOLT for 3 bolt mount handle

23

61D4

NUT 5 grade 5 - Use W/Ref. 22

24

HOSE NLA - 25.25 in (641,4 mm) long - Order Ref. 59 - A

25

6EM60

WASHER, SPRING Use W/Ref. 26

26

1CM640

SCREW for 3 bolt mount handle

27

LATCH See BTI370 - NLA - 3 bolt mount - Was 6674666 - A

28

6718520

COVER latch

29

1DM6

NUT For 2 bolt mount handle - Was 4DM6 - A

30

1CM620

BOLT Use W/Ref. 27

31

4CM635

BOLT Use W/Ref. 27 - Was 1CM00635B - B

32

91D7

NUT 7/16'' thread - Use W/Ref. 33 (NLA 6677194 striker bolt)

33

BOLT NLA - striker - 7/16'' thread - Order Ref. 78 (7109664 striker), Ref. 80 (51DM12 nut) & Ref. 79 (18EM1224 washer) - Was 6677194 - A

34

SEAL NLA - threshold - 11'' (279mm) - Order Ref. 13

35

6725042

SHIELD

36

6542731

SAFETY TREAD

37

6676500

ELBOW

38

46D5

NUT acorn

39

7157893

GAS SPRING Was 6682586 - A

39

6678548

SOCKET ball

39

6649244

BALL STUD

39

6649245

RETAINER spring

40

25E16

WSHR

41

6676499

GROMMET wiper

42

6676917

ELBOW

43

HOSE NLA - 18.25'' (464mm) long - Order Ref. 59

44

17C512

BOLT 5 .3125 in. dia - Use (2) W/Ref. 45 (NLA/6730830 tank) & (4) W/Ref. 58

44

35C408

BOLT .25 dia. - Use W/Ref. 45 (NLA/6736875 tank & 7133211 tank)

45

TANK NLA - Washer - Order 7133211 tank & (2) Ref. 44 (35C-408 bolt) - Was 6730830 - A

45

7133211

TANK, WASHER Was 6736875 - A

46

6666766

GROMMET

47

6664554

PUMP, WIPER WASHER

48

6674993

CAP vented

49

61D5

NUT

50

61D6

NUT 5

51

6675299

COUPLER insert

52

6675298

COUPLER, BODY body

53

6675378

CLIP wire - W/adhesive back - Use W/doors W/O welded-on retainers

54

6718295

HARNESS wiper - W/ 18'' (455mm) long 3-pin connector extension - Use W/NLA (6668137 ) motor

54

HARNESS NLA - wiper - Use W/6677835 motor - Order 7106277 - Was 6729739 - A

54

HARNESS NLA - wiper - Use W/6677835 motor - Order 7104465 harness & 7106277 harness - Was 6730885 - A

54

7106277

WIPER HARNESS wiper

55

7104465

DOOR SWITCH HARNESS door sensor

56

SEAL NLA - 127.3'' (3233mm) - Order Ref. 15

57

59D5

NUT 5

58

6717593

HINGE base

59

6676003

HOSE, BULK/FT black - 0.109'' ID - sold per foor

60

6665707

SWITCH front wiper

61

DECAL, SAFETY NLA - door sensor - Was 7110316 - A

62

HOSE NLA - washer - 4.25'' (108mm) long - Order Ref. 65

63

6718376

HINGE door

64

7138347

HANDLE grab - Was 6718521 - B

65

6708310

HOSE, BULK/FT 100 clear - 0.154'' ID - sold per foot

66

6677192

SENSOR, MAGNETIC

67

6731212

SENSOR door - for Ref. 27 (NLA 6674666 latch)

68

6665000

CLIP

69

6665321

RIVET male plastic

70

6665322

RIVET female plastic

71

17C612

BOLT 5

72

7109662

HANDLE, LATCH DOOR 2 bolt mount

73

7109663

SPACER 2 bolt mount

74

1CM640

SCREW for 2 bolt mount handle

75

6728459

SENSOR, DOOR Use W/Ref. 77 - Also Order (2) of Ref. 76

76

6677193

RIVET plastic

77

7109661

LATCH, DOOR W/SENSOR 2 bolt mount - W/Ref. 75

78

7109664

BOLT striker - 12 mm thread - for latch W/ sensor

79

18EM1224

WASHER Use W/Ref. 78 (7109664 striker bolt)

80

51DM12

NUT 12 mm thread

81

6610510

TIE

81

6624289

STRAP, TIE Use W/doors W/welded-on retainers

82

6900854

INSTRUCTIONS - Was 6901013 - B,D

Выбрано товаров: 97
