Запчасти Bobcat 700s CONTROLS ELECTRICAL (AHC) (W/ Push Button Float) 5157 31928 & Above, 5156 20942 & Above ELECTRICAL SYSTEM

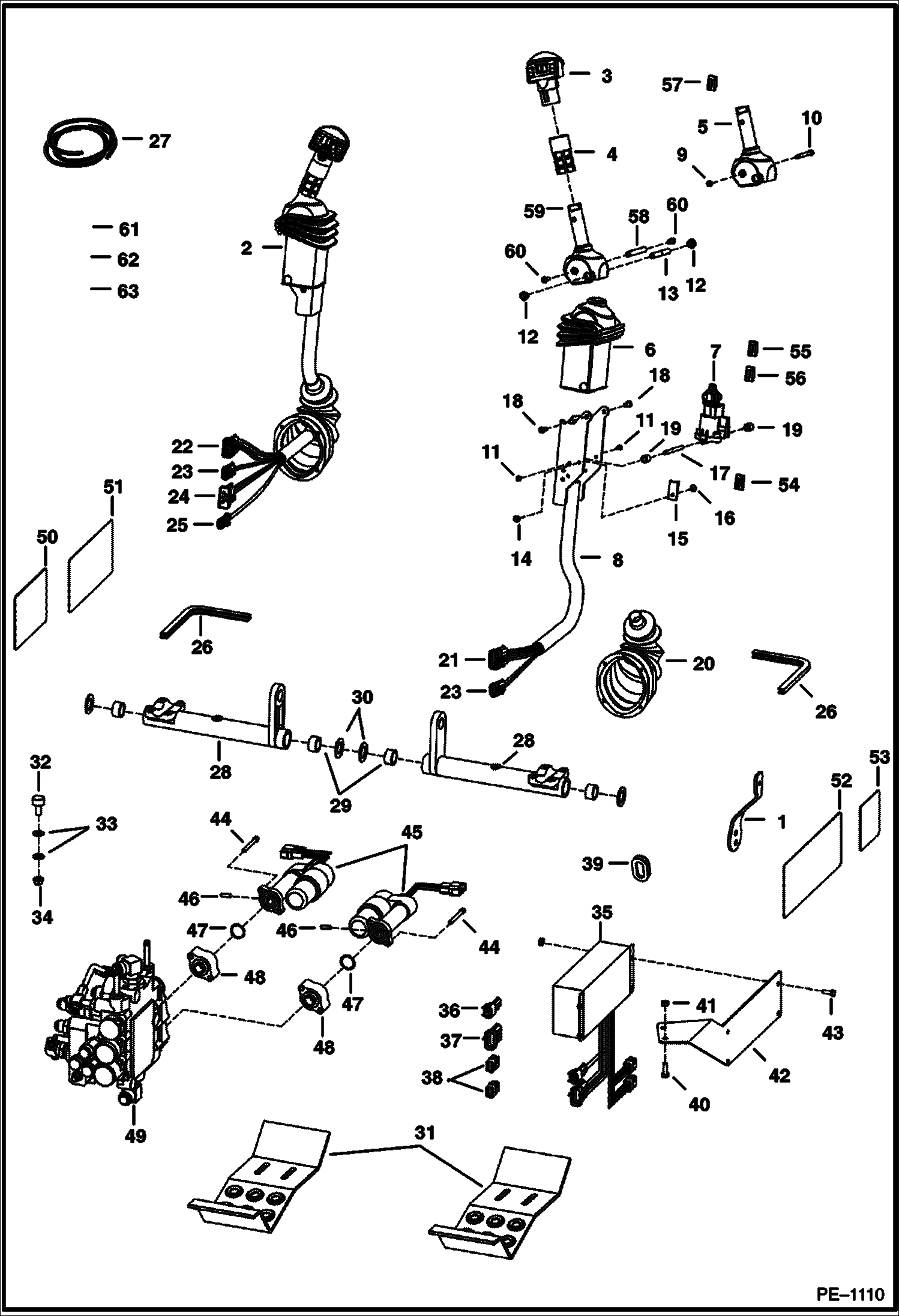

Схема запчастей Bobcat 700s - CONTROLS ELECTRICAL (AHC) (W/ Push Button Float) 5157 31928 & Above, 5156 20942 & Above ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6717393

LEVER throttle

2

6684913

LEVER tilt - RH - Was 6675742 - A

2

6684914

LEVER lift - LH - Was 6675750 - A

3

HANDLE See BTI335 NLA - Lift - R.H. - Was 6675469 - A

3

6680417

HANDLE lift - LH - Was 6675749 - A

4

GRIP NLA - Order 6702621 Grip & Cut to 2.8 in. Long - Was 6713349 - A

5

HANDLE NLA - R.H. - Order Ref. 58-60 - Was 6597774 - A

5

HANDLE NLA - L.H. - Order Ref. 58-60 - Was 6717163 - A

6

6680471

COVER Was 6713898 - A

7

6684910

SENSOR, ELEC AHC Was 6675741 - A

7

6670706

CONNECTOR

7

6670715

PIN

7

6670710

LOCK

8

6680481

CHANNEL RH - Was 6719712 - A

8

6680480

CHANNEL LH - Was 6719711 - A

9

12D10

NUT Use W/Ref. 10

10

6716826

BOLT Use W/Ref. 5

11

25GT410

SCREW

12

6702990

BUSHING

13

6713043

SPACER

14

6665321

RIVET male

15

6665000

CLIP

16

6665322

RIVET female

17

6719834

SPACER threaded

18

6727065

BOLT

19

6719835

SLEEVE

20

6532127

BOOT

21

6640692

CONNECTOR 10-pin

21

6640690

PIN

21

6640694

LOCK Use W/ 10-pin connector

21

6641176

SEAL

21

6646582

PLUG cavity

22

6640692

CONNECTOR 10-pin

22

6640690

PIN

22

6640694

LOCK Use W/ 10-pin connector

22

6641176

SEAL

22

6646582

PLUG cavity

23

6640699

CONNECTOR 3-pin

23

6640690

PIN

23

6641176

SEAL

23

6640700

LOCK

24

6667144

CONNECTOR 5-pin

24

6640690

PIN

24

6641176

SEAL

24

6646582

PLUG cavity

24

6667145

LOCK Use W/ 5-pin connector

25

6641179

CONNECTOR 2-pin

25

6640690

PIN

25

6641176

SEAL

25

6641180

LOCK Use W/ 2-pin connector

26

MOULDING NLA - 10.5 in. (266,7 mm) long - Order Ref. 27

27

6654139

MOULDING bulk - sold per foot

28

6716977

BELLCRANK

29

6673710

BEARING, NEEDLE

30

6716916

WASHER plastic

31

6712365

STEP

32

6673789

BEARING

33

25E17

WASHER 5

34

98D6

NUT

35

6676153

CONTROLLER W/ 4 Conn. Pigtail

35

6680410

CONTROLLER plastic - W/ 3-connector plug - Was 6676337 - A

36

6640692

CONNECTOR 10-pin

36

6640690

PIN

36

6640694

LOCK Use W/ 10-pin connector

36

6641176

SEAL

36

6646582

PLUG cavity

37

6648307

CONNECTOR 2-pin

38

6670709

CONNECTOR 8-pin

39

6714726

GROMMET

40

17C612

BOLT 5

41

61D6

NUT 5

42

6725165

MOUNT

43

17C412

BOLT 5

44

69G436

BOLT

45

ACTUATOR NLA - Use W/Ref. 47 (58K120 O-ring) & Ref. 48 (6725128 adapter) - Order 7104842 actuator & Ref. 48 (7101705 adapter) - Was 6678775 - A

45

ACTUATOR NLA - W/Ref. 47 (6686220 O-ring) - Use W/Ref. 48 (7101705 adapter) - Was 7103129 - A

45

7104842

ACTUATOR W/Ref. 47 (58K120 O-ring) - Use W/Ref. 48 (7101705 adapter)

46

7108236

PIN Was 6718506 - A

47

58K120

O-RING Use W/Ref. 45 (NLA/ 6678775 actuator & 7104842 actuator)

47

6686220

O-RING Use W/Ref. 45 (NLA/ 7103129 actuator)

48

6725128

ADAPTER actuator - W/ O-ring groove - Use W/Ref. 45 (NLA/ 6678775 actuator)

48

7101705

ADAPTER, ACTUATOR W/O O-ring groove - Use W/Ref. 45 (NLA/ 7103129 actuator & 7104842 actuator)

49

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17115

50

6718704

DECAL

51

6727155

DECAL

52

6728539

DECAL Was 6718699 - A

53

6718706

DECAL, WARNING raising cab

54

6670707

CONNECTOR 3-pin

54

6670715

PIN

54

6670711

LOCK

55

6677364

CONNECTOR 3-pin

55

6676640

SEAL

56

6676870

CONNECTOR 3-pin

56

6676640

SEAL

56

6670715

PIN

56

6670711

LOCK

57

6676537

SWITCH ACS

58

6729600

SPACER 2.28'' (57,91 mm) long - threaded on both ends

59

6729594

HANDLE RH

59

6729595

HANDLE LH

60

6727065

BOLT button head - 10-24UNC

61

6728742

HARNESS jumper - to enhance boom lift

62

6727129

HARNESS Was 6727130 - B

63

6729054

HARNESS W/capacitor - W/Ref. 35 (6676153 Controller)
