Запчасти Bobcat 700s ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

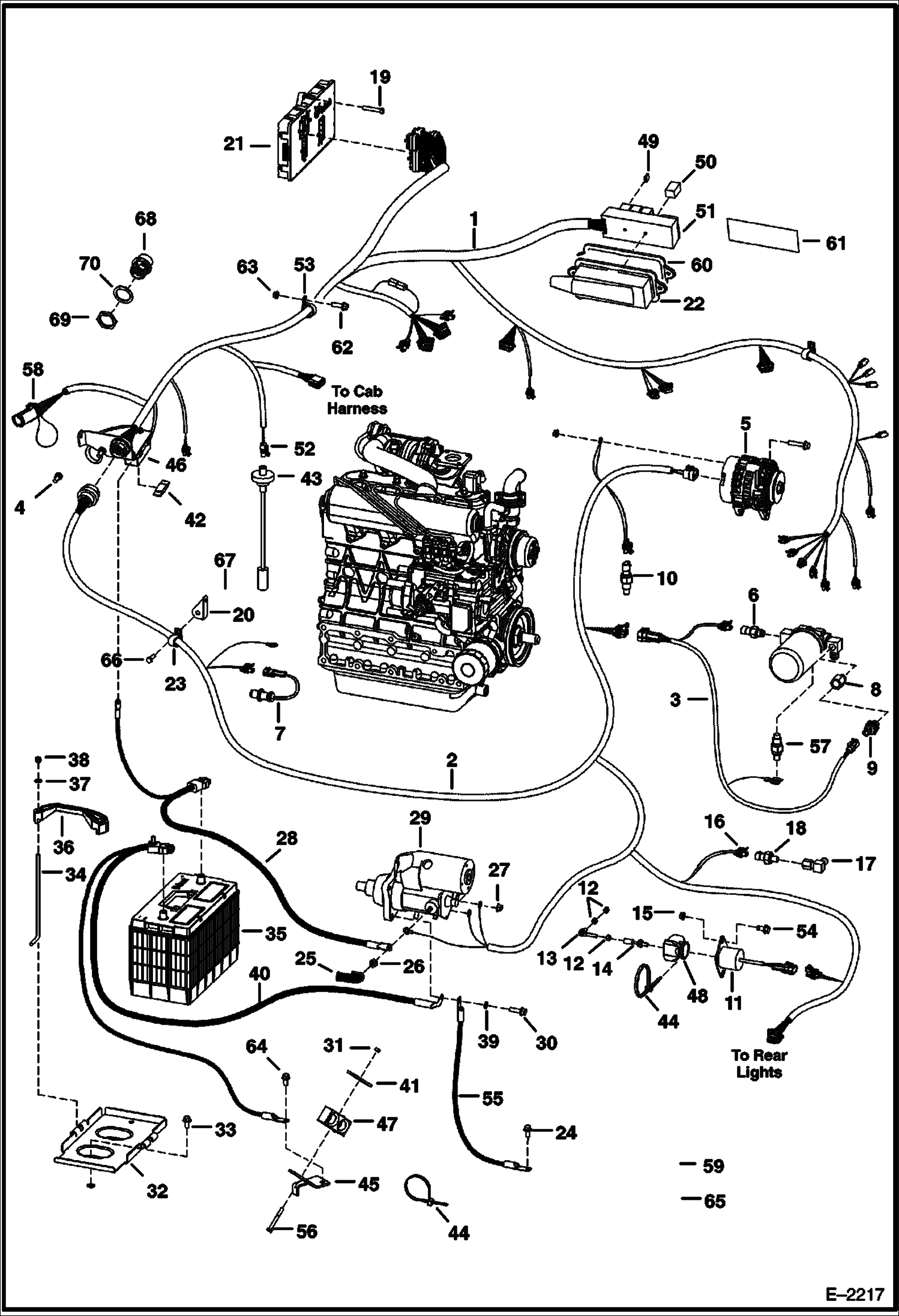

Схема запчастей Bobcat 700s - ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6719802

HARNESS, MFR See Illustration CONTROLS ELECTRICAL/ PE1041 W/ Ref. 49-51 & 53 - WAS 6719720 - A

1

6719803

HARNESS See Illustration CONTROLS ELECTRICAL/ PE1042 W/ Ref. 49-51 & 53

2

6718871

HARNESS engine - W/Ref. 20, 66 & 67

3

6715975

HARNESS filter

4

84G3712

BOLT 5

5

ALTERNATOR See Illustration ALTERNATOR/ C3312

6

6727869

SENDER,HYD TEMP Was 6718417 - B

7

6684037

SENSOR RPM - Was 6679853 - B

8

6718948

SNUBBER W/filter

8

6675278

FILTER

9

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector

10

6718415

SWITCH eng. temp.

11

6681513

SOLENOID fuel shut off - Was 6667993 - A

12

62D4

NUT

13

6578363

ROD END swivel

14

6578366

BALL JOINT

15

61D4

NUT 5

16

6672750

CONNECTOR

17

6707040

ELBOW

18

6674315

SENSOR eng oil pressure

19

43C616

BOLT Was 35C000616B - B

20

6714979

BRACKET

21

CONTROLLER NLA - Bobcat 4 Connector W/O Boost - Was 6678068 - A

21

6682421

CONTROLLER, BOBCAT 4 connector W/Boost

21

6678674

CONTROLLER Bobcat - 2 Connector W/Boost

22

6718659

HOUSING fuse - boot

23

6675171

CLAMP

24

1CM1220

BOLT

25

6560172

COVER

26

4DM10

NUT

27

4DM5

NUT

28

6719060

CABLE pos.

29

STARTER See Illustration STARTER/ D2297

30

35C620

BOLT 5

31

91D5

NUT 5

32

6718260

BATTERY PAN

33

84G3716

SCREW 5

34

6576280

BOLT

35

6674687

BATTERY, DRY 600 AMP

35

BATTERY CAP

36

6569203

CLAMP

37

25E15

WASHER

38

59D5

NUT 5

39

6E6

WASHER

40

6719059

CABLE ground

41

6675155

FUSE, 100A mega

41

6675154

HOLDER high amp fuse

42

6715132

RETAINER

43

7179839

SENSOR FUEL W/gasket - Was 6680438 - A

43

6717579

GASKET

44

6610510

TIE

45

6719230

BRACKET

46

6726503

BRACKET Was 6718970 - A

47

6715197

CLAMP

48

6664286

BOOT Also Order Ref. 44

49

6654806

FUSE, 15A

49

6702444

FUSE 25A 5

49

6718034

FUSE, 30A

50

6679820

RELAY relay - Was 6674376 - A

51

6673200

FUSE BLOCK

52

6646383

CONNECTOR fuel sender

52

6648330

TERMINAL female - Was 6632946 - B

53

6674673

CLAMP

54

17C410

BOLT 10

55

6713821

CABLE

56

6716744

BOLT

57

6660260

SWITCH Was 6674376 - A

58

6667533

COVER

59

6675096

GROMMET

60

6725302

GASKET See Illustration PANELS/ B16483

61

DECAL NLA - fuse/relay - 2.10'' x 9.40'' (53,3 mm x 238,8 mm) - Order 6718774 Decal

61

6718774

DECAL FUSE/RELAY - 2'' x 7'' (50,8mm x 177,8mm) - See Illustration PANELS/B16483

62

35C616

BOLT 5

63

95D6

NUT Was 91D000006B - A

64

57D6

NUT 5

65

30H48

CLIP

66

17C512

BOLT 5

67

85D5

NUT 5

68

6664584

CONNECTOR 21-pin

69

6664972

NUT

70

6664971

WASHER
