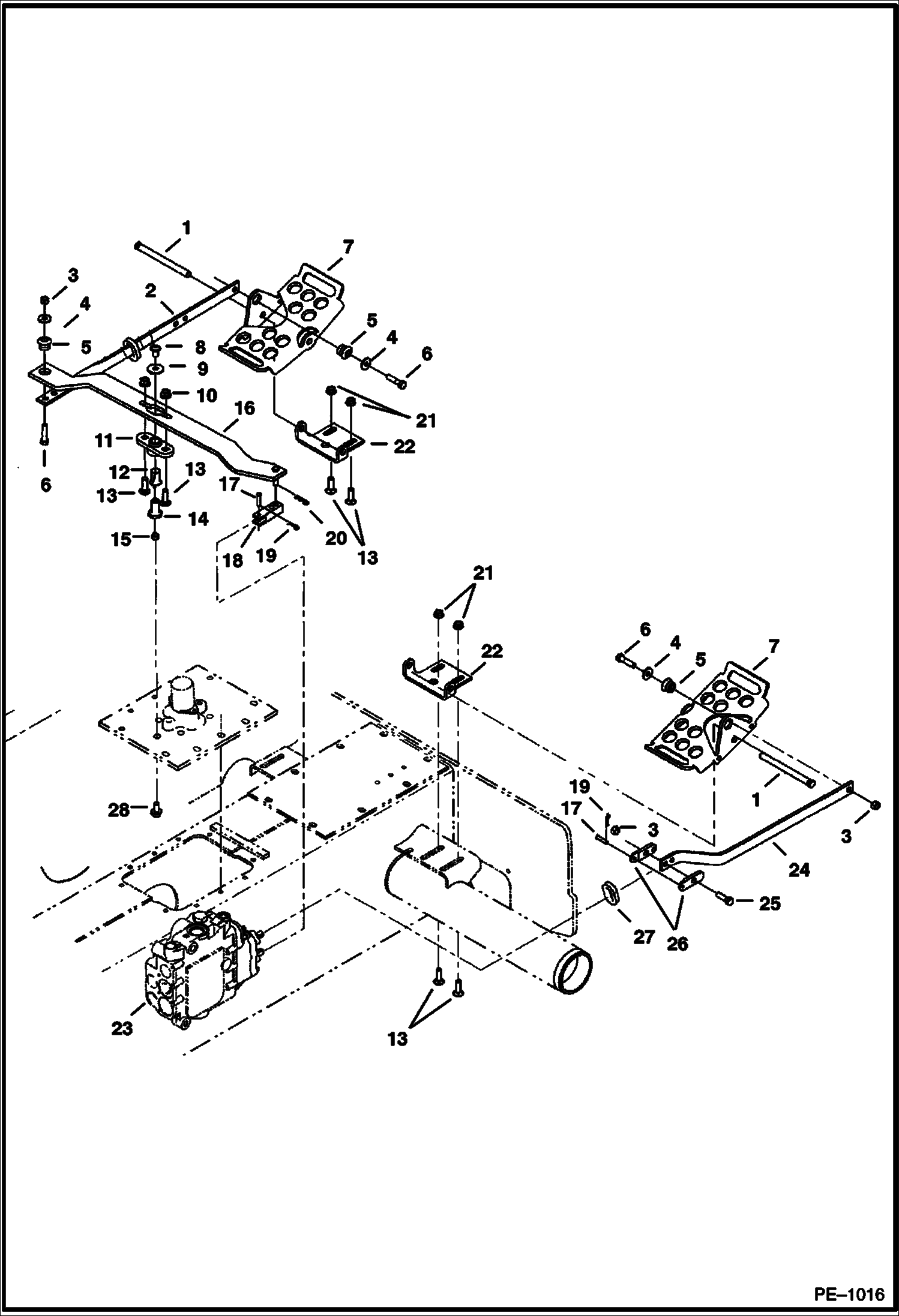

Запчасти Bobcat 700s CONTROL PEDALS HYDRAULIC SYSTEM

1

6564657

PIN

2

6576302

BAR

3

95D6

NUT

4

6563914

WASHER

5

6665701

BUSHING, PRESS FIT

6

17C624

BOLT 5

7

7115219

PEDAL Was 6726680 - A

8

6665839

BOLT Was 17C000612B - B

9

619021

WASHER, 5

10

83D6

NUT 5

11

6708043

BUSHING flange

12

6512026

BUSHING

13

37C620

BOLT

14

6706104

RETAINING NUT

15

6544654

BUSHING spacer

16

LEVER NLA - Order 6733942 Lever, 6685060 Bushing & 6737388 Washer - Was 6717822 - A

17

PIN NLA - Was 6564654 - A

18

6706105

YOKE

19

6513495

COTTER PIN

20

1306637

CLIP

21

57D6

NUT 5

22

6726679

MOUNT Was 6564658 - A

23

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17113

24

6717820

BAR Was 6577813 - A

25

17C620

BOLT

26

6708009

LINK 2.69'' (68,3 mm) long

27

6577961

GROMMET

28

35C612

BOLT
